Farpointe Data WRR-44 RANGER Quick Start Manual

QUICK START GUIDE
WRR-44 RANGER
433-MHz RECEIVER
This Quick Start Guide is intended for experienced installing technicians. It is a basic reference to ensure all connections are properly made.
Installation and wiring of systems must be in accordance with the National Electrical Code, ANSI/NFPA 70.

1.0 Introduction

Long Range Transmitters and Receivers with an integrated receive antenna comprise Farpointe Data's high frequency, long-range identification
solution known as Ranger. Intended for security access control applications, Ranger's wireless communications are based upon a secure, digital,
anti-playback routine. The four-channel Ranger Receiver (Channels A, B, C & D), model WRR-44, allows Ranger Transmitter data to be sent over
four separate Wiegand outputs. Formatting of the Wiegand output is dependent upon the data encoded on each individual Ranger Transmitter.

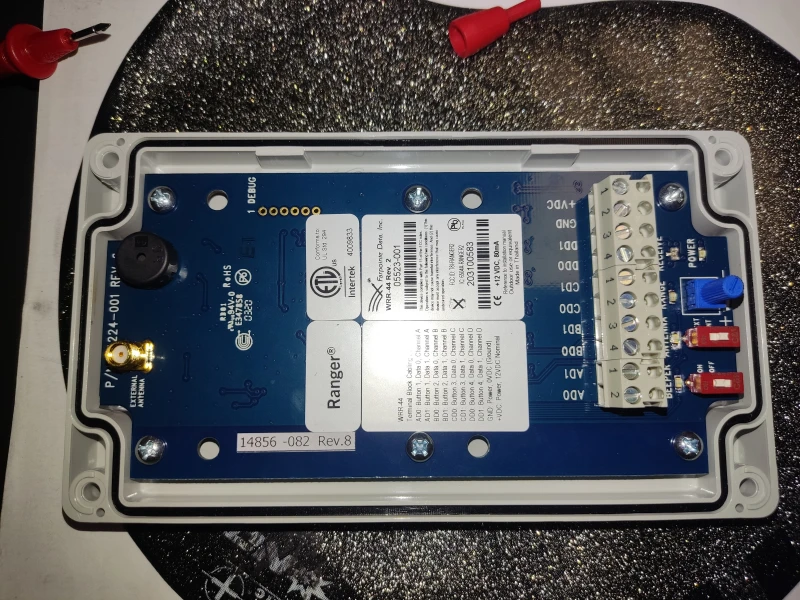

2.0 Receiver Layout

3.0 Cable Requirements

24 AWG minimum, multi-conductor stranded with an overall foil shield, for example Belden 9540 or similar. Per the SIA's Wiegand specification,
maximum cable length is 500 feet (152.4 m).

4.0 Output Formats

Wiegand (industry standard 26-bit Wiegand and custom Wiegand formats).

5.0 Grounding

Shield (drain) continuity must run from the Receiver to the access panel. Further, the shield and Receiver ground must be tied together at the
access panel, and must connect to an earth ground at one point only.

6.0 Power

Power required is 12 VDC nominal at 120mA. The Receiver may be powered by the access panel. A linear power supply is recommended for
best operation.

7.0 Mounting

The Receiver may be mounted indoors or outdoors. The base of the enclosure includes a drill template providing mounting provisions to a wall box
(standard North American and European), as well as pre-drilled holes in the four corners allowing mounting to a flat surface. Use supplied #6
mounting screws, or equivalent security screws, for installation.

8.0 Read Range Adjustment

As shipped, the Receiver is set for the maximum read range, which is nominally up to 200 feet (61 m). This may be reduced by adjusting the
range pot in the counter-clockwise direction. Additionally, for optimal read range it is important that the Receiver be mounted as far from
potential interference sources as possible. These sources may include, but are not limited to, large metal obstructions, as well as magnetic fields
and radio transmissions. Note for each installation, read range may vary.

9.0 External LED Indicator

Refer to the information below for explanation on the Receiver's external LED indicator operation:
Green: Initial power up
Amber: Normal powered on state
Flash Green: An activated Transmitter button press has been received and processed
Flash Red: A non-activated Transmitter button press has been detected
Off: Receiver is not powered on, or failed to power up successfully
LONG-RANGE
®
Legend:

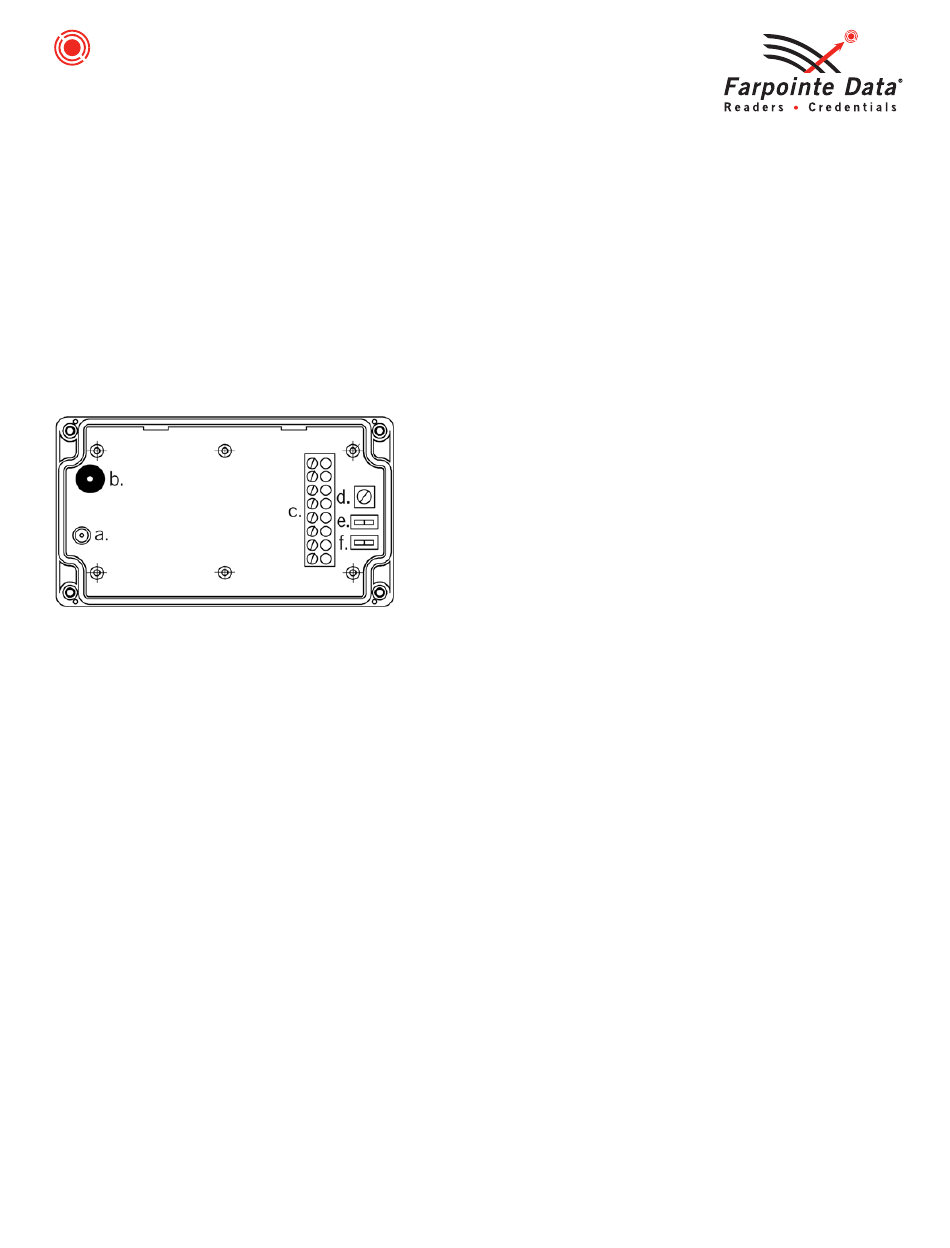

a. Antenna Connector
b. Audio Beeper
c. 10-PIN Terminal Block
d. Read Range Adjustment
e. Antenna Switch
f. Beeper Switch
