Summary of Contents for Officeworks STILFORD STDMDFWE

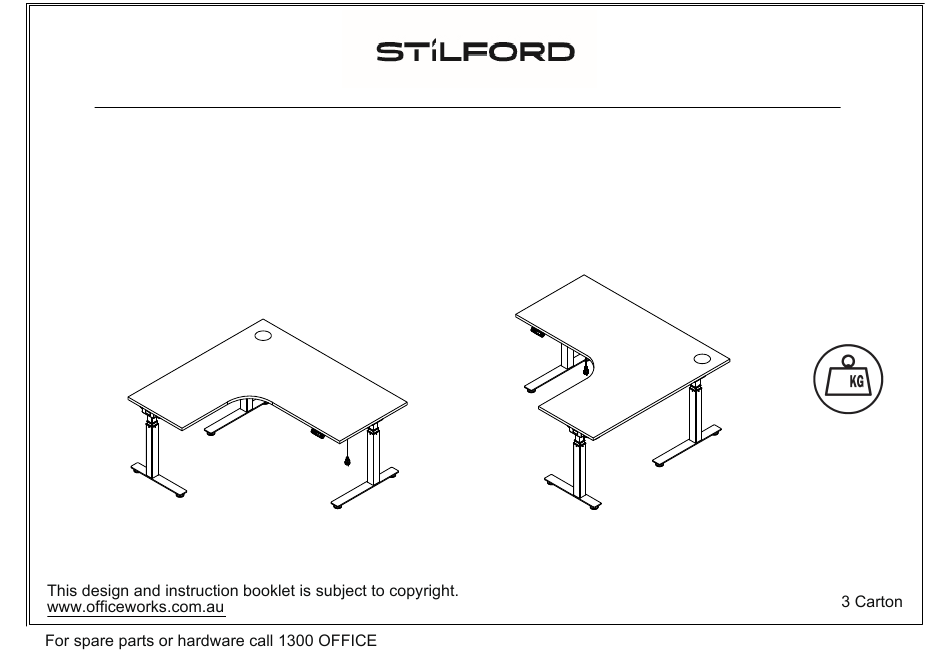

- Page 1 ASSEMBLY INSTRUCTIONS STILFORD DUAL MOTOR ELECTRIC HEIGHT ADJUSTABLE RADIUS CORNER WORKSTATION FRAME: STDMDFWE/ STDMDFBK/ STDMRFWE/ STDMRFBK DESKTOP: S2RCDT18 WE, WO, WB, OA, WN WEIGHT CAPACITY 1/18...
- Page 2 2/18...
- Page 3 • If parts are missing, broken, damaged or worn, stop using the product until all repairs are made using manufacturer authorised parts. • Failure to follow these warnings could result in serious injury. DANGER • CHILDREN MUST BE SUPERVISED. Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA 3/18...
-
Page 4: Safety And Warnings
Safety and Warnings • This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and table. • Please read the operation manual prior to start using the table. It provides you with important information about safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding damage on the table. - Page 5 This Assembly instruction covers both 1500mm and 1800mm sizes STDMDFWE,STDMDFBK Attention: Do not tighten the screws before all of the screws are in the correct place. 5/18...
- Page 6 This Assembly instruction covers both 1500mm and 1800mm sizes STDMRFWE,STDMRFBK Attention: Do not tighten the screws before all of the screws are in the correct place. 6/18...
- Page 7 Hardware located in carton- STDMDFWE,STDMDFBK 7/18...
- Page 8 Hardware located in carton- STDMRFWE,STDMRFBK 8/18...
- Page 9 The longer side of part 1 faces the front of the desk. Step 1 Loosen the screws before unfolding the legs. Fasten once legs are unfolded. 9/18...
- Page 10 Beam adjustment for 1800mm Step 2 corner workstation as follow: PRE Assembled L=1400 for L shape 1500mm desk. L=1700 for L shape 1800mm desk. 10/18...
- Page 11 Step 3 The longer side of part 11 faces the front of the desk. For the left hand side workstation. For right hand side workstation. Loosen the screws before unfolding the leg. Fasten once leg are unfolded. 11/18...
- Page 12 Step 4 Beam adjustment for 1800mm corner workstation as follow: Pre-assembled L=1140 for L shape 1500mm desk. L=1440 for L shape 1800mm desk. 12/18...
- Page 13 Remove this D screw from part 2 before using screw to Step 5 attach the corner frame to the straight desk frame. Left hand side assembly Right hand side assembly 13/18...
- Page 14 Step 6 14/18...
- Page 15 Step 7 Part 8 from return side plugs into M3 socket. 15/18...
- Page 16 Step 8 Before proceeding to the next steps, please ensure the frames are operating correctly and in sync. 1. Press and hold up button for 1 second, will display "2-3". Press and hold the down button for 5 seconds to finish the learning process. 2.
- Page 17 Step 9 17/18...
- Page 18 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years (desk), 5 years (motor, transformers, controller) from the date of purchase by the original customer.
