REX CVX6 Operation Manual

■ Tray Support
If the tray becomes a bit
Tighter
loose, or if you need to Tray Support
Adjustment Bolt
change the angle of the
legs, you can do so with
the tray support.
Loosen the adjustment
bolt shown in Fig. 5, move
the tray support in the
Looser
appropriate direction as
shown by the arrows, and
Fig. 5 Tray Support
then retighten the bolt.
WARNING
・ Ensure the adjustment bolt is rmly xed in position.
If it is too loose, the vice could become unstable,
which could lead to injury or an accident.
■ For Safe Operation
① Use only in a stable location
・Make sure the feet are in a stable position which allows the vice to keep its balance.
・If it overturns, it could result in an injury.
② Check for damage
・Before use, make sure there is no damage to any of the working parts and that the vise can fully operate in a
normal way and perform all its prescribed functions correctly.
③ Be careful not to get your ngers, etc. caught when setting up the tool tray
・When setting up the tool tray, folding up the stand to carry it, or when putting it away for storage, be careful not to get
your ngers caught in the tray.
④ Make sure you use the leg chain to x the legs in position when carrying the Stand
・Never forget to use the leg chain!
・Using excessive force on the leg chain could break the links resulting in injury or an accident.
⑤ Ensure the workpiece is securely xed in position before starting work
・If the chain is loose, the pipe could fall o , which could lead to a very dangerous situation.
⑥
Be careful the stand will not fall over.
・Should it be necessary to apply considerable force to the vice stand, be sure to remove the rubber
grommets and x the stand in position with an anchor or similar.
・If the stand falls over it could lead to injury or an accident.
⑦ Store carefully when not in use
・Store in a dry, locked room, out of the reach of children.
⑧ Always ask a specialist to carry out any repairs or an overhaul
・REX products are designed to comply with high standards of safety. Never try to dismantle or repair them yourself.
・For any repairs, always contact the place where you purchased the product, or your nearest REX sales o ce.
Printed on recycled paper.
●
Product specifications subject to change without notice.
●
■ Ceiling Brace
If you use the bending
25A pipe
grooves, etc., and the vice
starts to lift up, you can
stabilise and x it in place
by placing a pipe of
su cient length between
the ceiling brace and a
rm roof beam.
Ceiling Brace
Fig. 6 Ceiling Brace
WARNING
Before use, ensure that the pipe is rmly in place. If
・
the pipe comes loose while using the vice, the vice
may overturn, which could lead to injury or an accident
Make sure you use a place where you can x the pipe
in position securely without it slipping.
WARNING
Overseas Sales Dept. & Factory :
Tel.:+81-（0）72-961-9820 Fax.:+ 81-（0）72-961-9878
w w w . r e x i n d . c o . j p
ー2ー
Pipe Tools
Chain Vice Stand CVX6
CVX6
■ Names of Parts, Standard Speci cations, Standard Accessories
Ceiling Brace
Jaw
Chain
Tool Tray
Handle
Legs
Grommets
■ Setting up
When you set up the
stand, open the legs
and push the tool tray
down until it locks into
position.
Push downwards
■ Storage
When you have
nished using the
stand, turn it upside
down and push down
on the tray to return it
to its closed position.
Push downwards
CVX6-English
5V430-E4
1001R0000
・Be sure to hand this operation manual to the user.
・To ensure safe and e cient use, read the manual thoroughly before usuing the stand.
・Be sure to keep the manual where the operator can refer to it whenever necessary.
Base
Model
Bending Grooves
(Thin wall pipes only)
Name
Tray Support Applicable Pipe Diam.
ApplicablePipes
Size (mm)
Weight (kg)
Additional features
Leg Chain
Table 1. Standard speci cations and attachments.

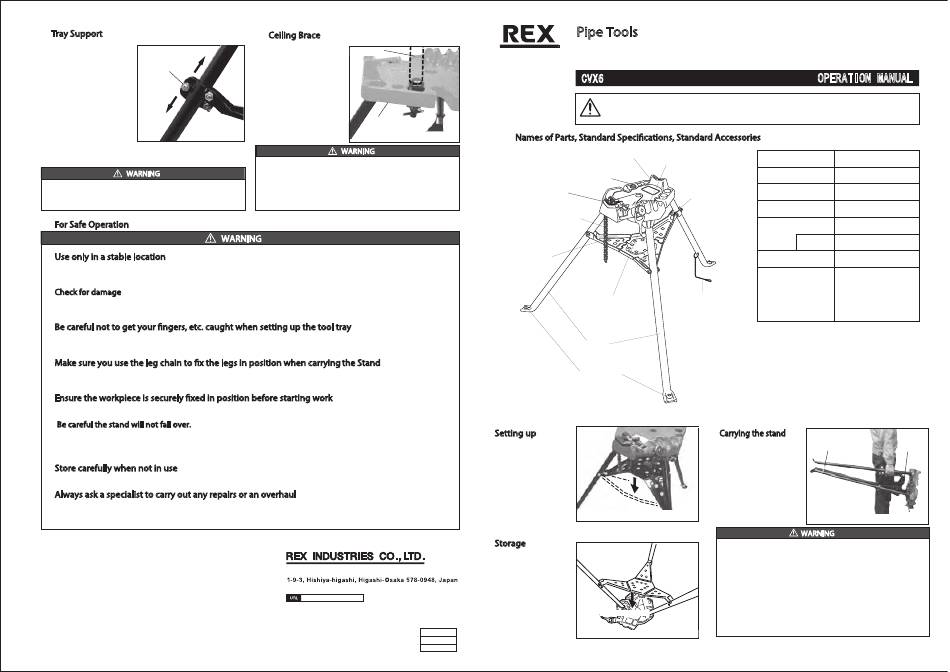

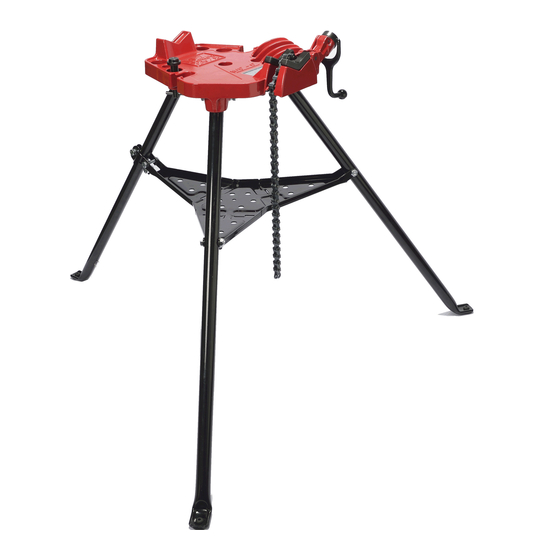

Fig 1. Overall View
■ Carrying the stand
Whenever you carry the
stand, x the legs in
position with the leg
chain so that the legs
don't suddenly open
up.
Fig. 2 Setting up
・
Be careful not to pinch your ngers when pushing down
the tool tray as you set up. Also, keep your face away from
the tray in case it suddenly snaps back.
・
Be careful not to apply too much force when you put the
stand away or the legs may suddenly close up and you
could possibly injure yourself or hit yourself in the face.
・
Do not use excessive force on the leg chain or else it could
break. Walk evenly when carrying the stand
Fig.3 Putting the stand away
ー1ー
OPERATION MANUAL
CVX6
Chain Vice Stand
1/8 - 6" (8A - 150A)
Steel pipe
1198 x 1134 x 960
(L×W×H）
1198 x 1134 x 890
For Asia
19.6
Bending Grooves
(Thin wall pipes only)
Pipe Support
Tool tray
Tool
Leg Chain
Tray
Fig. 4. Carrying position
WARNING
