Summary of Contents for Restomod Air Quantum

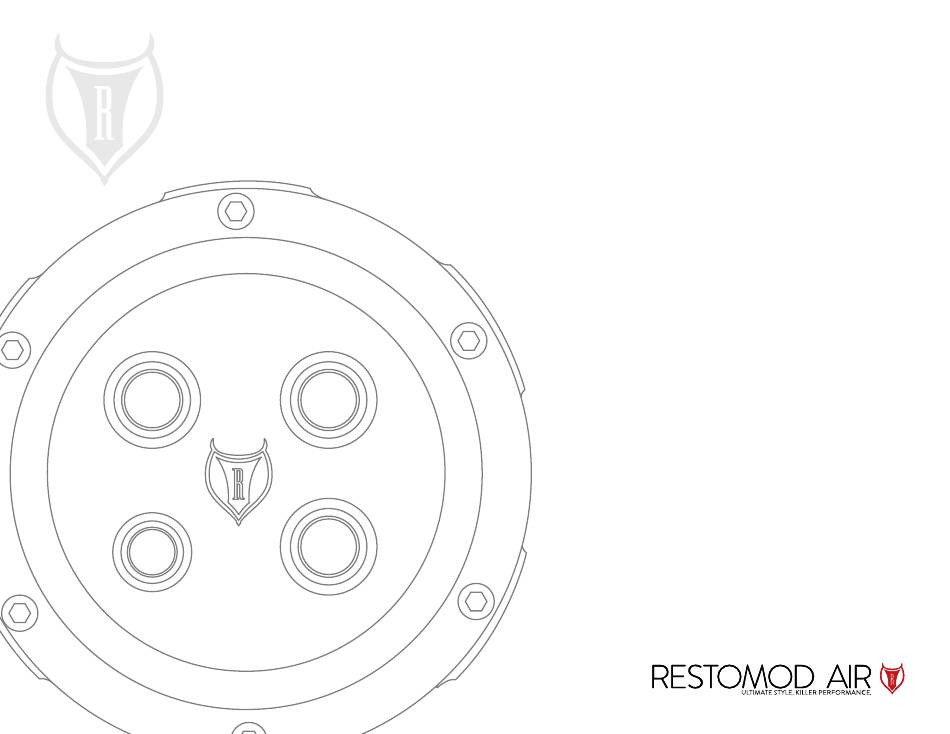

- Page 1 QUANTUM ROUND BULKHEAD INSTRUCTIONS FOR ©2017 RestomodAir / 05.17...
- Page 3 Bag kit model specific G.M. CAMARO, CHEVELLE, FIREBIRD, NOVA, C-10 Bolts Nuts 1/4 - 20 x 1” 1/4 - 20 Big Ass Bulkhead (Model Specific) Page 3 www.restomodair.com 866.784.4278...
- Page 4 The installation procedure for your Quantum Round Bulkhead for model specific is simple and straight-forward... Determine a mounting location for the Bulkhead on your vehicle. Using the included template “A” at the back of this manual carefully mark and drill four holes.
- Page 5 4.6” Factory Air Firewall Restomod Air logo should be facing up Tape Template “A” to firewall 4.6” Restomod Air logo should be facing up After drilling any holes, carefully...
- Page 6 mounting bulkhead model specific Now attach the (4) 1/4 -20 x 1” bolts through the bulkhead and the (4) 1/4 -20 nuts from the back of the firewall. Page 3 www.restomodair.com 866.784.4278...
- Page 7 mounting bulkhead model specific Now attach hose fittings. Reminder... Use two wrenches to tighten o-ring fittings and a few drops of mineral oil on the rings also). Page 4 www.restomodair.com 866.784.4278...
- Page 8 Bag kit Smooth Firewall Nuts Quantum Round Bulkhead (Smooth Firewall) Fitting Page 3 www.restomodair.com 866.784.4278...
- Page 9 The installation procedure for your Quantum Round Bulkhead for smooth firewall is simple and straight-forward... Determine a mounting location for the Bulkhead on your vehicle. Using the included template “B” at the back of this manual carefully mark and drill four holes marked on the template.
- Page 10 mounting bulkhead smooth firewall Insert the air conditioning fittings through the bulkhead plate from the front, secure them from the inside with the included fitting nuts. Page 3 www.restomodair.com 866.784.4278...
- Page 11 mounting bulkhead smooth firewall Connect the hose fittings at this time. Page 3 www.restomodair.com 866.784.4278...
- Page 13 IF YOU PRINTED THIS MANUAL PLEASE READ THIS... Just as a cautionary step, please measure this box and make sure it is 1” x 1”. Some copiers/printers may not print at 100% of actual size. 4.6” Restomod Air logo should be facing up...
- Page 15 Template “B” IF YOU PRINTED THIS MANUAL PLEASE READ THIS... Just as a cautionary step, please measure this box and make sure it is 1” x 1”. Some copiers/printers may not print at 100% of actual size.
