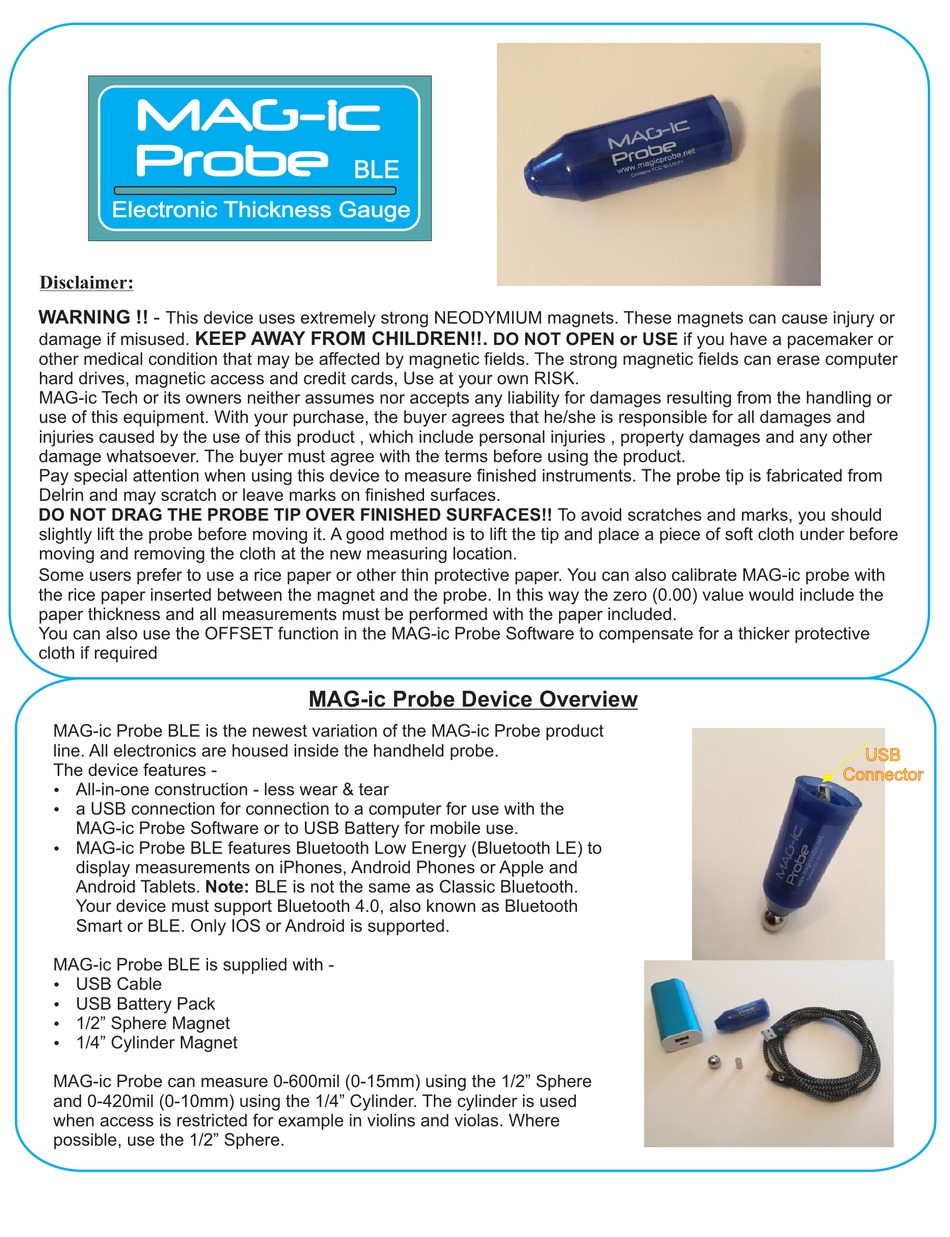

Electronic Thickness Gauge
Disclaimer:
WARNING !! -
This device uses extremely strong NEODYMIUM magnets. These magnets can cause injury or
KEEP AWAY FROM CHILDREN!!.
damage if misused.
other medical condition that may be affected by magnetic fields. The strong magnetic fields can erase computer
hard drives, magnetic access and credit cards, Use at your own RISK.
MAG-ic Tech or its owners neither assumes nor accepts any liability for damages resulting from the handling or
use of this equipment. With your purchase, the buyer agrees that he/she is responsible for all damages and
injuries caused by the use of this product , which include personal injuries , property damages and any other
damage whatsoever. The buyer must agree with the terms before using the product.
Pay special attention when using this device to measure finished instruments. The probe tip is fabricated from
Delrin and may scratch or leave marks on finished surfaces.
DO NOT DRAG THE PROBE TIP OVER FINISHED SURFACES!! To avoid scratches and marks, you should
slightly lift the probe before moving it. A good method is to lift the tip and place a piece of soft cloth under before
moving and removing the cloth at the new measuring location.
Some users prefer to use a rice paper or other thin protective paper. You can also calibrate MAG-ic probe with
the rice paper inserted between the magnet and the probe. In this way the zero (0.00) value would include the
paper thickness and all measurements must be performed with the paper included.
You can also use the OFFSET function in the MAG-ic Probe Software to compensate for a thicker protective
cloth if required
MAG-ic Probe BLE is the newest variation of the MAG-ic Probe product
line. All electronics are housed inside the handheld probe.
The device features -
All-in-one construction - less wear & tear
Ÿ
a USB connection for connection to a computer for use with the
Ÿ
MAG-ic Probe Software or to USB Battery for mobile use.
MAG-ic Probe BLE features Bluetooth Low Energy (Bluetooth LE) to
Ÿ
display measurements on iPhones, Android Phones or Apple and
Android Tablets. Note: BLE is not the same as Classic Bluetooth.
Your device must support Bluetooth 4.0, also known as Bluetooth
Smart or BLE. Only IOS or Android is supported.
MAG-ic Probe BLE is supplied with -
USB Cable
Ÿ
USB Battery Pack
Ÿ
1/2" Sphere Magnet
Ÿ
1/4" Cylinder Magnet
Ÿ
MAG-ic Probe can measure 0-600mil (0-15mm) using the 1/2" Sphere
and 0-420mil (0-10mm) using the 1/4" Cylinder. The cylinder is used
when access is restricted for example in violins and violas. Where
possible, use the 1/2" Sphere.
BLE
MAG-ic Probe Device Overview
DO NOT OPEN or USE if you have a pacemaker or
USB
Connector
Advertisement
Related Manuals for Mag-ic Probe BLE
Summary of Contents for Mag-ic Probe BLE
- Page 1 Some users prefer to use a rice paper or other thin protective paper. You can also calibrate MAG-ic probe with the rice paper inserted between the magnet and the probe. In this way the zero (0.00) value would include the paper thickness and all measurements must be performed with the paper included.
- Page 2 MAG-ic Probe Lite allows you to upload a photo or drawing of the object to the computer and plot all your measurements directly to the picture. This can then be printed or saved for future reference and comparison.
-
Page 3: Usb Serial Connection
Connect the MAG-ic Probe BLE to your computer USB port and you should hear the computer beep and proceed as above. Once you have the correct COM Port # you can proceed to open the MAG-ic Probe Software you downloaded from the previous section. - Page 4 If in the list, you find usbSerial ports similar to the format above, please note or copy the entire string for example /dev/cu.usbserial-6AD4BE In the MAG-ic Probe Software, click on Port Selection and Recalibration and select Serial Port. Select or type the entire line from above. If successful, the green light in the top right should light up and the calibration messages will appear in the center of the screen.
- Page 5 MAG-ic Probe uses extremely strong Neodymium magnets. These magnets are brittle and can chip if mishandled. Each MAG-ic Probe is carefully calibrated to the magnets supplied with it. a Large chip may affect the accuracy of the device. The biggest cause of magnets chipping is when the 2 supplied magnets are allowed to SNAP together or to steel objects.
- Page 6 When initially connecting the MAG-ic Probe BLE to the computer USB port, the device will wait 10 seconds for stabilization Connect one end of the USB Cable to the MAG-ic Probe BLE and the other end to the computer as Ÿ...
- Page 7 Ÿ located above your instrument to be measured in order to closely approximate the final working condition. Your MAG-ic Probe is ready for use. Ÿ If temperature conditions change during the session or if you have to interrupt the session for a prolonged Ÿ...
-
Page 8: Usage Tips
Usage Tips MAG-ic Probe BLE is capable of measuring very small distances to 1/1000th inch. It should make sense then that the probe should be absolutely square to the surface being measured and the opposing magnet. If the probe is slightly tilted, the distance from the center of the probe to the target magnet will be slightly increased giving rise to incorrect measurements.
