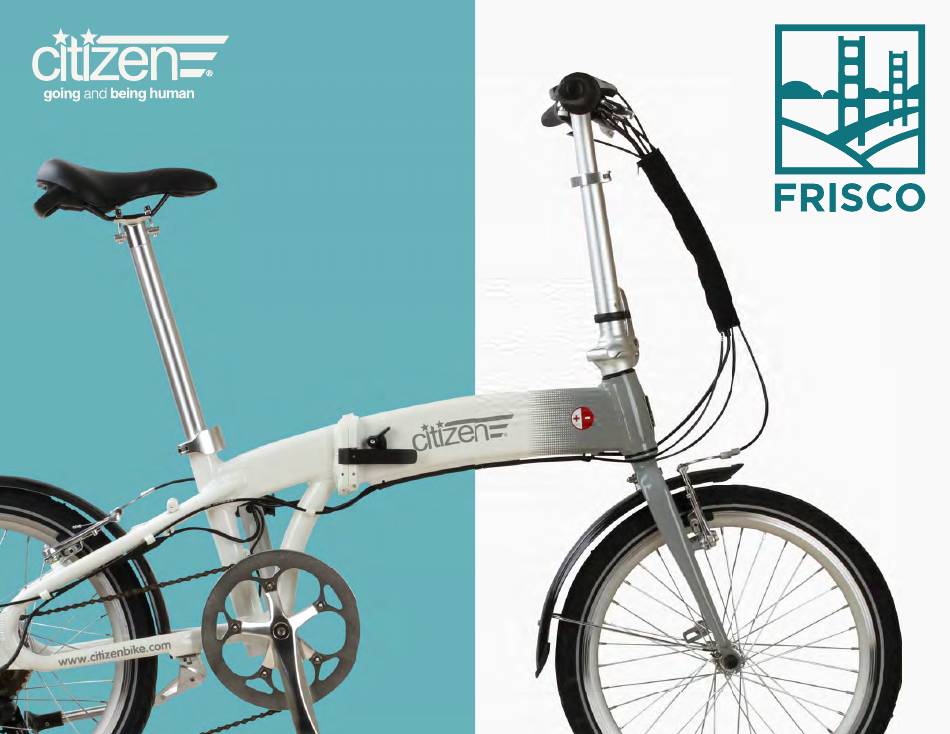

Frisco Citizen Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Citizen and is the answer not in the manual?

Questions and answers

Summary of Contents for Frisco Citizen

  • Page 2: Before We Begin

    Before we begin Your electric-assisted or e-bike works reliably under all weather conditions, although an excessive water exposure could damage the electronics and/or the electric motor. Never touch the electronics on the e-bike with wet hands and never touch the plus and minus poles at the same time, as the strong short-circuit current could cause injury.

  • Page 3: Charge Time

    Max speed 15.5 mph (limited) to 20 mph Max distance 30+ mi depending on assist level Battery Samsung 36 V 8.8 AH Computer Motor Motor 250 W high speed rear motor Charge time 4 hours Battery In order to maintain and enjoy your e-bike, please read the operating instructions carefully before getting started.

  • Page 4: Range Overview

    RANGE OVERVIEW Bike weight < 50 lbs Rider < 220 lbs RANGE Even Road With the wind, normal temperature, normal load Against the wind, Even Road normal temperature and normal load Hilly Road With the wind, ≤2° gradient, normal temperature and normal load Maximum Assist Moderate Assist...
  • Page 5 STARTING, PARKING AND RANGE Maximizing your range Many factors influence the performance of the battery which has impact on your range. Charge the battery completely before a long ride. More energy is required on uneven roads and hilly conditions. Frequent speed changes use up more energy. Bigger loads use up more energy.

  • Page 6: Your First Ride

    YOUR FIRST RIDE Please read the operating instructions carefully and completely. Check all parts before your first ride. Take your first ride in an open space so you can get used to the acceleration. Once you are used to the bike, you can enjoy the assistance of the electric motor in normal riding conditions.

  • Page 7: Battery Charging Instructions

    BATTERY CHARGING INSTRUCTIONS CHARGE POWER CHARGING POWER ON GREEN CHARGED Warning! Warning! Beginning the charging process: Always switch the power off before charging the battery. Connect the charging plug on the charger to the charging socket Never cover the battery charger. on the battery and then connect the 120V plug to the socket.
  • Page 8 SAFETY INSTRUCTIONS FOR THE BATTERY AND CHARGER Your e-bike has a lithium-ion battery. Never charge the battery Please make sure that the charger voltage matches your local with a replacement charger which is not designed for this voltage. purpose. Using an unsuitable charger on a lithium ion battery could lead to overheating, fire or explosion.

  • Page 9: Maintenance

    MAINTENANCE WARNING! Do not over-lubricate. If oil gets onto the wheels or the brake pads, this reduces the performance of the brakes and increases braking distances. Oil the following components with light engine oil (20W) as follows: Do not clean your e-bike with a pressure washer. Water could penetrate into the motor causing damage to the electrical components.

  • Page 10: Service Overview

    SERVICE OVERVIEW Make sure you carry out the following safety checks before you ride Brakes Bearings Check that the brakes are working properly. Check that all bearings are lubricated and turn freely. Visually inspect the brake cables to check correct alignment to Check the control bearings, wheel bearings, pedal bearings and the wheels.
  • Page 11 COMPUTER COMPUTER...
  • Page 12 Km/H UP Button Riding Speed (metric) POWER Button Riding Speed (US) DOWN Button Maximum Speed ASSIST Pass Level Average Speed Battery Capacity Distance (metric) CRUISE Cruise Function Distance (US) Power-Assisted Function Trip Distance Single Trip Time Total Distance Total Trip Time Battery Voltage THROTTLE Throttle Display...
  • Page 13 OPERATING INSTRUCTIONS 1. ON/OFF 2.5 PAS Display Hold the button long enough to turn on the power. Hold a second time to turn off the power. When the motor stops driving and the EBike is not in use for 5 consecutive minutes, it will automatically shut down and turn off the When power-assited riding is activated.
  • Page 14 OPERATING INSTRUCTIONS GENERAL PROJECT SETTINGS (continued) 3. Display 2 1. Set Maximum Riding Speed After the power is on for 5 seconds, hold the buttons at the same time. The maximum Hold the button shortly while in display 1 to enter riding speed MXS and KM/H will flash.
