Photonic Universe AGM-DC-2V300AH Instruction Manual

Sealed maintenance-free
300Ah 2V AGM VRLA deep cycle battery
Model AGM-DC-2V300AH
INSTRUCTION MANUAL
Photonic Universe Ltd
Tel: +44 (0) 203 150 1111
Fax: +44 (0) 203 150 1212
Email: info@photonicuniverse.com
Web: www.photonicuniverse.com
I. INSTALLATION AND CONNECTION
A) Keep the battery in a cool, dry, ventilated and clean place.
B) When connecting the wires, screw all the nuts, bolts and washers tightly.
C) If you use the battery within other equipment, keep it away from a heat generating source (e.g.
transformer) and install it in an upright position as low as possible with proper ventilation.
D) The battery may produce combustible gas. Avoid installation in a closed compartment or near sparks (e.g.
near a switch or fuse)
E) Use well insulated tools when installing the battery.
F) Avoid using the battery in the following places:
•
Areas exposed to direct sunlight or any heat source
•
Areas with radiant heating, infrared radiation or ultraviolet radiation
•
Areas filled with organic solvent, vapour, dust or corrosive gases and substances
•
Areas with abnormal vibration or risk of mechanical damage
G) When connecting the battery to a charger or a load, keep the circuit switched OFF and connect the
battery's positive(+) terminal to the positive(+) pole of the charger or the load and the battery's negative(-)
terminal to the negative(-) pole of the charger or the load.
H) Never use batteries with different capacities or different performance characteristics within the same
battery bank. Do not use new and old batteries together in the same bank.
I) Ambient discharge temperature: from -10 ⁰C to +40 ⁰C.
II. CONNECTION SCHEME

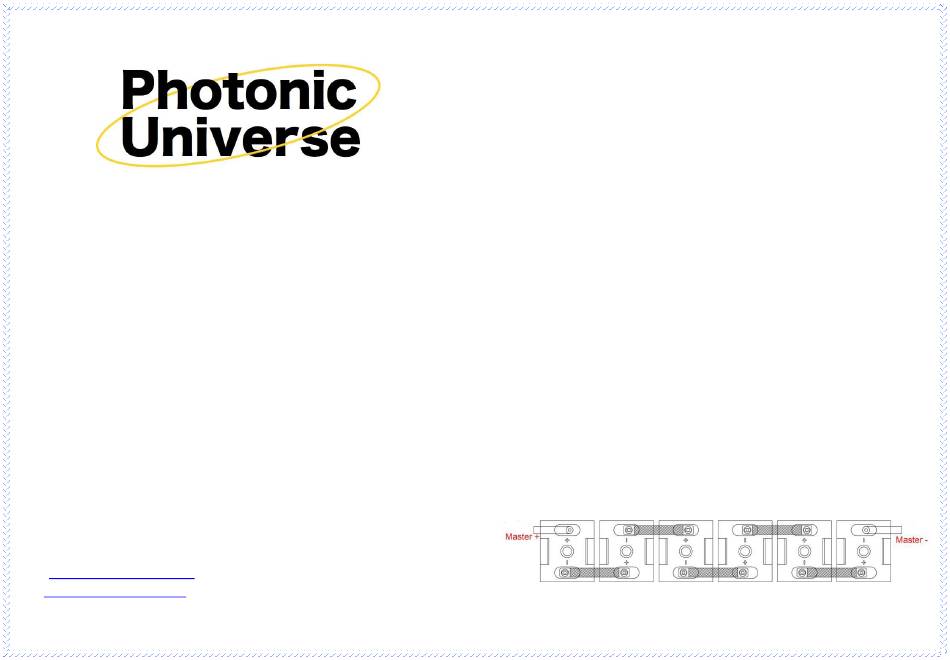

A) To form a 12V battery bank, connect 6 x 2V batteries in series as shown on the diagram below using
metal plate connectors or heavy duty cables with ring terminals. Please note each connector on the
diagram below connects "+" and "-" of neighbouring batteries.
1
