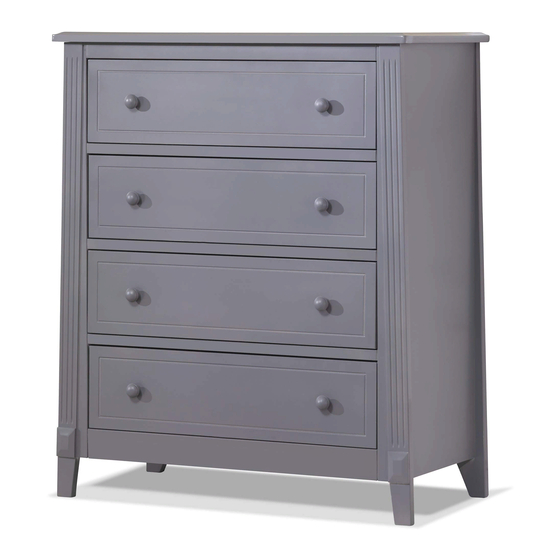

Summary of Contents for Sorelle Berkley 4 Drawer Chest
- Page 1 Website: www.sorellefurniture.com Berkley 4 Drawer Chest Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in AY, Vietnam...
-
Page 2: Assembly Parts
SORELLE Assembly Parts (A) Left Side Panel (x1) (B) Right Side Panel (x1) (C) Front - Top Rail(x1) (D) Front- Middle Rail (x3) (E) Front- Bottom Rail (x1) ( F ) Rear - Top Rail (x1) ( G) Rear - Middle Rail (x1) -
Page 3: Hardware List
SORELLE Assembly Parts Hardware list (b). Spring Washer ( 16 pcs) (a) 1/4” x 1-3/8”mm Allen bolt (10 pcs) (c) Falt Washer (16 pc) ( f ) 5/32 x 1”mm Allen bolt (8pcs) ( e ) Knob (x8) ( d ) Plastic Connector (8 pcs) - Page 4 SORELLE Berkley Double Dresser Assembly Attach Rails to Right Panel (B) as Figure 1. Figure 1 Attach left side panel (A) to Rails as Fig.2 Figure 2 Page 4...
- Page 5 SORELLE Berkley Double Dresser Assembly Attach Top Panel ( J ) to Send panel as Figure 3. Figure 3 Attach Top Panel ( I ) to Side panels by using 8 Plastic Connector ( d ) as Figure 4. Figure 4...
-
Page 6: Drawer Assembly
SORELLE Drawer Assembly 1. Working on a padded fl at surface, attach Drawer (R1) Sides (R1&R2) to Drawer Back (R3) with Philips Head Screw(g). Figure 1 (R3) (R2) 2. Slide Drawer Bottom (R4) and into drawer Bottom Support (R5) assembly. Figure 2... - Page 7 SORELLE Berkley Double Dresser Assembly Assembly the drawer as Figure 6. Figure 6 Use 24 pcs Wood Screws (d) to attach the Back Panel (K) to the dresser As shown in Figure 7. Figure 7 Page 7...
