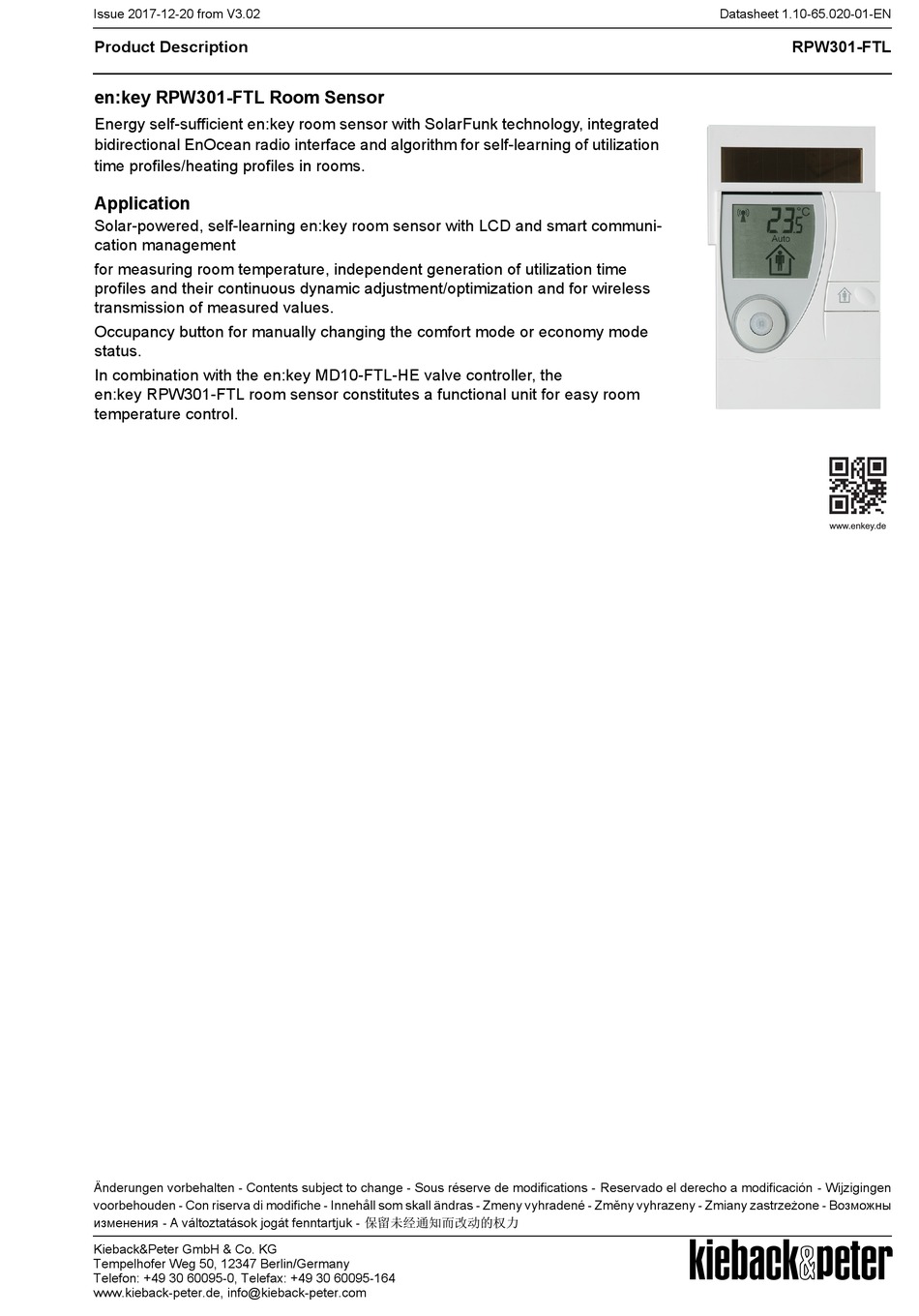

Issue 2017-12-20 from V3.02
Product Description
en:key RPW301-FTL Room Sensor
Energy self-sufficient en:key room sensor with SolarFunk technology, integrated
bidirectional EnOcean radio interface and algorithm for self-learning of utilization
time profiles/heating profiles in rooms
Application
Solar-powered, self-learning en:key room sensor with LCD and smart communi-
cation management
for measuring room temperature, independent generation of utilization time
profiles and their continuous dynamic adjustment/optimization and for wireless
transmission of measured values.
Occupancy button for manually changing the comfort mode or economy mode
status.
In combination with the en:key MD10-FTL-HE valve controller, the
en:key RPW301-FTL room sensor constitutes a functional unit for easy room
temperature control.
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Zmeny vyhradené - Změny vyhrazeny - Zmiany zastrzeżone - Возможны
изменения - A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
.
Datasheet 1.10-65.020-01-EN
RPW301-FTL
www.enkey.de
A
Advertisement
Table of Contents
Summary of Contents for Kieback&Peter RPW301-FTL
- Page 1 Occupancy button for manually changing the comfort mode or economy mode status. In combination with the en:key MD10-FTL-HE valve controller, the en:key RPW301-FTL room sensor constitutes a functional unit for easy room temperature control. www.enkey.de Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Zmeny vyhradené...
-
Page 2: Table Of Contents
Indicators on the display ..........................10 Commissioning ............................... 11 Switching the device on/off ..........................11 “Test installation location” function........................12 Teaching in the MD10-FTL-HE radio partner on the RPW301-FTL ..............13 Mounting ................................14 Removal ................................16 Operating Level ............................... 16 Manually switching between comfort and economy mode................ -
Page 3: Important Information On Product Safety
Important Information on Product Safety Safety instructions This data sheet contains information on installing and commissioning the product “RPW301-FTL”. Read this product description prior to installation, commissioning or operation. No previous special knowledge is required to commission and operate this product. - Page 4 The operating modes described here only apply for the self-learning en:key individual room control- lerconsisting of: - en:key MD10-FTL valve controller and - en:key RPW301-FTL room sensor. Comfort mode: Operating mode for a room that is in use (usage status: “Present”). The controller operates with comfort setpoint according to the value set on the MD10-FTL-HE valve controller.
-
Page 5: Item
Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Item RPW301-FTL en:key Room sensor with SolarFunk technology, integrated bidirectional EnOcean wireless interface Automatic determination of the utilization time profile/heating profile in the room for automatic control of comfort mode and economy mode Controls designed for users based on AAL requirements/requirements of the elderly. -
Page 6: Dimensions
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Dimensions 10,5 91,6 R 30,0 90,0 19,7 Radio Interface Radio communication with the radio partner, e.g. en:key valve controller, is cyclical, bidirectional and includes an intelligent synchronization process. If the radio communication between en:key the room and the radio partner is interrupted, an internal resynchronization algorithm starts automatically. -
Page 7: Installation
RPW301-FTL Installation CAUTION This product description contains the specific settings and functions of the en:key RPW301-FTL room sensor. The product description of the radio partner, e.g. en:key MD10-FTL-HE valve controller should be observed in addition to these instructions. General installation instructions... - Page 8 1,5 m ■ As a result of the autonomous operation and wireless installation of RPW301-FTL, the selected installation location can be changed and optimized at any time without additional effort. The installation location must have sufficient lighting; using the device in unlit rooms (such as interior kitchens/bathrooms) shortens long-term functionality.
-
Page 9: Controls And Functional Components
(below the housing) Occupancy button - Switching between comfort mode/economy mode, see page16 - For switching the RPW301-FTL on/off ( with the setting button); see page 11 - For the time and date setting functions, see page 19 Setting button... -
Page 10: Indicators On The Display
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Indicators on the display Item Icon/display Explanation Antenna Status of the radio connection Battery Room sensor energy storage unit charging state < 30% Window Rapid temperature drop detected Code Status and malfunction messages... -
Page 11: Commissioning
Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Commissioning Switching the device on/off (01) Setting button (02) Occupancy button ■ Switching on The device is delivered in storage mode (switched off). All functions are deactivated and the device does not consume any power. The energy storage unit has been fully charged at the factory for initial commissioning. -
Page 12: Test Installation Location" Function
“Occupancy” icon does not switch to “Person inside the house” and remains unchanged. ► After a suitable installation location has been found, the en:key RPW301-FTL room sensor can be installed there and commissioned. NOTE The en:key room sensor automatically switches off if a radio partner has not been taught-in after... -
Page 13: Teaching In The Md10-Ftl-He Radio Partner On The Rpw301-Ftl
An error has occurred and registration has failed if the MD10-FTL-HE valve controller acknowledges registration with a downward sequence of tones (two long tones). Start the teach-in process again. The valve controller is registered on the RPW301-FTL. The en:key room sensor now starts to learn the individual utilization time profile. -
Page 14: Mounting
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Default utilization time profile: Room used: 6:00 AM - 8:00 PM, comfort temperature Room unused: 8:00 PM - 6:00 AM, economy temperature NOTE It is not possible to add an additional valve controller after the procedure is complete. - Page 15 Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Wall mounting - Flexible screw mounting (1) bar (2) adhesive numbers Wall mounting - Flexible adhesive mounting with double-sided transparent adhesive strips NOTE For a permanent connection, remove any dust and grease from the adhesive surface on the wall mount and the wall.
-
Page 16: Removal
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Removal Operating Level Manually switching between comfort and economy mode ► You can manually switch between comfort mode and economy mode and vice versa by pressing the “Occupancy button”. This is displayed by the comfort mode or economy mode icons. -
Page 17: Automatically Switching Between Comfort And Economy Mode
Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Example 2: Comfort temperature 20 °C, economy temperature: 16 °C Room used: 6:00 AM - 9:00 AM and 3:00 PM - 9:00 PM Presence set manually (by pressing the “Occupancy button) 10:00 AM - 12:00 AM °C... -
Page 18: Menu Level
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Menu level NOTE If no settings are made within approx. 5 seconds, the individual setting functions are exited and saved as required. Config menu The following functions are available in the Config menu: ■... -
Page 19: Setting The Time And Date
Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Setting the time and date The hour, minutes, year, month and day can be set in sequence. The values to be set flash. ► Hold down the "Occupancy button" for 5 seconds. -
Page 20: Setting The 12/24 Hour Display
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Setting the 12/24 hour display ► Hold down the "Occupancy button" for 5 seconds. "ConF” appears on the display. ► Release the “Occupancy button”. ► Briefly press the "Occupancy button" to select the config menu "ConF"... -
Page 21: Setting Initial Display
Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Setting initial display ► Hold down the "Occupancy button" for 5 seconds. "ConF” appears on the display. ► Release the “Occupancy button”. ► Briefly press the "Occupancy button" to select the config menu "ConF"... -
Page 22: Info Menu
Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Info menu The following information is displayed in the Info menu: ■ Status message ■ Display of taught-in radio partners – Radio address for taught-in radio partners ► Hold down the "Occupancy button" for 5 seconds. -
Page 23: Service Level
► Hold down the “Occupancy button” for about 3 seconds and the “Teach in the MD10-FTL-xx radio partner” function will run (see the “Teaching in the MD10-FTL-HE radio partner on the RPW301-FTL” section on page 13). Page 23 / 28... - Page 24 Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Deleting all taught-in radio partners ► Briefly press the “Occupancy button” repeatedly to select the “dEL” function. ► Hold down the “Occupancy button” for about 3 seconds and the “Delete all taught-in radio partners”...
-
Page 25: Status Messages
Issue 2017-12-20 from V3.02 Datasheet 1.10-65.020-01-EN Product Description RPW301-FTL Status messages Icon/display State Explanation Antenna Fault-free radio connection Δ “Test installation location” evaluation function is active InSt Antenna Flashes Valve controllers can be registered Prog Antenna Radio connection partly interrupted (> 1 hour) Δ1, Er01... - Page 26 30%. NOTE Charge the energy storage unit by placing the RPW301-FTL in a source of light for two hours (day light or artificial light, but not direct sun light). Energy source The internal AA lithium batteries support solar operation.
-
Page 27: Malfunction Messages
Malfunction messages Icon/display State Explanation Antenna Transmission function on the RPW301-FTL malfunctioning Δ8, Er08 Δ3, Er03 System time malfunction at RPW301-FTL Transmission function malfunctioning The radio connection is continuously monitored. The “Δ8” icon appears on the display if a trans- mission function malfunction is detected in the en:key room sensor. - Page 28 Datasheet 1.10-65.020-01-EN Issue 2017-12-20 from V3.02 RPW301-FTL Product Description Page 28 / 28...
