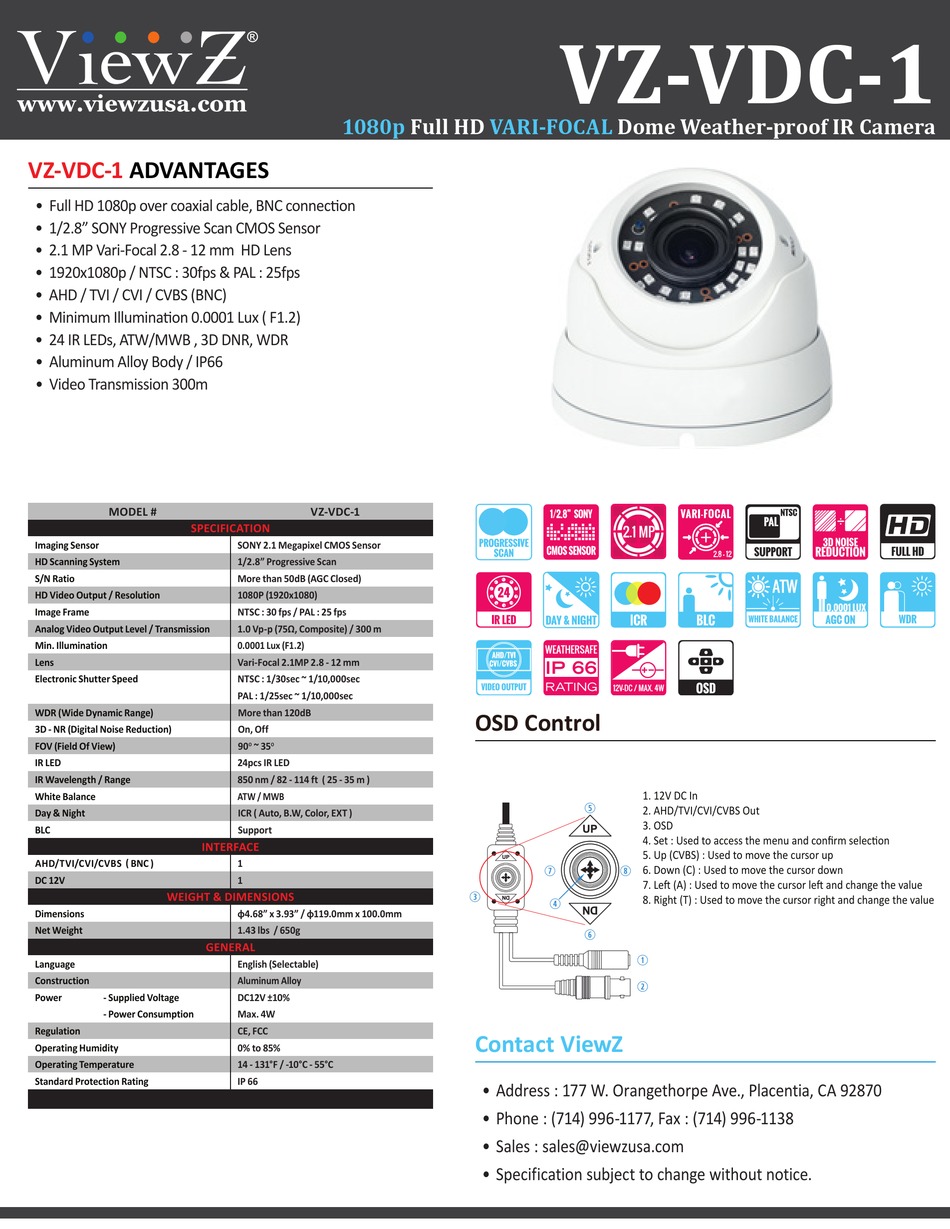

VZ-VDC-1
ADVANTAGES
• Full HD 1080p over coaxial cable, BNC connection
• 1/2.8" SONY Progressive Scan CMOS Sensor
• 2.1 MP Vari-Focal 2.8 - 12 mm HD Lens
• 1920x1080p / NTSC : 30fps & PAL : 25fps
• AHD / TVI / CVI / CVBS (BNC)
• Minimum Illumination 0.0001 Lux ( F1.2)
• 24 IR LEDs, ATW/MWB , 3D DNR, WDR
• Aluminum Alloy Body / IP66
• Video Transmission 300m
MODEL #
SPECIFICATION
Imaging Sensor
HD Scanning System
S/N Ratio
HD Video Output / Resolution
Image Frame
Analog Video Output Level / Transmission
Min. Illumination
Lens
Electronic Shutter Speed
WDR (Wide Dynamic Range)
3D - NR (Digital Noise Reduction)
FOV (Field Of View)
IR LED
IR Wavelength / Range
White Balance
Day & Night
BLC
INTERFACE
AHD/TVI/CVI/CVBS ( BNC )
DC 12V
WEIGHT & DIMENSIONS
Net Weight
GENERAL
Language
Construction
Power
- Supplied Voltage
- Power Consumption
Regulation
Operating Humidity
Operating Temperature
Standard Protection Rating
1080p
Full HD
VZ-VDC-1
SONY 2.1 Megapixel CMOS Sensor
1/2.8" Progressive Scan
More than 50dB (AGC Closed)
1080P (1920x1080)
NTSC : 30 fps / PAL : 25 fps
1.0 Vp-p (75Ω, Composite) / 300 m
0.0001 Lux (F1.2)
Vari-Focal 2.1MP 2.8 - 12 mm
NTSC : 1/30sec ~ 1/10,000sec
PAL : 1/25sec ~ 1/10,000sec
More than 120dB
On, Off
900 ~ 350
24pcs IR LED
850 nm / 82 - 114 ft ( 25 - 35 m )
ATW / MWB
ICR ( Auto, B.W, Color, EXT )
Support
1
1
ɸ4.68" x 3.93" / ɸ119.0mm x 100.0mm
1.43 lbs / 650g
English (Selectable)
Aluminum Alloy
DC12V ±10%
Max. 4W
CE, FCC
0% to 85%
14 - 131°F / -10°C - 55°C
IP 66
VZ-VDC-1
VARI-FOCAL
Dome Weather-proof IR Camera
OSD Control
1. 12V DC In
2. AHD/TVI/CVI/CVBS Out
t
3. OSD
4. Set : Used to access the menu and confirm selection
5. Up (CVBS) : Used to move the cursor up
6. Down (C) : Used to move the cursor down
u
i
7. Left (A) : Used to move the cursor left and change the value
e
8. Right (T) : Used to move the cursor right and change the value
r
y
q
w
Contact ViewZ
• Address : 177 W. Orangethorpe Ave., Placentia, CA 92870
• Phone : (714) 996-1177, Fax : (714) 996-1138
• Sales : sales@viewzusa.com
• Specification subject to change without notice.
