CITAQ Opoz RP5080

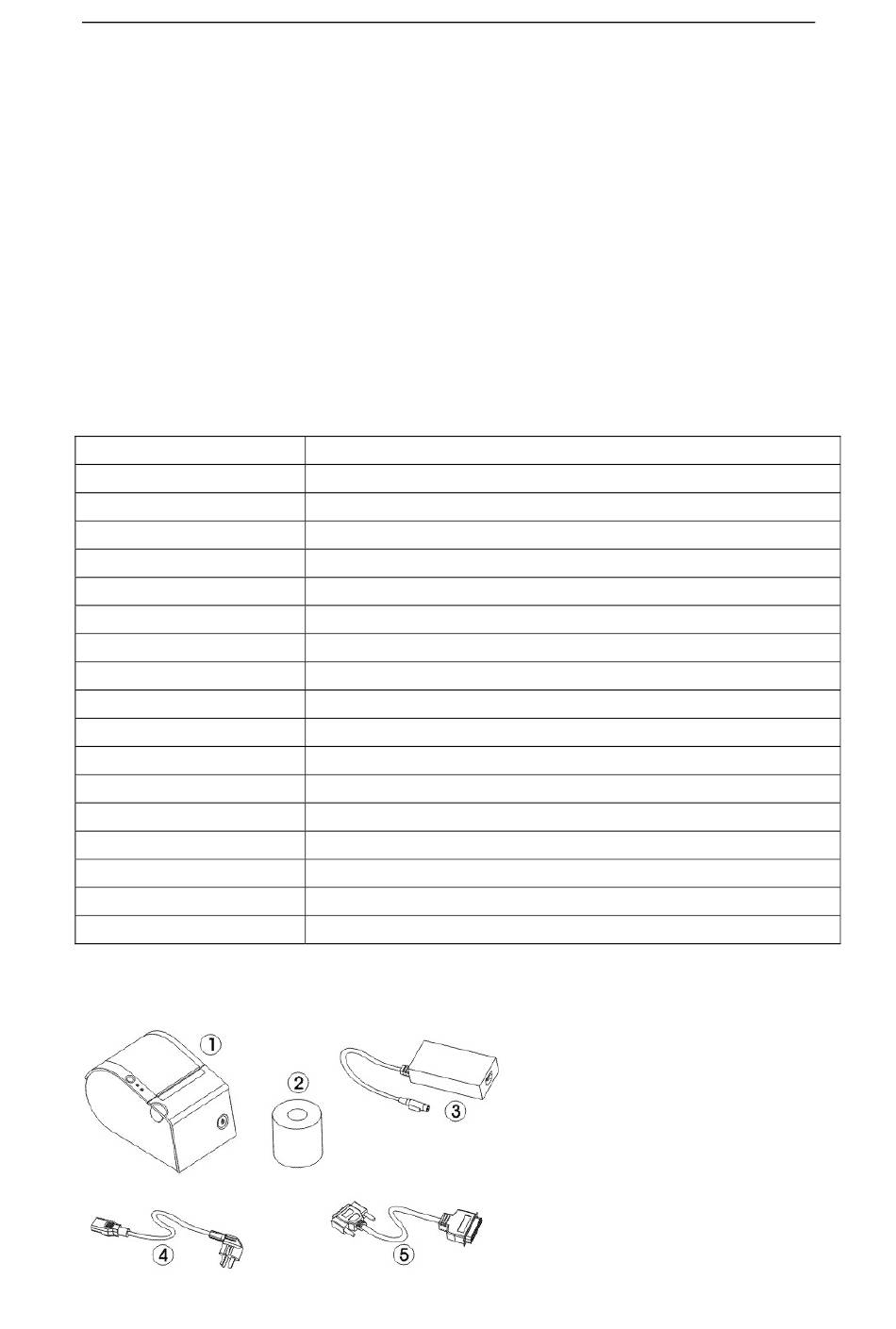

Opoz RP5080 Printer Installation Guide
Specification:
Printing Method
Dot Density
Printing Density
MCBF
Printing Speed
Printing Paper Width:
Paper Diameter
MCBF of Auto Cutter
Power Supply
Power Consumption
The Max current
Cash drawer interface
Signal interface
Dimension
Net Weight
Operating temperature
Relative humidity
Input & output voltage
Carton Content:
- 1 -
V1.0
Direct thermal line printing
8 dots/mm
576 dots/line
100 km
150 mm/sec.
79±1 mm
Max < 80mm
500,000 times
DC24V+10%
2.5A
Max 8A
RJ11 – can support two cash drawers
36PIN Bi-directional parallel port or 25PIN D-SUB serial port
139.2 (W) X 213 (D) X 123 (H) mm
1.135Kgs
5~40℃
10~80%RH
Input: 100-240V, 50/60Hz, MAX1.50A Output: 24V,2.5A,60W
1. Printer
2. Test paper roll
3. Power adapter
4. Power cord
5. Signal cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opoz RP5080 and is the answer not in the manual?

Questions and answers

Summary of Contents for Citaq Opoz RP5080

  • Page 1 CITAQ Opoz RP5080 Opoz RP5080 Printer Installation Guide V1.0 Specification: Printing Method Direct thermal line printing Dot Density 8 dots/mm Printing Density 576 dots/line MCBF 100 km Printing Speed 150 mm/sec. Printing Paper Width: 79±1 mm Max < 80mm Paper Diameter...

  • Page 2: Installation

    CITAQ Opoz RP5080 Installation Control Panel 1. Feed button 2. Error indicator 3. Indicator of paper out 4. Lid button 5. Power switch 6. Power indicator Connecting the Signal Cable Before connecting any of the cables, make sure that both the printer and the host are turned off.

  • Page 3: Connecting The Power Adapter

    CITAQ Opoz RP5080 Insert the 25PIN D-SUB connector into the parallel port of the host unit and fasten the left and right screws. Connecting the Power Adapter: Check the label on the power supply to make sure that the voltage required by the power supply matches that of your electrical outlet.

  • Page 4: Loading Paper Roll

    CITAQ Opoz RP5080 Insert the power plug to the power outlet. The installation is finished and you can turn on the printer now. Loading paper roll: Please choose high quality thermal paper, in order to protect the printer head. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.

  • Page 5: The Self Test

    CITAQ Opoz RP5080 Press the lid button and the upper cover will open. Put the paper roll into the paper-in slot and pull out a small amount of paper. Be sure to note the correct direction that the paper comes off the roll.
