Summary of Contents for MANGA STREET SQUID SMALL

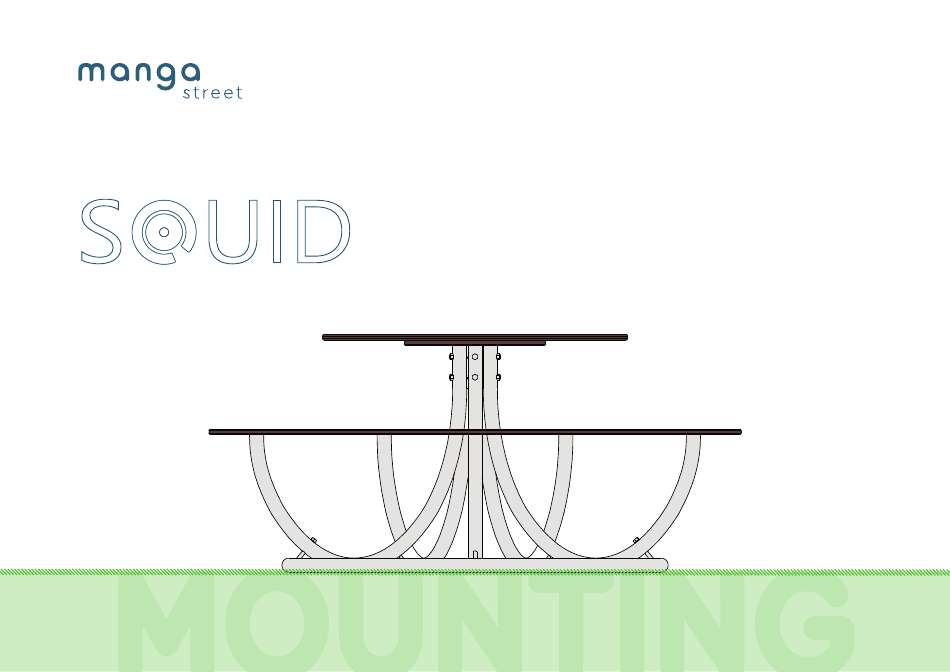

- Page 1 Table of contents Squid Small dimensions S UID Preparation for assembling Squid Small Assembling the Squid table Squid Small care SMALL...
- Page 2 S UID SMALL ASSEMBLED WEIGHT: 45 kg / 99 lbs DIMENSIONS SQUID SMALL FROM ABOVE 34,5 cm /13.6 in 26 cm/10.2 in 23,4 cm 9.2 in PERSPECTIVE 143 cm / 56.3 in 82 cm / 32.3 in 25.5 cm /...
- Page 3 R E C O M M E N D A - TION: table weighs GUIDE RING 45 kg / 99 lbs when assembled. It is rec- ommended to use a pallet lifter if the boxes or the assem- bled table must be moved. MANGA STREET APS Web: www.mangastreet.eu Mail: manga@mangastreet.eu...
- Page 4 5 LEGS = 5 TIMES DETAIL 2 DETAIL 1 5 LEGS = 5 TIMES 1 GUIDE RING 5 LEGS Washer 5 BOLTS (long) Middle M 10 mm x 80 mm piece 5 middle pieces 5 washers MANGA STREET APS Web: www.mangastreet.eu Mail: manga@mangastreet.eu...
- Page 5 DETAIL 6 DETAIL 4 DETAIL 5 SECTIONAL VIEW OF THE ASSEMBLY SECTIONAL VIEW OF THE ASSEMBLY 5 countersunk SCREWS M 10 mm 1 BENCH 1 support 1 TABLE TOP 1 TOP BRACKET 1 BOLT MANGA STREET APS Web: www.mangastreet.eu Mail: manga@mangastreet.eu...
- Page 6 Tips: When it has rained and the table is clean of earth and sand, you can use a squeegee to remove the water so you can sit on it immediately after it has rained. Manga Street does not guarantee MANGA STREET APS against theft or vandalism.
