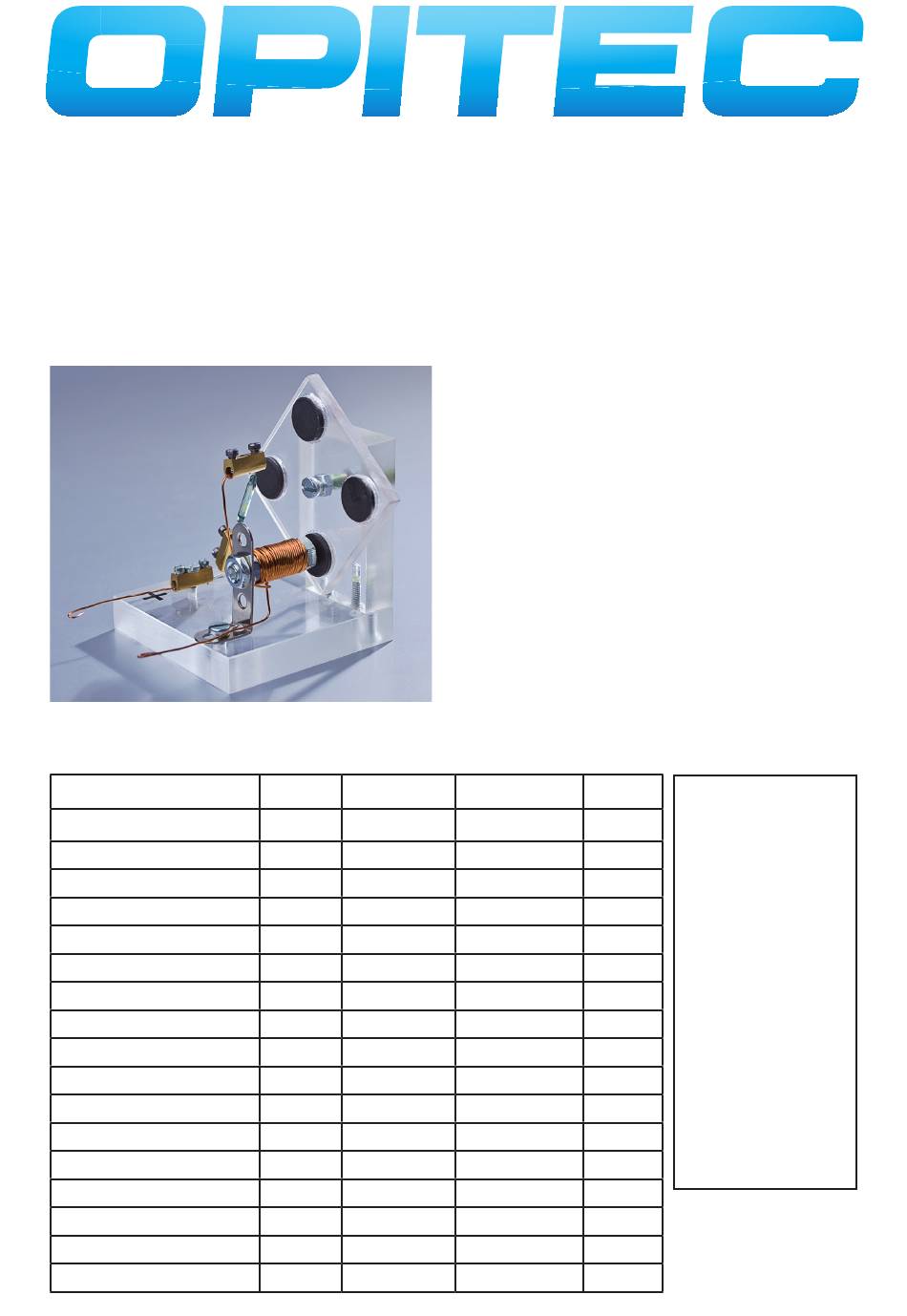

" R e e d c o n t a c t m o t o r "
PARTS LIST
Acrylic
Acrylic
Aluminium strip
Holed metal strip,5 holes
Copper wire
Reed contact
Magnet
Hex head machine screw
Nuts
Nuts
Connection block
Machine screw
Machine screw
Machine screw
Brass bearing
Washer
D111172#1
111.172
P r e m i u m - L i n e
Quantity
Size (mm)
1
100x65x12 Base,end part
1
50x50x5 Drive
1
250x10x2 Coil holder
1
1
2400x0,6 Coil
1
20x2,5x0,6 Reed contact
4
ø15x6 Magnet
1
M6x25 Coil kern
2
M6 Coil fixing
3
M4 Axle fixing
3
2
M4x16 End fixing
1
M4x30 Axle drive
2
M3x10 Holder
1
ø5x15 Rotor bearing
1
ø9/4 Coil holder
Necessary tools:
Fretsaw,hacksaw
Pillar drill
Screwdriver
Drill 2.5,3.3,4,5,6mm
Countersink drill
Forstner bit 15mm
Side cutter
File
Bradawl
All purpose glue
Wet & dry paper
Oil
Description
Part no.
1
2
3
Coil holder
4
5
6
7
8
9
10
Reed contact
11
12
13
14
15
16
Warning!
This product contains small
parts that can be swallowed.
There is a danger of choking.
This product contains a
magnet.
Swallowed magnets can
block the intestines and
cause severe internal injury.
If a magnet is swallowed by
accident contact a doctor as
soon as possible
Please Note
The OPITEC range of
projects is not inten-
ded as play toys for
young children.They
are teaching aids for
young people learning
the skills of Craft, De-
sign and Technolo-
gy.These projects
should only be under-
taken and tested with
the guidance of a fully
qualified adult. The fi-
nished projects are not
suitable to give to
children under 3 years
old. Some parts can be
swallowed. Dan- ger of
suffocation!
