Summary of Contents for VibrAlign Fixturlaser Laser Kit

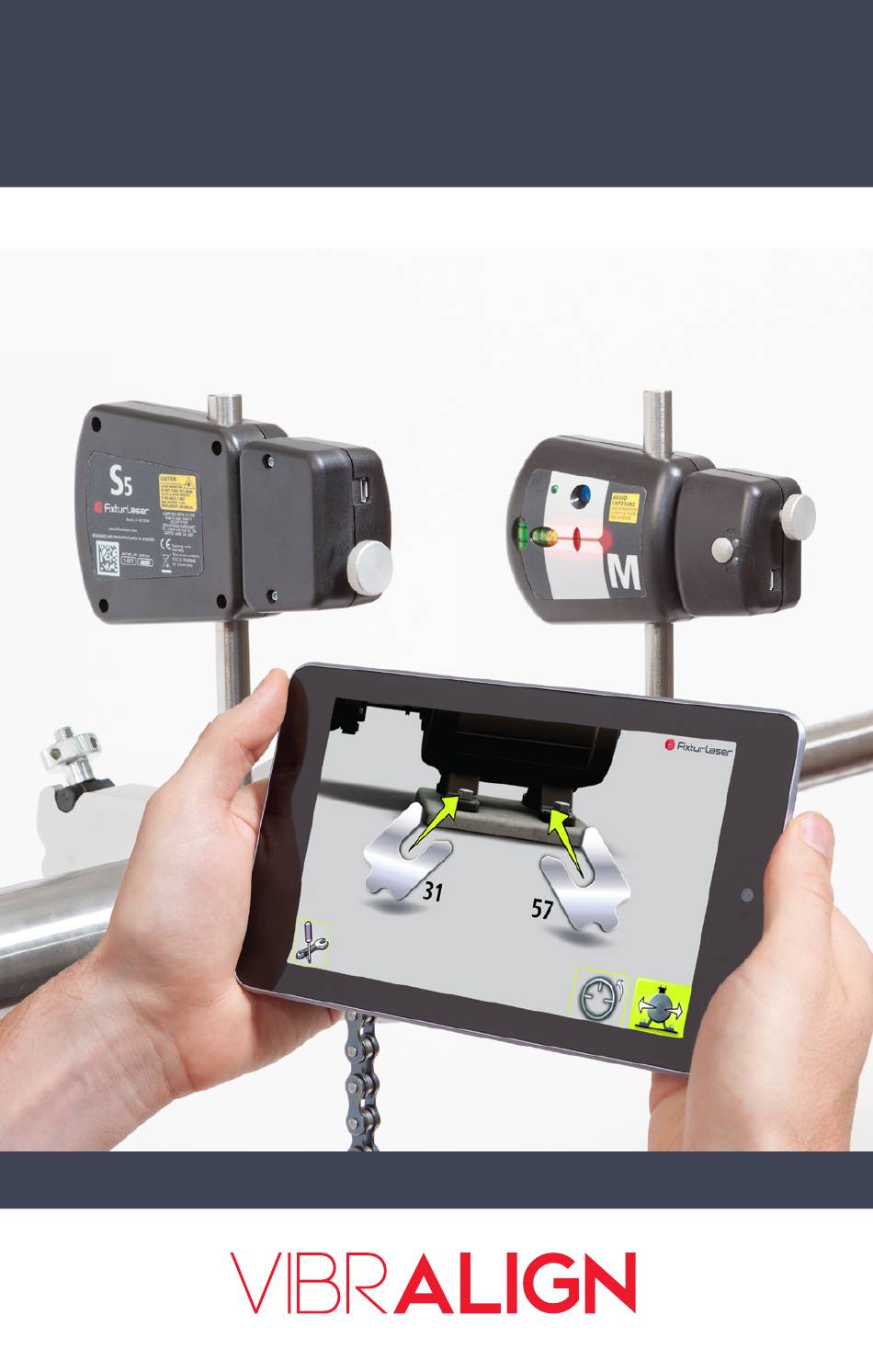

- Page 1 Fixturlaser Laser Kit Fixturlaser Laser Kit ©2015 VibrAlign, Inc. Q U I C K T I P S...
-
Page 2: Rough Alignment
Fixturlaser Laser Kit P R E - A L I G N M E N T Rough Alignment • Vertical: Place scale or straightedge on highest hub and raise or lower the movable shaft to within 20 mils (0.020”) of the stationary hub. - Page 3 Fixturlaser Laser Kit P R E - A L I G N M E N T Bolt Tightening Sequence Make a Final Soft Foot Correction Loosen one bolt at a time and check for soft foot with a 2 mil (0.002”) shim or feeler gauge.
- Page 4 Start the Laser Kit App Ensure Bluetooth is enabled on your device. Click on the Fixturlaser Laser Kit App on your phone or tablet. The app will search for the sensors and con- nect via Bluetooth.
- Page 5 Fixturlaser Laser Kit S E T Aim the Lasers Loosen the adjustment knob of the sensor and slide the sensors up and down until the line laser beams hit the middle of the opposite sensor. Fine tune the line laser beam with adjustment wheel on the opposite side of the sensor.
-
Page 6: Enter Dimensions
Fixturlaser Laser Kit M E A S U R E Enter Dimensions Press the yellow tape measure icon to open the keypad. Measure the indicated dimension to the nearest 1/8”using the keypad. Continue and enter all dimensions. Tape measure icon... - Page 7 Fixturlaser Laser Kit M E A S U R E Measure Misalignment Press the measurement mode icon. Rotate the sensors to the 9:00 position and press the measurement icon. 9:00 position and measurement icon Position the 12:00 sensors within ± 3°...
- Page 8 Fixturlaser Laser Kit M E A S U R E 12:00 position Rotate the sensors to 3:00, measure. The results will be displayed on screen.
-
Page 9: Evaluating The Results
Fixturlaser Laser Kit M E A S U R E Evaluating the Results Vertical results are displayed at the top of the screen, horizontal results at the bottom. Green coupling icons indicate values that are in tolerance. Orange values are within 2x tolerance. - Page 10 Fixturlaser Laser Kit C O R R E C T I O N Using the Verti-Zontal Process ™ First Correct the Vertical Misalignment Press the shim icon in the bottom right corner of the screen. Loosen all the bolts on the movable machine.
- Page 11 Fixturlaser Laser Kit C O R R E C T I O N Continue to adjust the movable machine, watching the live readings, until both the angle and offset are within tolerance. Tighten the bolts using the tightening sequence established in Pre-Alignment.
- Page 12 Fixturlaser Laser Kit R E - M E A S U R E & D O C U M E N T Re-Measure Press the re-measure button. Re-measure to verify the results are within tolerance. If they are not, repeat the Verti-Zontal Correction Process (top of page 9).
- Page 13 A D D I T I O N A L R E S O U R C E S The Fixturlaser Laser Kit was designed to be used with the Fixturlaser Laser Kit App, available for download from iTunes and Google Play.
- Page 14 Fixturlaser Laser Kit Fixturlaser Laser Kit Complete system: Weight including all standard parts: 2,75 kg (6,06 lbs) Displayed resolution: 0,01 mm (0,1 mil with “inch” settings.) Case: Dimension: 357 mm x 305 mm x 96 mm (14,1 in x 12 in x 3,8 in)
- Page 15 In accordance with the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, including amendments by the CE-marking Directive 93/68/EEC & EC directives RoHS 2011/65/EU. Type of equipment: Alignment System Brand name or trade mark: FIXTURLASER Laser Kit Type designation(s)/Model no(s) 1-0976 FIXTURLASER M5 1-0977 FIXTURLASER S5 Manufacturer’s name, address, telephone &...
- Page 16 Fixturlaser Laser Kit Version 1.0 www.vibralign.com 800-379-2250 530 G Southlake Blvd. Richmond, VA 23236 Phone (800) 379-2250 Fax (804) 379-0189 ©2015 VibrAlign, Inc.
