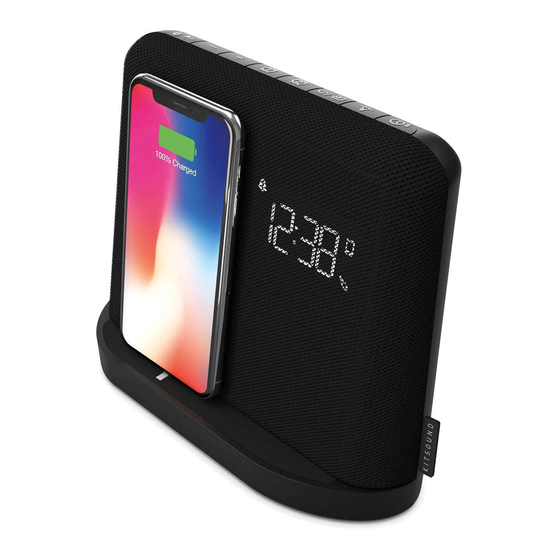

Kitsound KS XDOCK Qi User Manual
  1. Manuals
  2. Brands
  3. Kitsound Manuals
  4. Docking Station
  5. KS XDOCK Qi
  6. User manual

Kitsound KS XDOCK Qi User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
KitSound
KS XDOCK Qi
Qi CHARGING BLUETOOTH SPEAKER DOCK
(Qi logo)
USER MANUAL
Please read this manual carefully before use.
Box contents:
•
KS XDock Qi
•
AC/DC adaptor (UK & US plug attachments)
•
3.5 mm aux cable
•
User manual
Functions
Top view
1. Play/pause/pair/select
2. Previous Track/Volume -/AutoScan -
3. Next Track/Volume +/AutoScan +
4. Alarm 1
5. Alarm 2
6. Standby/Mode
7. Light brightness
8. Sleep/Snooze
Rear view
9. FM antenna
10. Aux-in port
11. DC IN input
12. On/Off switch
Bottom view
13. Battery compartment
Front view
14. Qi charging area
15. Clock face
2
1
12
11
13
14
6
3
7
4 5
8
9
10
15

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS XDOCK Qi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kitsound KS XDOCK Qi

Summary of Contents for Kitsound KS XDOCK Qi

  • Page 1 KitSound KS XDOCK Qi Qi CHARGING BLUETOOTH SPEAKER DOCK (Qi logo) USER MANUAL Please read this manual carefully before use. Box contents: • KS XDock Qi • AC/DC adaptor (UK & US plug attachments) • 3.5 mm aux cable •...
  • Page 2 Screen icons a. Alarm 1 b. Alarm 2 c. Bluetooth mode d. Qi charging device e. FM radio mode Aux mode g. Time display Note: To prevent the overheating of device or product, the KS XDOCKQI has built-in Foreign Object Detection (FOD).
  • Page 3 Paired in Bluetooth® but not playing audio Bluetooth icon (c) - Solid white Aux-in mode Aux icon (f) - Solid white Radio mode Radio icon (e) - Solid white Qi device charging (d) - Solid white Qi charging Qi device finished charging (d) - Off Alarm 1 On - Solid white, Off –...
  • Page 4 How to prevent charge not functioning Note: To prevent the overheating of device or product, the KS XDock Qi has built-in Foreign Object Detection (FOD). This is a safety mechanism that automatically interrupts power delivery if any foreign object that can absorb energy (such as a coin, paper clip, or other metallic/magnetic object) is detected.
  • Page 5 1. With the XDock Qi in standby mode, long press Play/pause (1) and it will automatically enter 24H mode 2. Press Plus Icon (3) or Minus Icon (2) to increase or decrease the hours, then press Play/pause (1) to confirm 3.
  • Page 6 3. Turn your iOS, Android, or Windows device’s Bluetooth ON and search for new devices 4. Select ‘KS XDOCK QI’. If asked for a passcode, enter ‘0000’, and the device will pair 5. An audio tone will sound to confirm pairing and the Bluetooth icon (c) will stop flashing 6.
  • Page 7 Note: The Play/pause (1) and skip track (2 and 3) functions on the XDock Qi will not operate in Aux mode. Note: The XDock Qi’s internal amplifier will go to standby after 15 minutes of no music activity. FM radio To use the FM radio 1.
  • Page 8 We hope you’ve now got all the information you need to get started, but if you’re having problems with anything, please feel free to contact us at: support@kitsound.co.uk 1) Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 9 Hereby, Kondor Ltd declares that the radio equipment type, XDOCK Qi CHARGING BLUETOOTH SPEAKER DOCK, is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://kondor.co.uk/product-documents US Responsible Party Information Name: Mobileistic, LLC Address: 205 Marcus Boulevard, Hauppauge, New York 11788 Telephone: 631-531-9500...
  • Page 10 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The use and operation of this speaker is beyond our control. Warranty of the KS XDock Qi is limited to defects caused by faulty manufacture or defects in materials only. No warranty whatsoever is given or implied for damage caused by the user under any circumstances.
  • Page 11 Please refer to the enclosed manual for further information. (this is from the packaging copy???) JB. 6553_a/Made in China. © KitSound is a trademark of Kondor Limited, 2017 Christchurch, Dorset, BH23 4FL, UK...
