R e s e a r c h & D e v e l o p m e n t
Production: Airmate-Telco

Modification to correct for varying coil voltage to relay RL2.

1. Replace the following components during assembly of the PCB.
Part
Old Part
R6
1K8
Z6
8V2 Zener

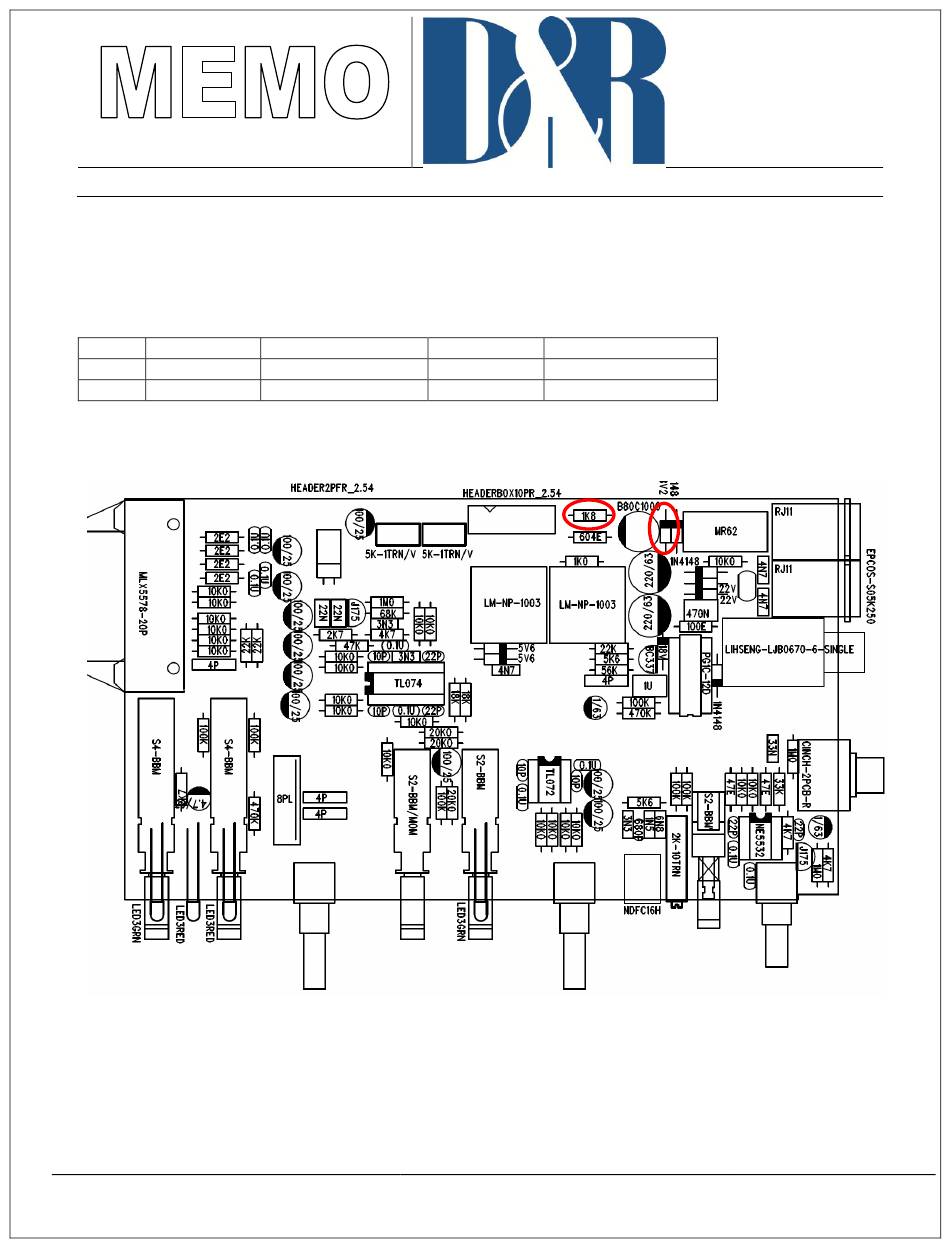

The components are marked with a red cirkel
Airmate-Telco Relay Voltage.Docx
Old Part Number
New Part
10350732
1K5
10250352
9V1 Zener
7-3-2013 Jaac van der
Lindenj.vanderlinden@d-r.nl
D&R Electronica Weesp B.V.
Rijnkade 15B
1382GS Weesp, The
Netherlands
Phone: +31 (0)294 418 014
Fax: +31 (0)294 416 987
Website: http://www.d-r.nl
New Part number
10350731
10250373
Pagina 1 van 1
