Summary of Contents for Iiyama Pro Lite TW1023ASC

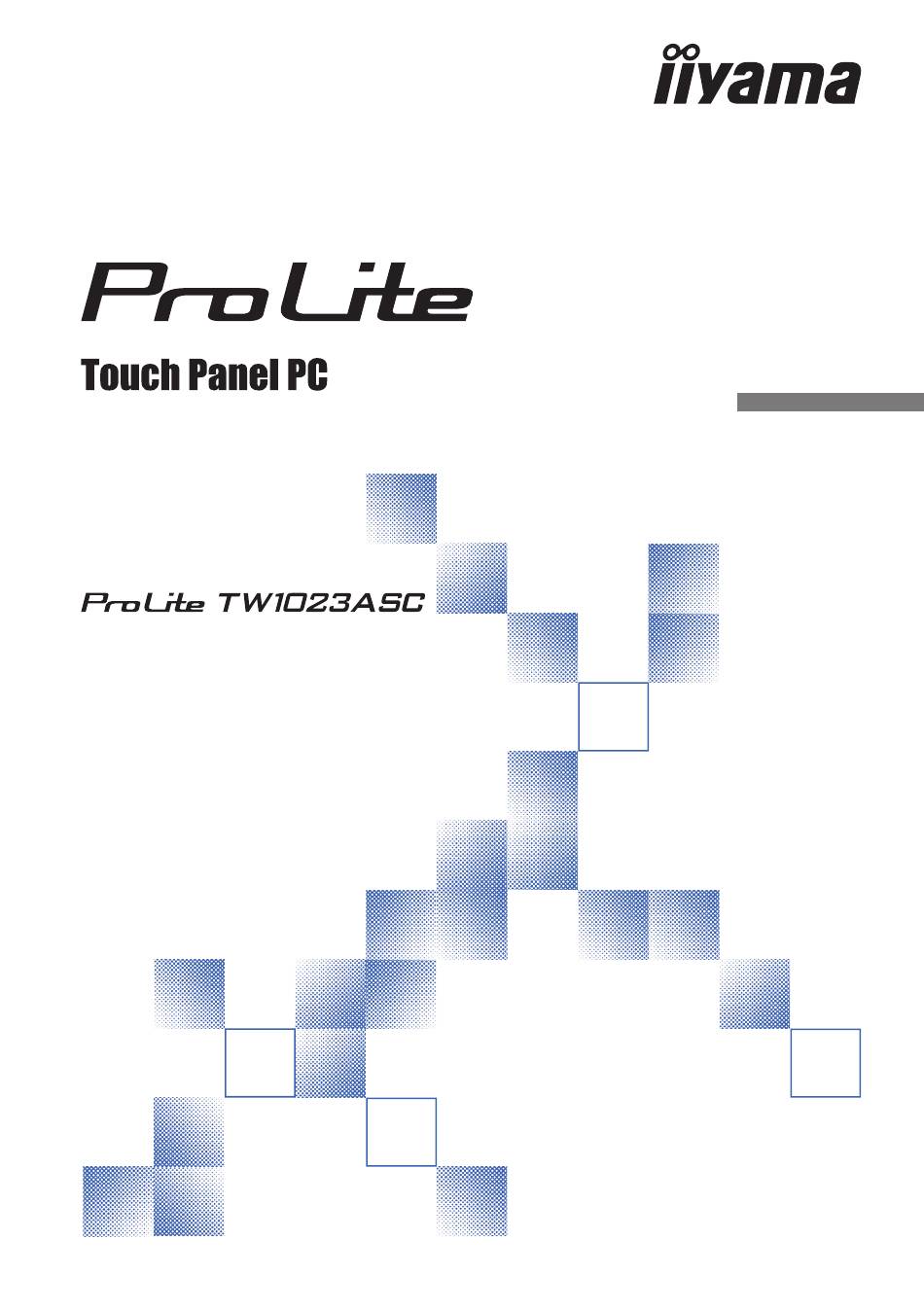

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama Touch Panel PC. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the Touch Panel PC. Please keep this manual in a safe...
- Page 3 Model No. : TW1023A mark: Equipment protected throughout by Double insulation or Reinforced insulation. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD SCREEN ..........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 SPECIAL NOTES ON TOUCH PANEL..........4 BEFORE YOU OPERATE THE TOUCH PANEL PC ......5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 INSTALLATION ................6 CONTROLS AND CONNECTORS..........8 CONNECTING YOUR TOUCH PANEL PC ........9... -
Page 5: For Your Safety
Be sure to operate the Touch Panel PC only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock. CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the Touch Panel PC by fire or electric shock. DO NOT DISASSEMBLE THE AC ADAPTER Disassembling the AC Adapter may expose you to the danger of fire or electric shock. - Page 6 DO NOT TOUCH THE PLUG WITH WET HANDS Pulling or inserting the plug with wet hands may cause electric shock. CAUTIONARY NOTICE ABOUT BATTERY Battery can not be replaceable. If you need to replace the battery, contact your dealer or iiyama service center for safety concern. OTHERS...
-
Page 7: Special Notes On Lcd Screen
SPECIAL NOTES ON LCD SCREEN The following symptoms are normal with LCD screen and do not indicate a problem. NOTE You may find slightly uneven brightness on the screen depending on the desktop pattern you use. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. -
Page 8: Customer Service
CUSTOMER SERVICE NOTE If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the Touch Panel PC when... -
Page 9: Before You Operate The Touch Panel Pc
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the Touch Panel PC. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 10: Installation
INSTALLATION Before installation, please make sure the wall or desktop arm is strong enough to hold WARNING the necessary weight of the Touch Panel PC and the mount. [ WALL MOUNTING ] WARNING When using the wall mounting, consideration of thickness of the mounting stage needs to be taken. - Page 11 [ ROTATING THE TOUCH PANEL PC ] This Touch Panel PC is designed to be compatible in landscape, portrait and face-up modes. Available Camera Camera Camera Landscape Portrait Portrait Face-up Not Available Camera BEFORE YOU OPERATE THE TOUCH PANEL PC 7...
-
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Bottom and Rear> Camera SD Card Slot (SD Card) USB 2.0 Connector (USB) (DC5V, 500mA) USB 2.0 Connector (USB) (DC5V, 500mA) No function RJ45 Connector (LAN) Micro USB Connector (OTG) Headphone Connector ( ) Mini HDMI Connector (HDMI) Connector for AC Adapter ( : Direct current) (DC in) Power Switch (... -
Page 13: Connecting Your Touch Panel Pc
CONNECTING YOUR TOUCH PANEL PC Connect the AC Adapter to the Touch Panel PC first and then connect to the power source. Turn on your Touch Panel PC. NOTE The Class I pluggable equipment Type A must be connected to protective earth. The socket-outlet shall be installed near the equipment and shall be easily accessible. ... - Page 14 [ ATTACHING THE AC ADAPTER PLUG ] Attach the appropriate type of plug to the AC Adapter in the correct orientation. Push the tab to detach the plug from the AC Adapter. Interchangeable Plug AC Adapter 10 BEFORE YOU OPERATE THE TOUCH PANEL PC...
-
Page 15: Fitting And Removal Of Cable Cover
FITTING AND REMOVAL OF CABLE COVER Put a piece of soft cloth on the table beforehand to prevent the Touch Panel PC from being scratched. Lay the Touch Panel PC flat on a table with front face down. [ Fitting ] Put the connected cables through the holes of the cable cover. Fix the cable cover firmly with the screws. -
Page 16: Operating The Touch Panel Pc
OPERATING THE TOUCH PANEL PC The home screen is displayed when the Touch Panel PC is turned on. <System bar icons> : Volume down : Return to exit and the previous page. : Return to the home screen. : Show a list of recently run applications. : Volume up : Display all apps. - Page 17 <Applications> : Install new application. / Manage applications. : Lock application by entering 4 digits password. : Calculator : Calendar : Camera (Webcam) : Chrome : Alarm / Clock / Timer / Stopwatch : Email : Manage files and folders on the device. : Manage images, videos and audio files. : Organize albums. : Manage power-on/off time. : Play audio files. : Search engine : System preferences : Sound recorder...
-
Page 18: Trouble Shooting
TOUCH PANEL PC or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the Touch Panel PC and contact your dealer or iiyama service center for further assistance. -
Page 19: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Technology Projected capacitive 10pt touch Light transmission Touch Screen Hardness Thickness 1.25mm Size Category 10.1" Panel technology Size Diagonal: 10.1" (25.5cm) Pixel pitch 0.1692mm H × 0.1692mm V Brightness 450cd/m (Typical), 382.5cd/m (with Touch panel) Panel Contrast ratio 1000 : 1 (Typical: with Touch panel) Viewable angle Horizontal : 160 degrees, Vertical: 160 degrees (Typical) -
Page 20: Dimensions
DIMENSIONS 255.0mm / 10.0” 4×M4 SCREW HOLE 30.5mm / 1.2” 252.5mm / 9.9” (VESA MOUNT) 75.0mm / 2.9” 27.0mm / 1.1” 16 APPENDIX M257A21...
