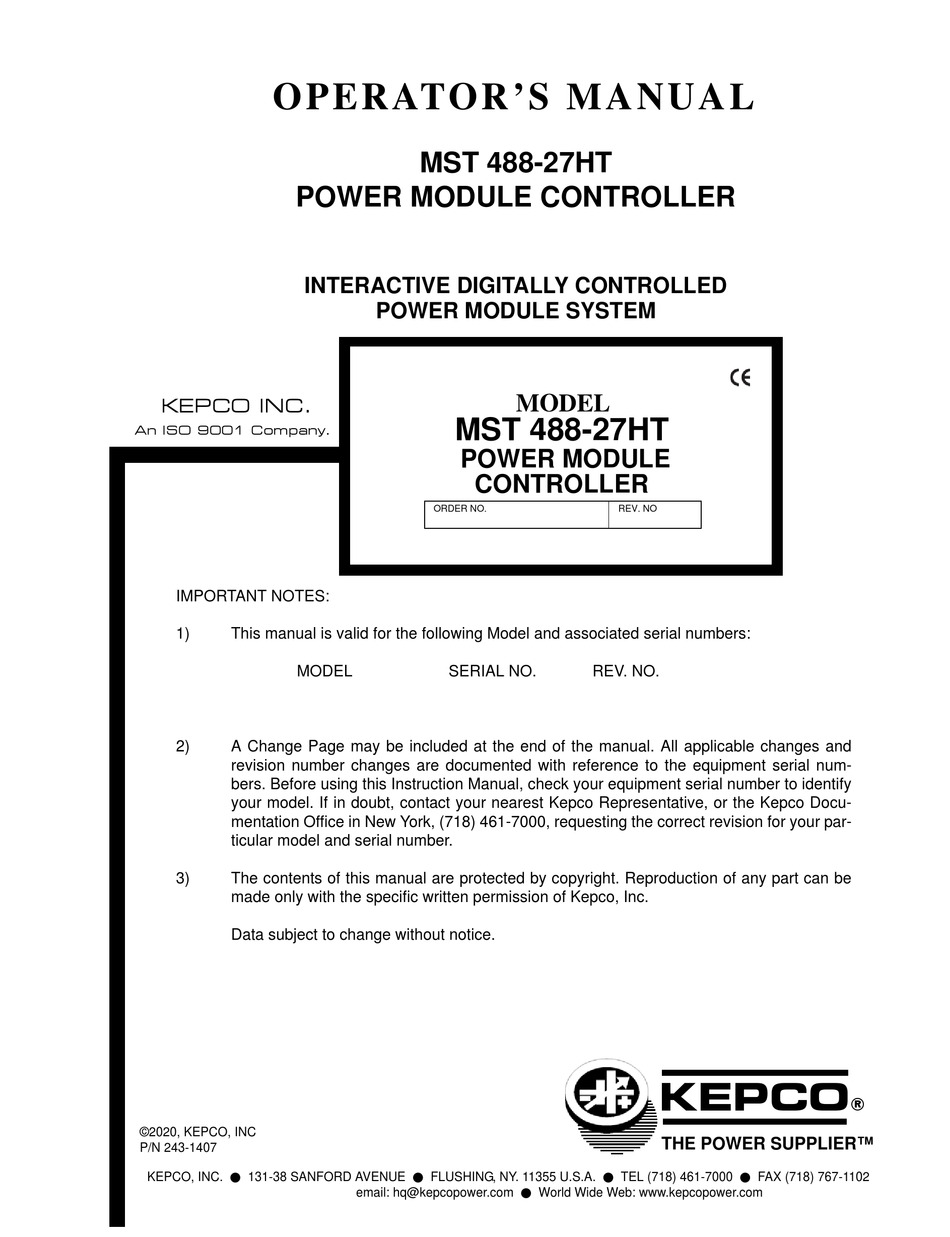

OPERATOR'S MANUAL
POWER MODULE CONTROLLER
INTERACTIVE DIGITALLY CONTROLLED
KEPCO INC.
An ISO 9001 Company.
IMPORTANT NOTES:
1)
This manual is valid for the following Model and associated serial numbers:
MODEL
2)
A Change Page may be included at the end of the manual. All applicable changes and
revision number changes are documented with reference to the equipment serial num-
bers. Before using this Instruction Manual, check your equipment serial number to identify
your model. If in doubt, contact your nearest Kepco Representative, or the Kepco Docu-
mentation Office in New York, (718) 461-7000, requesting the correct revision for your par-
ticular model and serial number.
3)
The contents of this manual are protected by copyright. Reproduction of any part can be
made only with the specific written permission of Kepco, Inc.
Data subject to change without notice.
©2020, KEPCO, INC
P/N 243-1407
KEPCO, INC.
131-38 SANFORD AVENUE
MST 488-27HT
POWER MODULE SYSTEM
MODEL
MST 488-27HT
POWER MODULE
CONTROLLER
ORDER NO.
SERIAL NO.
FLUSHING, NY. 11355 U.S.A.
email: hq@kepcopower.com
REV. NO.
REV. NO.
KEPCO
THE POWER SUPPLIER™
TEL (718) 461-7000
World Wide Web: www.kepcopower.com
®
FAX (718) 767-1102

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MST 488-27HT and is the answer not in the manual?

Questions and answers

Summary of Contents for KEPCO MST 488-27HT

  • Page 1 Before using this Instruction Manual, check your equipment serial number to identify your model. If in doubt, contact your nearest Kepco Representative, or the Kepco Docu- mentation Office in New York, (718) 461-7000, requesting the correct revision for your par- ticular model and serial number.
  • Page 3 (EN61010-1 Cl. 6, Cl. 7, Cl.8, Cl. 9 and EN61010- 1 annex F) 2. This power supply is designed for stationary installation either within an equipment rack or a KEPCO Rack Adapter RA 55 or CA 400.
  • Page 4 SAFETY INSTRUCTIONS 1. Installation, Operation and Service Precautions This product is designed for use in accordance with EN 61010-1 and UL 3101 for Installation Category 2, Pollution Degree 2. Hazardous voltages are present within this product during normal operation. The product should never be operated with the cover removed unless equivalent protection of the operator from accidental contact with hazardous internal voltages is provided.

  • Page 5: Table Of Contents

    SCPI Subsystem Command/Query Structure..................3-3 APPENDIX A - Mainframe 66000© Commands Identical to MST 488-27HT Introduction............................. A-1 APPENDIX B - Mainframe 66000© Commands Supported by MST 488-27HT with Differences Introduction............................. B-1 FUNC:MODE, FUNC:MODE? — Function Mode................... B-1 *IDN? — Identification Query ......................... B-1 Status Register Operation ........................
  • Page 6 Remotely Controlled Power Supply Configurations Using Kepco Products..........1-3 MST 488-27HT Controller Outline Drawing....................1-4 Configuration Controls..........................2-4 Front and Rear Panels of MST 488-27HT Power Module Controller ............2-6 Tree Diagram of SCPI Commands Used with MST 488-27HT Controller..........3-4 MST488-27 SVC 051120...
  • Page 7 LIST OF TABLES TABLE TITLE PAGE General Specifications for MST 488-27HT Controller .................1-2 Accessories ..............................1-5 Device Address Selection ...........................2-2 Input/Output Pin Assignments ........................2-7 IEEE 488 (GPIB) Bus Interface Functions ....................3-1 IEEE 488 (GPIB) Bus Command Mode Messages ..................3-2 IEEE 488 (GPIB) Bus Data Mode Messages ....................3-2 Supported SCPI/IEEE 488.2 Command/query Index ................
  • Page 8 FIGURE 1-1. MST488-27 POWER MODULE CONTROLLER MST488-27 SVC 051120...

  • Page 9: Section 1 - Introduction

    Keysight 66000© Mainframe. Model 27553 is comprised an RA 55H Rack adapter which has nine slots and the MST 488-27HT Controller which is installed in one of the RA 55H slots. The MST 488-27HT Controller is designed to program, control and monitor Kepco MST-MHT Series power modules installed in the remaining slots of the RA 55H which are functional replacements for Keysight 61000©...

  • Page 10: Specifications

    The Host Computer can set the output voltage with current limit, or the output current with volt- age limit. The Host Computer can then have the MST 488-27HT read back the actual output voltage and current delivered by each of the MST power modules to their respective loads. The MST 488-27HT is continually polling all of the power modules on the Control Bus for overvolt- age, overcurrent, and other errors.
  • Page 11 MST 488-27HT 051120...
  • Page 12 FIGURE 1-3. MST 488-27HT CONTROLLER OUTLINE DRAWING MST 488-27HT 051120...

  • Page 13: Accessories

    ACCESSORIES Accessories for the MST 488-27HT are listed in Table 1-2. TABLE 1-2. ACCESSORIES ITEM FUNCTION PART NUMBER Terminator - 5-pin connector Termination for daisy chain on IEEE 1118 bus. 195-0075 Terminator - 9-pin connector 195-0086 Cable - two 5-pin connectors...

  • Page 15: Section 2 - Installation

    GPIB. It is factory preset to address 6. If a different Device Address is required in your system, proceed as follows. There are 31 (0-30) possible choices (See Table 2-1). 1. Place MST 488-27HT power module controller with the top of the unit facing you, front panel to the right.

  • Page 16: Additional Gpib Address Switch Functions

    TABLE 2-1. DEVICE ADDRESS SELECTION SELECTOR SWITCH SECTION DECIMAL (SIGNAL LINE) ADDRESS 2.2.2 ADDITIONAL GPIB ADDRESS SWITCH FUNCTIONS (SEE FIGURE 2-1) The GPIB address switch has two additional program mode bits P1 (DIP switch position A6, see Figure 2-1) and P2 (position A7). P1 and P2 provide a method to enable two common functions of the Mainframe 66000©...

  • Page 17: Set Shield Ground Jumper

    2.2.4 INSERTION To insert the MST 488-27HT Controller in the RA 55 Rack Adapter, proceed as follows: 1. To ensure full engagement of the module interconnect to the RA 55 Rack Adapter, pull out the two slotted captive thumb screws (at the front of the Controller) and turn counterclock- wise until the threads engage.

  • Page 18: Final System Interconnections

    FINAL SYSTEM INTERCONNECTIONS 1. Install the MST 488-27HT in the left-most slot of the RA 55 Rack Adapter (see PAR. 2.2.4). If the rack adapter has a plate used for mounting a power module connector in slot 9, the plate must first be removed to accommodate the MST 488-27HT controller by removing four screws securing the plate to the rack adapter chassis.
  • Page 19 AC INPUT. The MST 488-27HT draws power from the same source used to power the MST power modules. Power is applied through the Rack Adapter via the AC/control bus connec- tor. b. IEEE 488 BUS. This port is a 24 pin IEEE 488 connector and conforms mechanically and electrically to the IEEE 488 standard.
  • Page 20 FIGURE 2-2. FRONT AND REAR PANELS OF MST 488-27HT POWER MODULE CONTROLLER MST 488-27 051120...
  • Page 21 TABLE 2-2. INPUT/OUTPUT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION SGND Signal Ground Receive Data Transmit Data Data Terminal Ready (not used) DATA MONITOR SGND Signal Ground (RS232-C) Data Set Ready (not used) Request to Send (not used) Clear to Send (not used) SGND Signal Ground I/O Line...
  • Page 22 MST 488-27 051120...

  • Page 23: Section 3 - Operation

    Controller No Capability Tables 3-2 and 3-3 define the messages sent to the MST 488-27HT, or received by the MST 488-27HT, via the IEEE 488 bus in IEEE 488 command mode and IEEE 488 data mode, respec- tively. These messages are enabled during the “handshake” cycle, with the MST 488-27HT con- troller operating as either a Talker or a Listener.

  • Page 24: String Parsing

    3.2.1 STRING PARSING When the MST 488-27HT is in listen mode, strings are accepted. When the host controller sends the last byte it can assert the EOI line to indicate the string is complete. The GPIB listener function automatically adds a LF to terminate the string input. The parsing software then pro- cesses the string and if there are valid commands, the power supply is updated with the new control input.

  • Page 25: Scpi Programming

    Figure 3-1 is a tree diagram illustrating the structure of SCPI subsystem commands used in the MST 488-27HT controller with the “root” at the left side, and specific commands forming the branches. The subsystem commands that behave exactly the same as they do in the Keysight 66000©...
  • Page 26 :CLEar [:AMPlitude] :DELay :PROTection [:LEVel] STATus :SENSe? :OPERation :ALC :CONDition? :SOURce :ENABle CURRent [:EVENt]? [:LEVel] :PRESet [:IMMediate] :QUEStionable [:AMPlitude] :CONDition? :TRIGgered :ENABle [:AMPlitude] [:EVENt]? :PROTection FIGURE 3-1. TREE DIAGRAM OF SCPI COMMANDS USED WITH MST 488-27HT CONTROLLER MST 488-27HT 051120...

  • Page 27: Appendix A - Mainframe 66000© Commands Identical To Mst 488-27Ht

    APPENDIX A - MAINFRAME 66000© COMMANDS IDENTICAL TO MST 488-27HT INTRODUCTION This appendix lists the SCPI/IEEE 488.2 commands and queries used with the MST 488-27HT Controller whose function and behavior is identical to the corresponding commands and queries used in the Keysight 66000© Mainframe.

  • Page 29: Introduction

    The string contains the manufacturer name, model, SN, firmware revs. The SN field is normally used for the serial #, but since the MST 488-27HT has no NVRAM, serial #s are not stored in memory; the power module current rating is given instead. The firmware revision con- sists of the controller rev.

  • Page 30: Syst:err

    Previous query data lost. -430,”Query Deadlocked“ Query Error bit 2 Over 255 characters received in single input string The Device error bit may be set when the status monitoring functions of the power supply detect an overvoltage/under- voltage condition. MST 488-27HT 051120...

  • Page 31: System:set Command

    LONG Form: SYSTem:SET {SA0 | SA1 | CM0 | CM1 | SI0 |} Description: Allows the unit to behave as a standard Kepco MST 488-27 Controller (programmer). Sending SYST:SET SA0 disables the default secondary address mode of the MST 488HT controller and causes the unit to revert to the command syntax of the non-HT suffix MST 488-27 Controller (Pro- grammer).

  • Page 32: Trigger[:Sequence]:Source Command

    Short Form: TRIG[:SEQ]:SOUR {HOLD | BUS | IMM} Long Form: TRIGger[:SEQuence]:SOURce {HOLD | BUS | IMM} Description: Selects the active trigger source. Only BUS, HOLD and IMM are supported in the MST48-27HT. EXT LINK and TTLT are not supported. MST 488-27HT 051120...

  • Page 33: Appendix C - Mainframe 66000© Commands Not Supported By Mst 488-27Ht

    APPENDIX C - MAINFRAME 66000© COMMANDS NOT SUPPORTED BY MST 488-27HT INTRODUCTION This appendix lists the SCPI/IEEE 488.2 commands and queries used with the Keysight 66000© Mainframe that are not supported by the MST 488-27HT Controller. TABLE C-1. NON-SUPPORTED SCPI/IEEE 488.2 COMMAND/QUERY INDEX COMMAND/QUERY COMMAND/QUERY...
