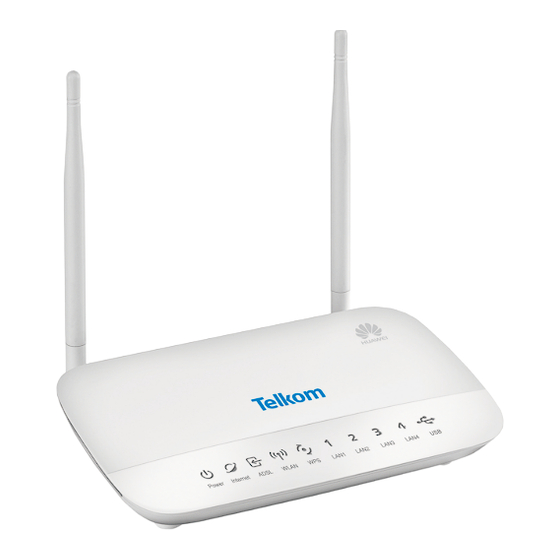

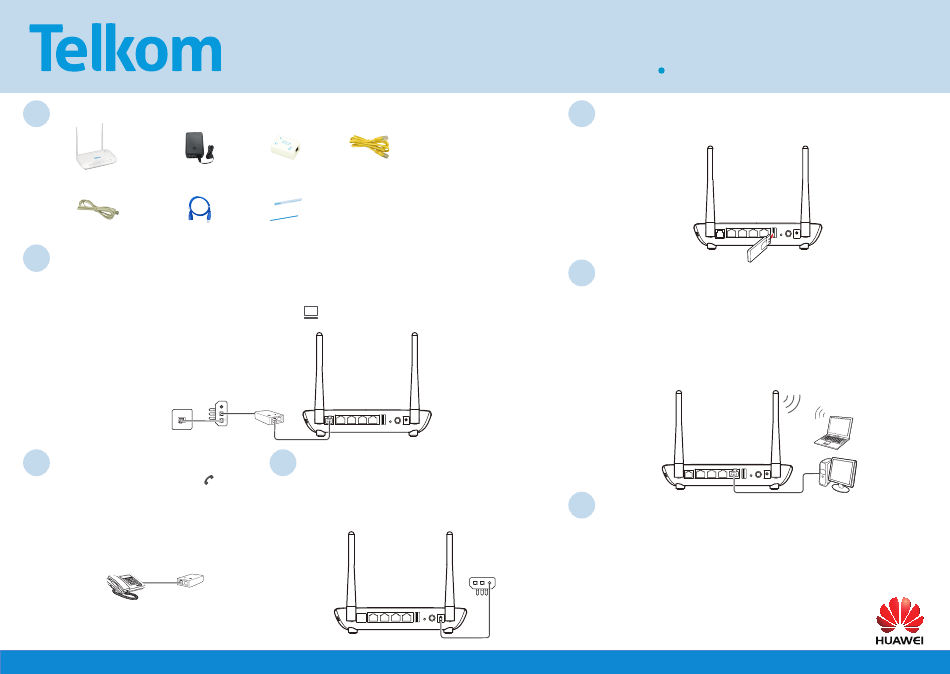

Telkom HG532f Quick Installation Manual

1
Box Contents
3-Pin Surge Protected
HG532f
Power Supply
3 x Telephone Cables USB Cable
2
ADSL Port Connection
Connect the one end of the grey telephone cable to the telephone wall socket. Connect the other end of the cable to the IN socket of
the power supply.
Connect the one end of another grey telephone cable to the OUT socket of the power supply. Connect the other end to the LINE socket
of the splitter.
Connect the one end of the last grey telephone cable to the MODEM
the grey ADSL port on the rear panel of the HG532f.
Telephone
Power Supply
Wall Socket
3
Telephone Set Connection
Connect your telephone to the PHONE
the splitter, using the cable supplied with the telephone.
Telephone Splitter
HG532f Home Gateway Quick Installation Guide
Splitter Ethernet Cable
Documents
socket of the splitter. Connect the other end of the cable to
Splitter
HG532f
ADSL LAN4 LAN3 LAN2 LAN1 USB Reset On/Off Power
4
Power Adapter Connection
Connect the connector at the end of the power supply cable to
socket of
the Power port at the back of the HG532f.
Plug the power supply into the wall outlet and make sure the
wall outlet is switched on.
Press the Power On/Off button on the HG532f to switch it on.
HG532f
ADSL LAN4 LAN3 LAN2
5
6
7
Power Supply
Line Line
IN OUT
LAN1 USB Reset On/Off Power
USB Connection
Optionally, a wireless Internet connection is available using a 3G data card (not supplied).
Storage devices and printers may also be attached via the USB port.
HG532f
ADSL LAN4 LAN3 LAN2 LAN1 USB Reset On/Off Power
Data Card
Connect a device to your HG532f
You can connect a device to your gateway using either the Ethernet cable or Wi-Fi.
Ethernet cable:
• Connect one end of the yellow Ethernet cable to the Ethernet LAN port on your computer.
• Connect the other end of the yellow Ethernet cable to one of the yellow Ethernet LAN
ports on the back of your HG532f.
Wi-Fi:
• Ensure that the WLAN LED light on your HG532f is green. If it does not appear green,
press the WLAN on/off button on the side of the device for one second or more.
• Use the SSID and password to connect your Wi-Fi-enabled device to the HG532f. The
default SSID and password are displayed on the belly label of your HG532f.
HG532f
ADSL LAN4 LAN3 LAN2 LAN1 USB Reset On/Off Power
Configure your HG532f
Launch an Internet browser (Google Chrome, Firefox, Internet Explorer, Safari, and etc.)
on your connected device.
In the URL web address field of the browser, enter 10.0.0.2 and press enter or click Go.
Huawei login screen will display. Enter admin for the user name and admin as the
password.
Please follow the instructions of the configuration wizard that starts automatically.
Laptop
PC
