Summary of Contents for BCP SKY5296

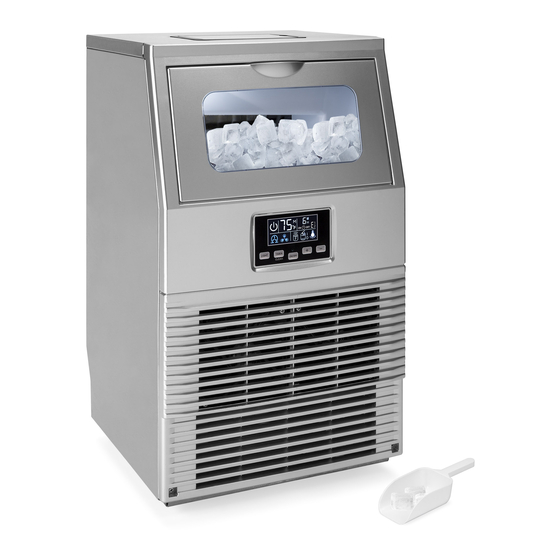

- Page 1 INSTRUCTION MANUAL Commercial Ice Maker SKY5296 Ver. 1...
- Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
-
Page 3: Specifications
NOTICE Please retain these instructions for future reference. • This unit is intended for indoor use only. • Place unit on a stable and level surface. • Keep unit away from direct sunlight and other sources of heat. • Using an extension cord is not recommended as it may overheat and cause a risk of fire. •... - Page 4 SPECIFICATIONS Max Ice Storage 8.8 lbs. Room Temperature 50-90°F Water Supply Temperature 41-77°F Water Supply Pressure 0.04-0.6 MPa PARTS FAUCET ADAPTER WATER HOSE DRAIN HOSE ICE SCOOP 1 PC 1 PC 1 PC 1 PC DIAGRAM ICE-MAKER/ WATER WATER TANK TANK LID ICE BIN (INSIDE)
- Page 5 ICE MAKER/WATER TANK WATER SEEPING PIPE Water seeps from holes into the ice cube module ICE CUBE MODULE WATER SUPPLY PIPE ICE DETECTING BOARD WATER LEVEL DETECTOR (INSIDE) WATER CIRCULATION TANK WATER PUMP (INSIDE) WATER DRAIN PIPE Pull pipe out to manually drain water (if necessary) MAX FILL INDICATOR WATER TANK...
-
Page 6: Control Panel
CONTROL PANEL LIGHT: Turn internal light on/o . Press and hold to toggle between Fahrenheit and Celsius. TIMER/CLEAN: Press to set the timer. Press and hold to enter cleaning mode. ON/OFF: Press to turn unit on/o or cancel timer. Press and hold to forcefully switch from ice making to ice harvesting. -
Page 7: Usage Tips
SETTING UP THE ICE MAKER NOTE: If manually filling with water, skip to step 5. Remove the locking ring from the water inlet. Compress the plug, then remove it. Insert the part B water hose into the water inlet and secure it by replacing the locking ring. Screw the part A faucet adapter onto the water faucet. -
Page 8: Setting Timer
OPERATING INSTRUCTIONS Press the ON/OFF button to turn on the ice maker and it will automatically start filling the water tank to begin the ice making process. If manually filling with water, open the lid and fill the water tank to max capacity (approximately 3.5 liters). -
Page 9: Cleaning And Storage
CLEANING AND STORAGE • To put the ice maker into long storage, do the following: Turn o the unit, unplug it, and remove all the ice cubes. Shut o the main water supply, then remove the water hose from the water inlet and faucet. Pull the water drain pipe out from within the ice maker to manually drain water (see Draining Water section). -
Page 10: Error Codes
ERROR CODES CODE PROBLEM Ambient temperature sensor not functioning Ice making problem or leak TROUBLESHOOTING PROBLEM REASON SOLUTION Turn on water, increase water pressure, No water supply or clean water hose Add water indicator Water level detector not functioning Clean water tank and water level detector always on Water leaking from water tank Make sure unit is level... - Page 11 Earn points while you shop. Join today! Give your friends 15% o their first order! For each successful referral you’ll receive 100 points. bestchoiceproducts.com...
-
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
