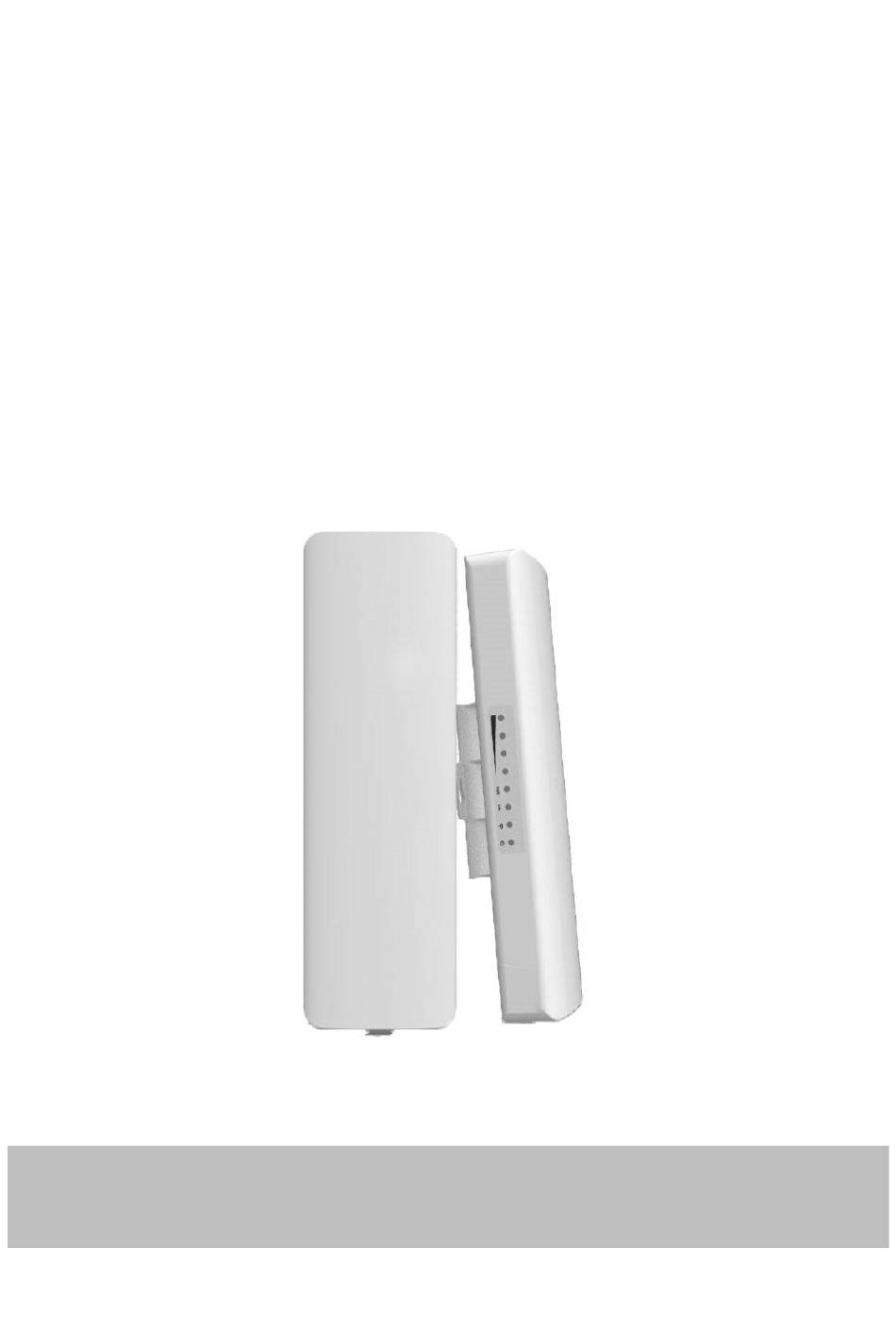

- Page 1 Longevity LGAP300 5.8GHz Wireless AP User Manual...
-
Page 3: Table Of Contents
Table of Contents Important Safeguards and Warnings................2 Electrical Safety Information................... 2 Notice Information.....................2 Introduction........................3 Package Contents......................3 Device Layout........................4 Installation - Pole mounting..................5 Installation - Wall mounting...................6 Connection Diagram...................... 7 Device Setup........................8 Bridge Mode (Station - Secondary Site)............... 9 Access Point (AP) Mode.................. -
Page 4: Important Safeguards And Warnings
All trademarks and registered trademarks are the properties of their respective owners. Please visit our website www.rhinoco.com.au for more information. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au... -
Page 5: Introduction
Introduction Longevity LGAP300 is designed for long distance transmission of IP packets which is commonly used in PC network and network cameras. It has four working modes: Access Point, Bridge, Repeater and Router. Package Contents Confirm that the following parts are included: Longevity LGAP300 User Manual V1.3 Issued 2020-5-6... -
Page 6: Device Layout
Device Layout Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 4 ----... -
Page 7: Installation - Pole Mounting
Installation - Pole mounting Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 5 ----... -
Page 8: Installation - Wall Mounting
Installation - Wall mounting Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 6 ----... -
Page 9: Connection Diagram
2. Connect the LAN port of the Longevity LGAP300 to your PC/Laptop or IP camera’s Ethernet port with an Ethernet cable. 3. Connect the WAN port of the Longevity LGAP300 to the POE port of the POE injector with an Ethernet cable. -
Page 10: Device Setup
Restart the browser and try again. (Internet Explorer or Microsoft Edge is recommended) 4. Input the password and click Login. The default password is admin. 5. Click the Wizard icon on the left panel to select operating mode. Longevity LGAP300 has 4 working modes: Bridge, Access Point (AP), Repeater and Router. Mode... -
Page 11: Bridge Mode (Station - Secondary Site)
Click Scan to scan all available WiFi signal. (Only 5G WiFi signal will be displayed.) iii. Click to select the WiFi to be bridged. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 9 ----... - Page 12 Input the WiFi password of the select WiFi and click Finish to complete setup. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 10 ----...
-
Page 13: Access Point (Ap) Mode
Enter a unique wireless network name (SSID) in the Local SSID field and then a 8-32 characters password. Leave other settings as default values. iii. Click Finish to complete setup. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au... -
Page 14: Repeater Mode
Change the IP address and subnet mask if required then click Next to continue. Click Scan to scan the WiFi to repeat. iii. Click to select the WiFi to repeat. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 12 ----... - Page 15 Input the WiFi password of the select WiFi and click Finish to complete setup. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 13 ----...
-
Page 16: Router Mode
Input the static IP address for the router then Click Next to continue. Input the SSID in Local SSID and customize the password in Password. Click Finish to complete setup. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au... -
Page 17: Application 1 - Network Extender Using Bridge Mode
In this example, one device works in AP(Access Point) mode and another one works in Bridge mode(Client). Note: Must use different IP address for the AP(Access Point) and Bridge client. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au... -
Page 18: Application 2 - Network Video Recorder + Camera
Application 2 - Network Video Recorder + Camera Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 16 ----... -
Page 19: Installation Considerations
100% hit rate (0% loss). The connection between the PC and the receiver is established. Now test the connection between the transmitter and receiver: Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au ---- 17 ----... - Page 20 A: The default password is “admin”. Q: Web browser displays incorrectly. A: Clear the cache and cookies data of the browser. Close the browser and open again. Longevity LGAP300 User Manual V1.3 Issued 2020-5-6 Copyright © Cornick Pty. Ltd. 2020 http://www.cornick.com.au...
