Summary of Contents for Mini TS100
- Page 1 Instruction Manual Version 1.0.1 Please read this manual before operating the TS100(this instruction manual is based on APPV2.11...
- Page 2 WARNING:Failure to comply a WARNING may result in serious ！ injury to the user or others. Content CAUTION:Failure to comply ！ a CAUTION may cause damage to the product or other equipments. NOTE:Annotations,operation notes or additional information. Safety Statement Overview Power Adaptor Selection Operation...
- Page 3 S a f e t y S t a t e m e m t 1.1 General Safety Use only certified power source/adaptors from your region. (please refer to 3.0 for specifications) Do not operate in humid environment. Do not operate in inflammable/explosive environment. Keep the surface of the product clean and dry.
- Page 4 • After continuous use up to 40 minutes, the handle surface temperature will reach 50℃~60℃. • For the first time using, TS100 may generate a light smoke due to the heating of heating elements, which is a normal phenomenon. 1.5 Liability Statement Any damage of the product,or losses related to the product damage, if it’s man-caused,or assumed to be man-caused,the liability will belong to...

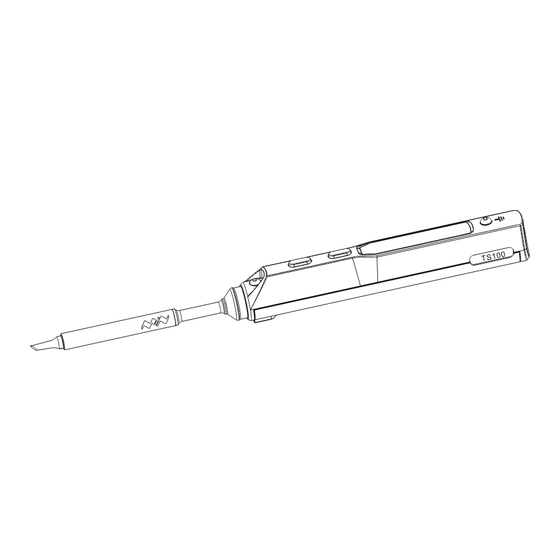

- Page 5 O v e r v i e w 2.1 Ports and Control Panel Introduction 1.The tip setscrew 2.Button A 3.Button B Ground cable fixing screw Power connector Micro USB DC5525 12-24V port Soldering tip port Soldering tip connector Soldering tip heating end...
- Page 6 O v e r v i e w 2.2 Specifications Screen OLED Micro USB USB port DC5525 Power port Length:96mm，Diameter:16.5mm Operation unit Dimensions Heating unit Length:72+33mm，Diameter:5.5mm Weight 33g(power adaptor not included) 2.3 Operation Specifications Power 100℃~400℃（max） Temperature range Temperature stability ±2% Operation temperature under heat 40℃...
- Page 7 Before connecting DC5525(12-24V)power adaptor,check if the adaptor is in good condition as below standard. We would recommend the DYS404-190210V (19V,2.1A)power supply as an accessory for TS100. Time required to increased tip Operation voltage Power Electric current temperature from 30℃ to 300℃...
- Page 8 1. Loosen the tip setscrew, insert the soldering tip connector and tighten the screw; 2. Connect the ground wire to the ground wire setscrew ; 3. Connect the DC connector to TS100, connect the power cord and turn on the power accordingly. 4.2 Default Settings Note: If the screen displays "sen-err when it’s plugged, means the soldering iron tip is not properly...
- Page 9 4.3 Basic Control 4.3.1 Screen Display Press Ver2 01 When plugged into DC12-24V power adaptor ,TS100 will display its logo, Version number and its standby screen in sequence. DFU1.0 When plugging into DC 12-24V power adaport ,pressing Button A at the sametime will enter DFU mode,"DFU1.0"...
- Page 10 Ca l_ V Ca l_ X Display shows when calibration is succedd. Display shows when calibration failed 24℃ Long press any button to exit thermometer mode Note: Calibration shall be done when TS100 in room temperature...
- Page 11 4.3 Basic Control 4.3.3 Heating up 300℃ Pres s When pressing Button A in standby mode,TS100 will heat up to preset temperature 300℃ When OLED displays as picture, means it’s ready for soldering In operation mode, holding both buttons for 3 senconds will return to standby mode...
- Page 12 2 4 6℃ 2 0 0℃ Release Button A when display reads the expected temperature, and TS100 will automatically adjust to it. 300℃ Temperature up: In temperature adjusting mode, hold Button B for at least 2 seconds, until display reads the temperature you want.
- Page 13 Remark: Maximum temperature: 400℃ Minimum temperature:100℃ 298 ℃ When TS100 temperature stabilizes for 60 seconds,it will automaticall yenter feedback mode, temperature status will feedback every 5-8 seconds The last digit on the right end of the display shown as below...
- Page 14 O p e r a t i o n 4.3 Basic Control 4.3.5 Sleep Mode 200℃ In operation mode, when leaving TS100 for more than 180 seconds( 3 minutes in Default) will trigger the sleep mode, and temperature will automactically adjust to preset sleep temperature.
- Page 15 Turn_Off_v 9-12V TS100 will return to stadby mode TempShowFlag Temperature unit selection ℃，1 is ℉ ℃ Temperature calibration No manual ZeroP_Ad parameter, TS100 automatical setting required adjustment Notice: Preset parameter(s) will be updated to TS100 after saved.
- Page 16 S o l d e r i n g I r o n T i p 5.1 Changing Soldering Tips 1.Unplug TS100 before changing. 2.Loosen the tip setscrew. 3.Pull out the tip, replace with another one. 4.Tighten the screw. Note: When TS100 displays "sen-err", it means the soldering iron tip is not installed properly.
- Page 17 S o l d e r i n g I r o n T i p 5. 2 Choosing Soldering Iron Tips Note: Choosing the right tips will help you to work more efficient 1 0. 0 10.0 15.0 11.5 TS-D24 TS-K TS-BC2...
- Page 18 "Soldering iron tip maintenance" Check 1:Is the TS100 overheating? Problem 5:OLED shows "Warning!" Is TS100 temperature higher than the maximun operation temperature When temperature is lower than maximum operation temperature, the warning sign will disappear and it will...
- Page 19 6.Using impure solder or solder that contains low proportion of tin Checl:Is the voltage lower than default(10V) Problem 9:TS100 return to standby mode Wait until voltage recovers , it could work during operation normally when the voltage is over 10V...
- Page 20 7.2 Default Parameter Setting Tips are consumables, once it’s used, no replacement will be provided. Connect TS100 to your PC with USB data cord, OLED will display "CONFIG" and means it's in setting mode. Open config.txt file from the USB drive, set the...
- Page 21 7.3 Firmware Update 1.Visit www.miniware.com.cn and download the latest TS100 firmware to your PC. 2.Connect TS100 to your PC with USB data cord,meanwhile,press TS100’s Button A to enter DFU mode once a “DFU1.0” notice appears on the screen. A virtual disk with 8 serial numbers will appear on your PC.
- Page 22 L e g a l S t a t e m e n t s 8.1 Disposal Do not dispose this product with domestic waste Handling and recycle:Disposal of the product shall be manipulated according to laws and regulations in your area.
