Summary of Contents for Proliphix EPA-20

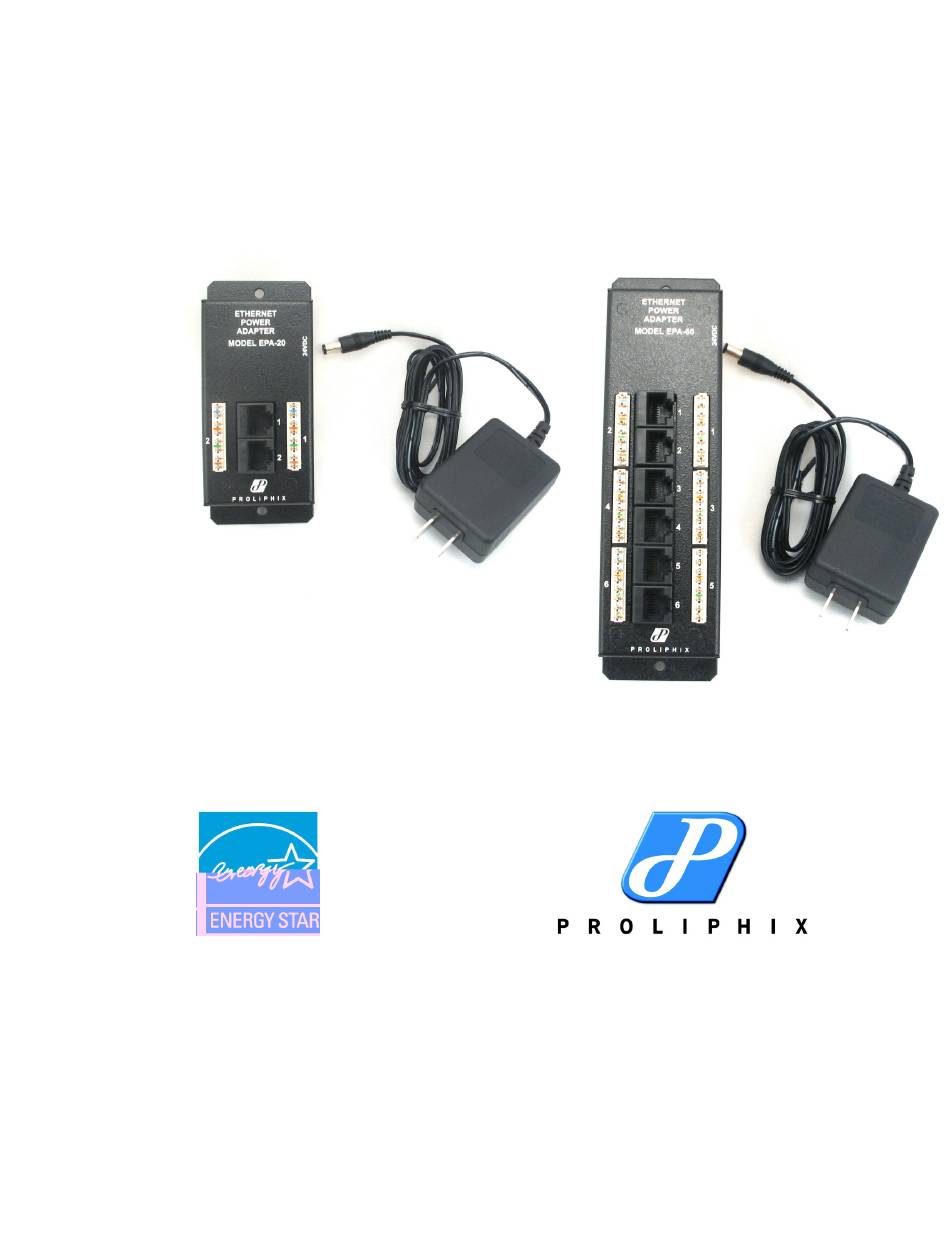

- Page 1 Proliphix EPA-20 and EPA-60 Installation Guide Release 1.0 Part No. 600-01004-000, Rev. 2 April 2008...
- Page 2 Network Thermostats, Ethernet Power Adapters and Thermal Sensors from the date of purchase. Proliphix shall not be liable to honor the terms of this warranty if the product has been used in any other application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, acts of God, modification, or improper installation procedures.
- Page 3 Return Material Authorization (RMA) number. Products may be returned for credit, exchange, or service with a Proliphix RMA number and with proof of purchase. Enclose a note explaining the symptoms of the problem, stating the RMA number, and the name, address and phone number of the company or individual contact.
- Page 4 Beta Draft Confidential Proliphix EPA-20 and EPA-60 Installation Guide, Release 1.0 Part No. 600-01004-000, Rev. 2...
- Page 5 EPA-20 and EPA-60. Do not power the EPA-20 or EPA-60 with Caution any other power supply. You can attach up to two Proliphix thermostats to a single EPA-20 adapter and up to six Proliphix thermostats to a single EPA-60 adapter. Note...
- Page 6 EPA. The EPA 110 block is wired as a T568A terminal, so both Caution ends of the same wire must use the same scheme. Attach the other end of the CAT5, CAT5E, or CAT6 cable to the Proliphix thermostat. Refer to Figure 1 to wire the EPA-20.
- Page 7 CAT6 Jack port(s) to a router or Ethernet switch. The patch cable should be a straight through cable. Note Do not apply power until the Proliphix thermostat is attached to the other end of the CAT5, CAT5E, or CAT6 cable(s). Plug the 24VDC power supply into the Caution adapter which supplies power to the Proliphix thermostat attached to the adapter.
- Page 8 Beta Draft Confidential Mounting and Wiring the EPA-20 and EPA-60 Proliphix EPA-20 and EPA-60 Installation Guide, Release 1.0 Part No. 600-01004-000, Rev. 2...
