Summary of Contents for Dematech Dema-Craft 60l
- Page 1 www.dematechsa.com | info@dematechsa.com | +27 (0) 21 385 0483 13 Michigan Street, Airport Industria, 7490, Cape Town, South Africa...

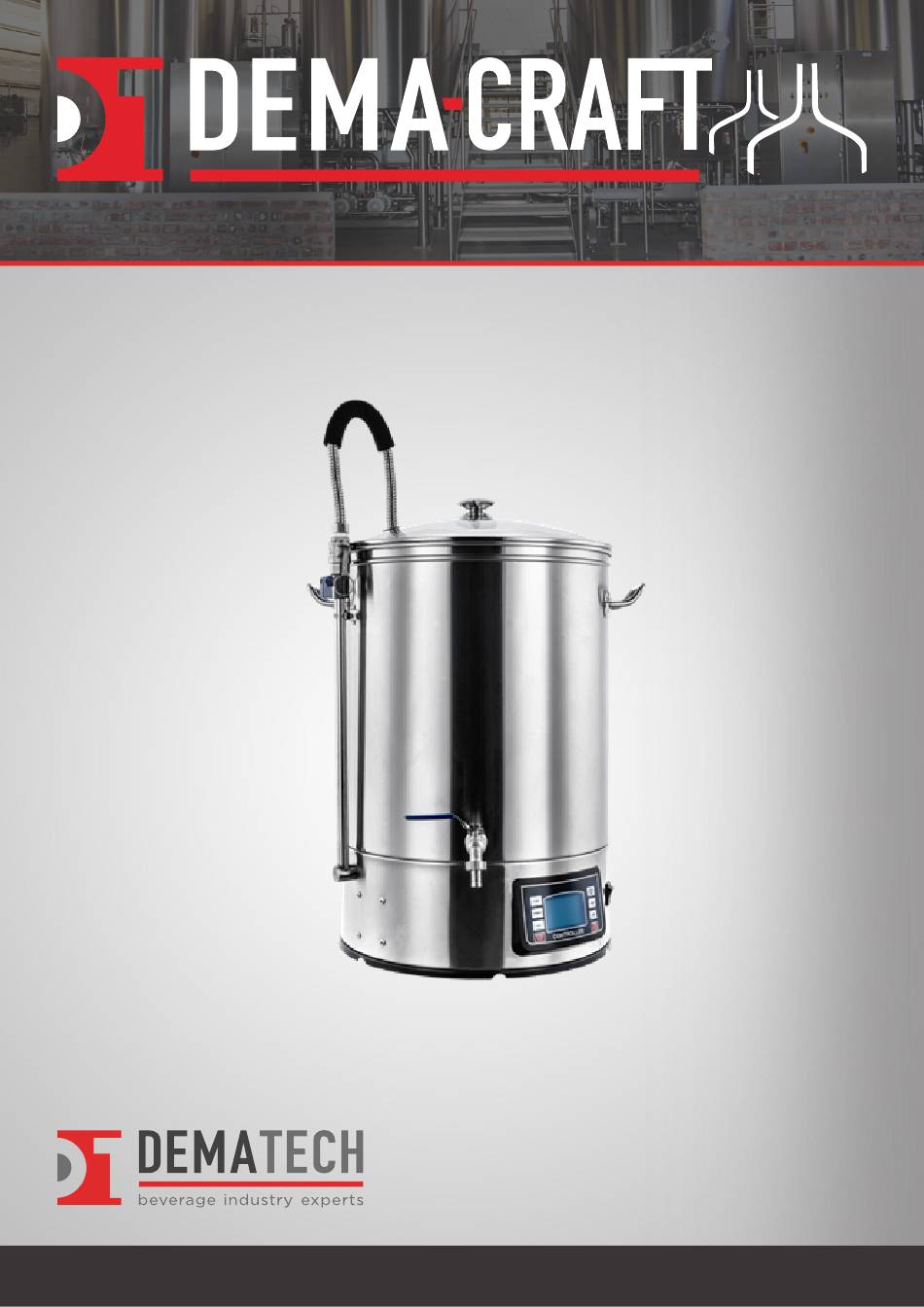

- Page 2 English English Dema-Craft 60l Operation Manual www.dematechsa.com Head Office: Cape Town, South Africa info@dematechsa.com Office Number: +27 (0) 21 385 0483 13 Michigan Street, Airport Industria, 7490, South Africa Thank you for purchasing the Dema-Craft. Please follow the instructions to get the best use from your brewing vessel.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS • Read all the instructions carefully, and keep this manual for future reference. • Check the products rating label and make sure the brewing vessel voltage is fit for your outlet voltage before using. • Do not use the device if the cord or plug is damaged. •... -
Page 4: Additional Accessories
PARTS PARTS Top sparge plate Bottom sparge plate Grain basket Grain basket handle for grain basket for grain basket Glass lid cover with Circulation pipe Telescopic overflow hole for circulation (Cam-lock tube + adjustable for pipe connector) half batches White screw cap Filter tube Screw nut cover... -
Page 5: Operation
OPERATION OPERATION Switch operation The switch “PCB” is the ON/OFF switch for the power to the Digital Controller that controls the heating elements. The switch “PUMP” is the ON/OFF-switch for the pump. If the Switch is on you will see a red light Switch ON Switch OFF... - Page 6 Circulation tube assembly Now it’s locked Insert circulation To lock, push the Direct the hose and ready to pipe into the Cam-lock levers through the use. cam-lock down. glass lid connector. Note: • Adjust the flow rate using the blue valve. If the flow is too fast, the grain basket will overflow down the central pipe, and the bottom of the boiler may run dry.
- Page 7 Grain basket assembly Use the handle to lower When the mashing is When adding the mash the grain basket into the completed, use the handle water and grains, Dema-craft. Make sure to lift the Grain basket up remove the top sparge that the supports on the and hook its bottom plate and add the grain...
-
Page 8: How To Use The Controller
HOW TO USE THE CONTROLLER? HOW TO USE THE CONTROLLER? Control Panel and Key Functions Temp button Press to set target temperature for each step Power button Press to set power for each step Press to set timer for each step Timer button - button Press to reduce the value... - Page 9 Manual Mode Setting 1. Switch on the PCB switch, then press the MANUAL/PAUSE button to enter manual mode. 2. Press the TEMP button. The temperature set-point (S/T: XX.X°C) at the bottom right of the screen will flash and you can use the – and + buttons to set your temperature. 3.
- Page 10 4. Press the TIMER button. The time (XX min) at the top right of the screen will flashing and you can use the – and + buttons to set your countdown timer. 5. Once the TEMP, POWER and TIMER have been set, press the START/STOP button to start the machine.
- Page 11 Auto Mode Setting 1. Switch on the PCB switch, then press the AUTO/PAUSE button to enter auto mode. S1 (Stage 1) will be displayed in the top left corner of the screen. 2. Press the TEMP button. The temperature set-point (S/T: XX.X°C) at the bottom right of the screen will flash and you can use the –...
- Page 12 5. After you have set the parameters for S1, press AUTO/PAUSE button again. S2 (Stage 2) will be displayed in the top left corner of the screen. Set the TEMP, POWER and TIMER parameters as above. 6. Repeat the process above for S1 through S9. The program will automatically go into boiling after step 2.
- Page 13 Saving brewing recipe 1. After setting your brewing recipe in auto mode, press STOP button until you are back at the main page (only the temperature is displayed). 2. Press MANUAL/PAUSE button to enter the manual mode edit page 3. To save the settings that you have just set in auto mode, long press the MANUAL/ PAUSE button for 5 seconds then release it.
-
Page 14: Let's Brew
Recipe Selection in Auto Mode Press the START/STOP button until you are back at the main page (only the tempera- ture is displayed). Long press the POWER and TIMER buttons for 5 seconds. R0 (recipe 0) will display at the top left of the screen. Press the - or + buttons to scroll between the recipes. -
Page 15: Maintenance
Brewing Process (example) • Always clean the brewing vessel before and after use. • Attach the Bazooka filter to the inside tail of the tap using the included hose clamp. • Add the required quantity of strike water before switching the brewing vessel on. •... -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS TROUBLESHOOTING TIPS Ingredients stuck in the pump Flush the pump by connecting a hose to the outlet of the pump. If that fails, dismantle the pump to remove the ingredients. Failing to reach 100 Put the lid on to see if it comes to a boil. If that fails, do a temperature correction as de- scribed below. - Page 17 2895 m. 9500 ft. 90 ºC 194 ºF 10000 ft. 3048 m. 89.5 ºC 193 ºF BREWING RECIPES BREWING RECIPES Feel free to contact our brewmasters at info@dematechsa.com for brewing recipes in any style which works perfectly for the Dema-Craft 60L...
- Page 18 www.dematechsa.com | info@dematechsa.com | +27 (0) 21 385 0483 13 Michigan Street, Airport Industria, 7490, Cape Town, South Africa...
