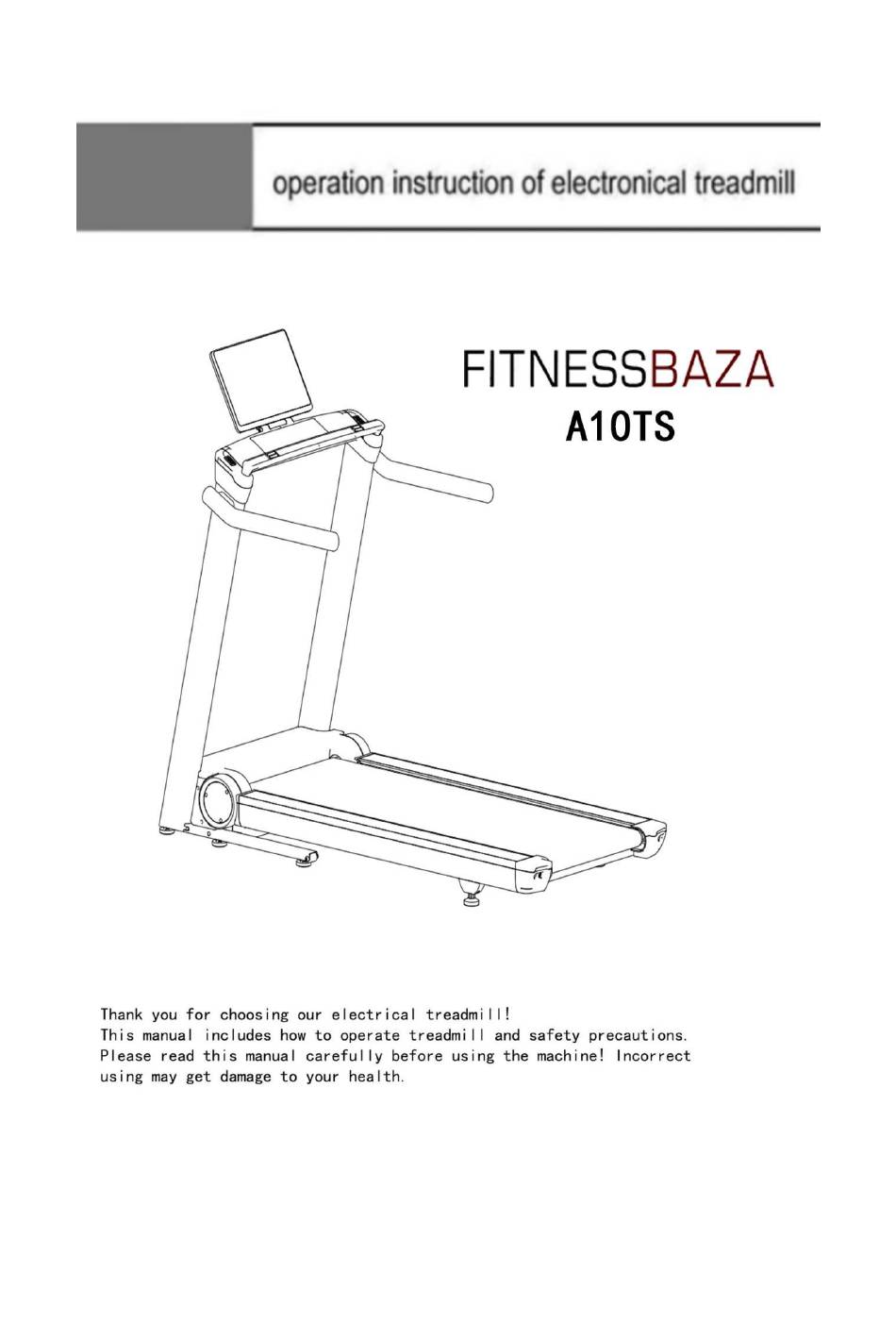

FitnessBaza A10TS Operation Instruction Manual

Electronical treadmill
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the A10TS and is the answer not in the manual?

Questions and answers

Related Manuals for FitnessBaza A10TS

Summary of Contents for FitnessBaza A10TS

  • Page 3: Table Of Contents

    Contents 1 Important safetyprecautions……………………………………….………..2 2 Main technical parameter ………………………………………….………….3 3 Diagram ….………………………………………………………….…………..4 4 Assembly instruction……………………………………………….……..…..5 5 Description of display………………………………………………….……….8 6 Adjustment …….……………………………………………………….……….8 7 Operation manual of TFT screen……………………....………..9 8 Daily maintenance …………………..…………………………….………….18 9 Common failure and maintenance ………………………...……….....20 10 Chart of safety area………………………………………….……..…….……21...

  • Page 4: Important Safetyprecautions

    Important safety precautions Important note: The instruction is for the series of A10S, if the configuration is inconsistent with the treadmill that you purchased, please take the one you purchased as standard. Warning: in order to avoid any injury before using this electrical treadmill please read all instructions and warnings carefully! We won’t take the responsibility if the user operates the machine Incorrect.
