Operating and Maintenance Instructions
Submersible Mixer GTWS/B/I
EISELE products are renowned for their good quality and sound modern technology.
It is essential, however, that the customer should pay close attention to the operating and
maintenance instructions, as any damage caused to the device due to incorrect handling
or non-compliance with the instructions cannot be remedied by EISELE.
Cases of indirect consequential damage and natural wear and tear are generally excluded from
liability and guarantee claims. If mixers are to be used in chemically corrosive media, please
consult the factory prior to start-up.
Contents
1. Description and applications
8. Safety information
1. Description and applications
Max. submersion depth: 40 m
Medium: chemically neutral
Max. temperature: 65°C
Ensure sufficiently free-flowing
consistency - dilute if necessary.
EISELE mixers have an extremely
strong stirring action which may cause
the wall of the tank to vibrate.
For this reason, they may only be installed
in tanks which are in good condition!
2. Transportation and storage regulations
The submersible agitator should be fixed securely in a horizontal position for transportation and
storage purposes. It may only lifted by the screw provided. Make sure the propeller is not exposed
to any unilateral forces. Never lift the mixer by the cable.
FRANZ EISELE u.SÖHNE GmbH u.Co.KG
Pumpen- und Maschinenfabrik
D-72488 Sigmaringen

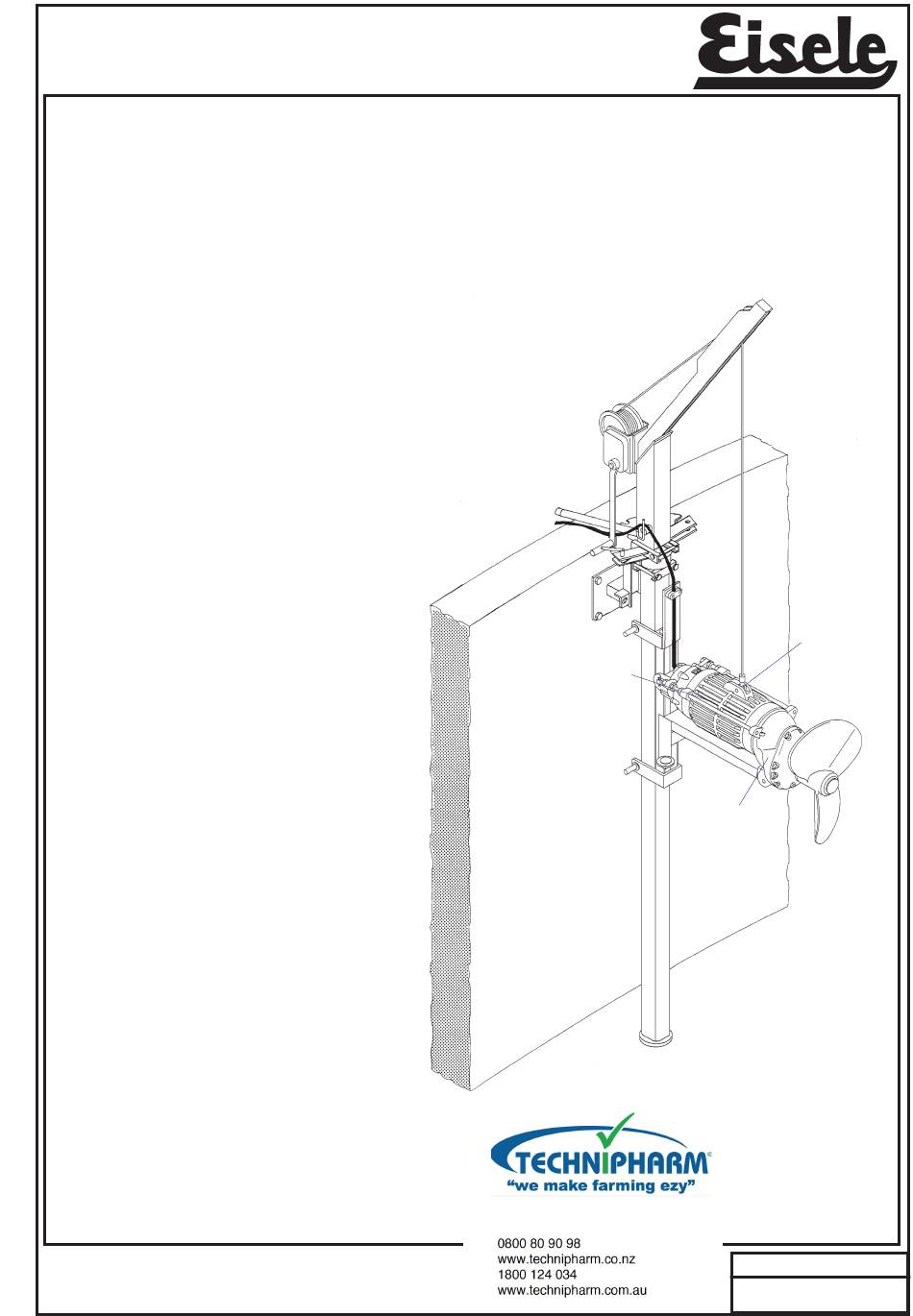

740/1040/1540/204/254/304
Submersible
motor
Suspension
screw
Oil
chamber
MTe12318
a1
p.
1/8
Advertisement
Table of Contents
Summary of Contents for Eisele GTWS 740
- Page 1 Submersible Mixer GTWS/B/I 740/1040/1540/204/254/304 EISELE products are renowned for their good quality and sound modern technology. It is essential, however, that the customer should pay close attention to the operating and maintenance instructions, as any damage caused to the device due to incorrect handling or non-compliance with the instructions cannot be remedied by EISELE.
- Page 2 In addition, a motor protection switch must be used. The motor protection switch / motor protection relay must be temperature-compensated and phase failure sensitive. The motor cannot be switched on again until it has cooled down. FRANZ EISELE u.SÖHNE GmbH u.Co.KG Telefon 07571/109-0 Pumpen- und Maschinenfabrik Telefax 07571/10988 www.eisele.de .
- Page 3 4.2 Checking oil level (see 5. Maintenance and inspection) Before start-up, the specified oil level is to be checked by unscrewing the oil filler plug marked in red (01 19 mm af). FRANZ EISELE u.SÖHNE GmbH u.Co.KG Telefon 07571/109-0 Pumpen- und Maschinenfabrik Telefax 07571/10988 www.eisele.de .
- Page 4 GTWS 1540/204/254/304. The original EISELE switch has a phase inverter. If the propeller rotates in the wrong direction, press the screwdriver into the slot in the plug and rotate the contacts by 180° until the phase inverter is re-engaged.
- Page 5 5.3 Cable winch and fixing cable When EISELE hoisting tackle is used, the cable winch and the wire cable must be checked according to conditions of use, but at least once a year. The bearing bushes of the drive shaft and the drum hub are to be oiled regularly and the crown gear greased.
- Page 6 The air space remaining above the oil is essential and enables thermal expansion of the oil. Oil type: conventional gear oil SAE 80-90 Oil quantity, type 740/1040 approx. 3.6 l, type 1540/204 approx. 5.6 l, type 254/304 approx. 4,6 l FRANZ EISELE u.SÖHNE GmbH u.Co.KG Telefon 07571/109-0 Pumpen- und Maschinenfabrik Telefax 07571/10988 www.eisele.de .
- Page 7 The customer is to ensure that all protective and monitoring equipment is connected and functional. This is to be permanently ensured with suitable measures. 6. Repairs Repairs beyond those mentioned above may only be carried out in the Eisele factory or in a specialist workshop authorised by us. 6.1 Bearings The bearings are to be completely replaced at the latest after 11000 operating hours.
- Page 8 Such threads may also get caught between the propeller and gear case and so destroy the seal. In your own interest, please bear in mind the possible disadvantages of discharging these threads into the liquid manure cycle. FRANZ EISELE u.SÖHNE GmbH u.Co.KG Telefon 07571/109-0 Pumpen- und Maschinenfabrik Telefax 07571/10988 www.eisele.de .
