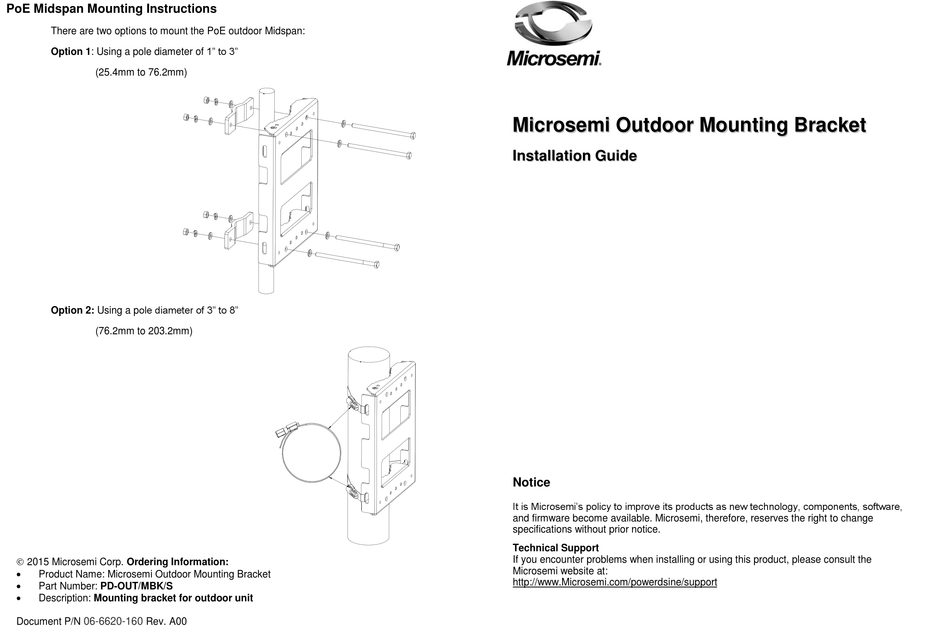

PoE Midspan Mounting Instructions
There are two options to mount the PoE outdoor Midspan:
Option 1: Using a pole diameter of 1" to 3"
(25.4mm to 76.2mm)
Option 2: Using a pole diameter of 3" to 8"
(76.2mm to 203.2mm)
2015 Microsemi Corp. Ordering Information:
Product Name: Microsemi Outdoor Mounting Bracket
Part Number: PD-OUT/MBK/S
Description: Mounting bracket for outdoor unit
06-6620-160
Document P/N
