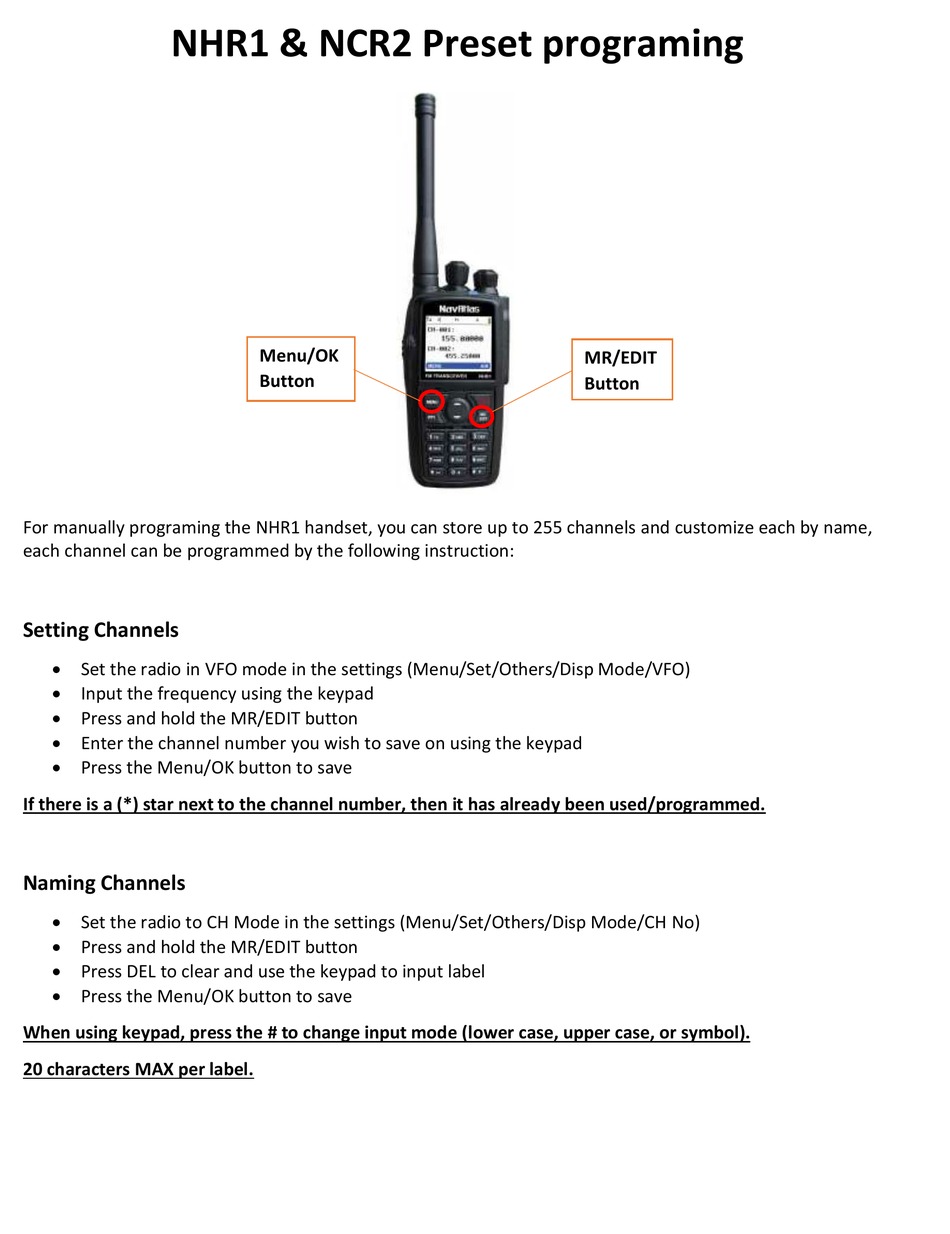

NHR1 & NCR2 Preset programing
For manually programing the NHR1 handset, you can store up to 255 channels and customize each by name,
each channel can be programmed by the following instruction:
Setting Channels
Set the radio in VFO mode in the settings (Menu/Set/Others/Disp Mode/VFO)
Input the frequency using the keypad
Press and hold the MR/EDIT button
Enter the channel number you wish to save on using the keypad
Press the Menu/OK button to save
If there is a (*) star next to the channel number, then it has already been used/programmed.
Naming Channels
Set the radio to CH Mode in the settings (Menu/Set/Others/Disp Mode/CH No)
Press and hold the MR/EDIT button
Press DEL to clear and use the keypad to input label
Press the Menu/OK button to save
When using keypad, press the # to change input mode (lower case, upper case, or symbol).
20 characters MAX per label.
Menu/OK
Button
MR/EDIT
Button
Advertisement
Table of Contents

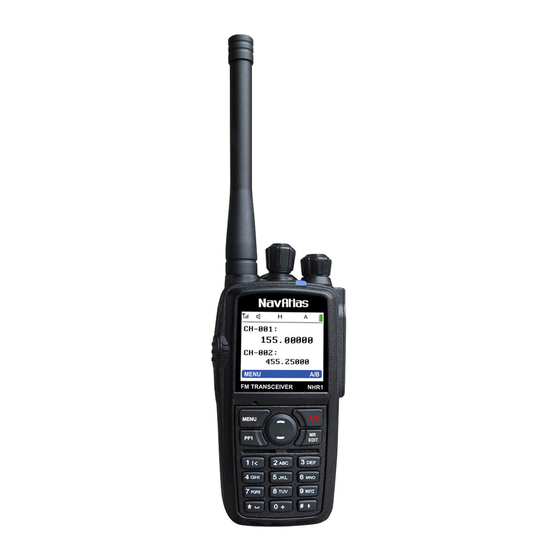

Summary of Contents for NavAtlas NHR1
- Page 1 MR/EDIT Button Button For manually programing the NHR1 handset, you can store up to 255 channels and customize each by name, each channel can be programmed by the following instruction: Setting Channels Set the radio in VFO mode in the settings (Menu/Set/Others/Disp Mode/VFO) ...
- Page 2 VFO/MR Button Menu/OK Button For manually programing the NCR2 radio, you can store up to 255 channels and customize each by name, each channel can be programmed by the following instruction: Setting Channels Set the radio in VFO mode by pressing the VFO/MR button to scroll between functions ...
