Summary of Contents for Archatrak Street Deck

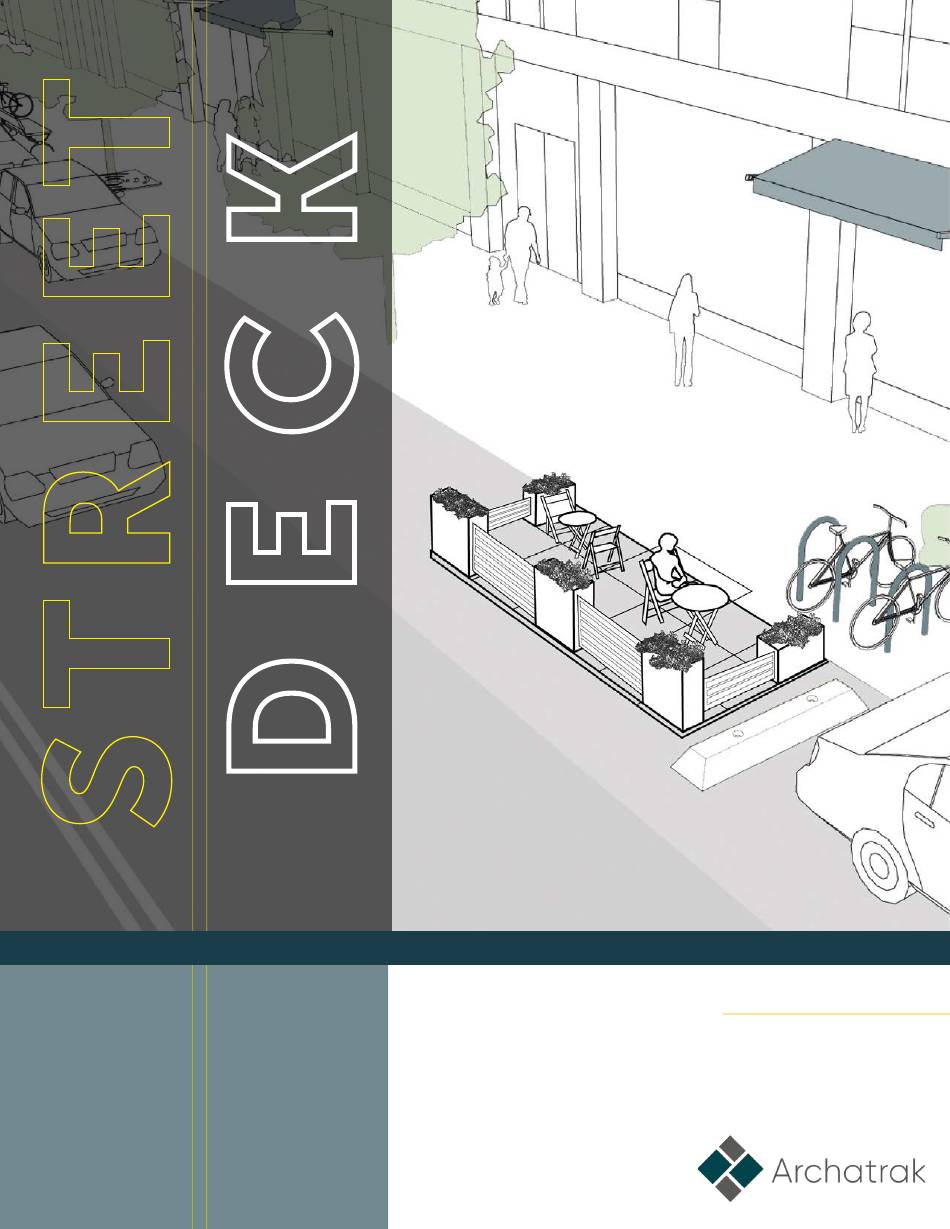

- Page 1 Installation Manual One-Car StreetDeck // 6’ x 12’...
-
Page 2: Tape Measure
Use level when installing SE support pedestals and when laying porcelain pavers. Hand saw Use hand saw to shorten length of watering pipes in planter boxes. Tile lifter Use tile lifter to remove porcelain pavers from deck when dismantling StreetDeck. Archatrak Inc. - Page 3 S T R E E T D E C K P E R I M E T E R the StreetDeck Perimeter Components Perimeter beam 4’W Perimeter beam 3’W Crossbeam Middle plate Link bracket Corner plate Hex head bolts & flange nuts x8 per link bracket Archatrak Inc.
- Page 4 8 hex head bolts and flange nuts per link bracket. Top view of connected plates Secure link bracket to underside of crossbeam and middle plates using 8 hex head bolts and flange nuts per link bracket. Archatrak Inc.
- Page 5 Hex head bolts & flange nuts x8 per link bracket 24” x 24” porcelain pavers Ramp Hex socket screw x2 per ramp For StreetDeck with planters: Planter bracket Middle bracket Hex head bolts & flange nuts x2 per planter and middle bracket Archatrak Inc.
- Page 6 6’ side. Place pedestals every 24” and use level along perimeter frame to check for necessary pedestal height adjustments. Typically shorter pedestals are necessary on the street edge, transitioning to incrementally taller Sidewalk Edge pedestals toward the sidewalk edge. Archatrak Inc.
- Page 7 Using a box cutter knife, remove all 4 spacer tabs on the four pads located in the corners and pads cut in half at planter brackets. All other rubber support pads require two tabs to be removed. Cut off tabs Sidewalk Edge parallel to deck frame perimeter. Archatrak Inc.
- Page 8 (where installed) will protrude from the gaps between the pavers. Sidewalk Edge Using the hex socket screws , secure the 4’ ramp to both ramp brackets with hex key. Repeat this step if using multiple ramps. Sidewalk Edge Archatrak Inc.
- Page 9 Planter front and back panels Planter side panels 2’W x 3’H 1’W x 3’H Planter front and back panels Planter side panels 2’W x 2’H 1’W x 2’H Planter shelf Hex head bolts and flange nuts Planter feet Archatrak Inc.
- Page 10 Stand planter upright. Decide planter shelf height; insert 4 hex head bolts and flange nuts innermost side of slot. Rest planter shelf on 4 bolts. Hex head bolt and nut on innermost side of slot. Archatrak Inc.
- Page 11 Secure middle planter to middle bracket by inserting two hex head bolts down through front and back panel into top of middle bracket. Tighten with flange nuts. Placement of planters: 3’H 3’H 3’H 2’H 2’H Archatrak Inc.
- Page 12 P L A N T E R S O I L S A C K Planter Soil Sack Assembly Components Soil sack Drain hose Insulation panels Watering pipe Filter fabric Archatrak Inc.
- Page 13 Carefully check that the edges of the soil sack stand upright. Place watering pipe in the corner of planter. Use hand saw to shorten length of watering pipe if necessary. Cover the drain hole with piece of filter fabric. Fill sack with soil and plant vegetation. Archatrak Inc.
-
Page 14: Hex Head Bolt
F E N C E Fence Assembly Components 3’W x 3’H fence panel 3’W x 2’H fence panel Hex head bolt x6 per fence panel Archatrak Inc. - Page 15 Attach fence panels to planters by screwing 6 hex head bolts into existing rivet nut holes. 3’H fence panels attach along the 12’ long street edge, while the 2’H fence panels attach along the 6’ ends of StreetDeck. Archatrak Inc.
- Page 16 Archatrak Inc. 866.206.8316 2 Wisconsin Circle, Suite 700 tileinfo@archatrak.com Chevy Chase, MD 20815 www.archatrak.com Archatrak Inc.
