Summary of Contents for Solid Optics EDFAMUX Series

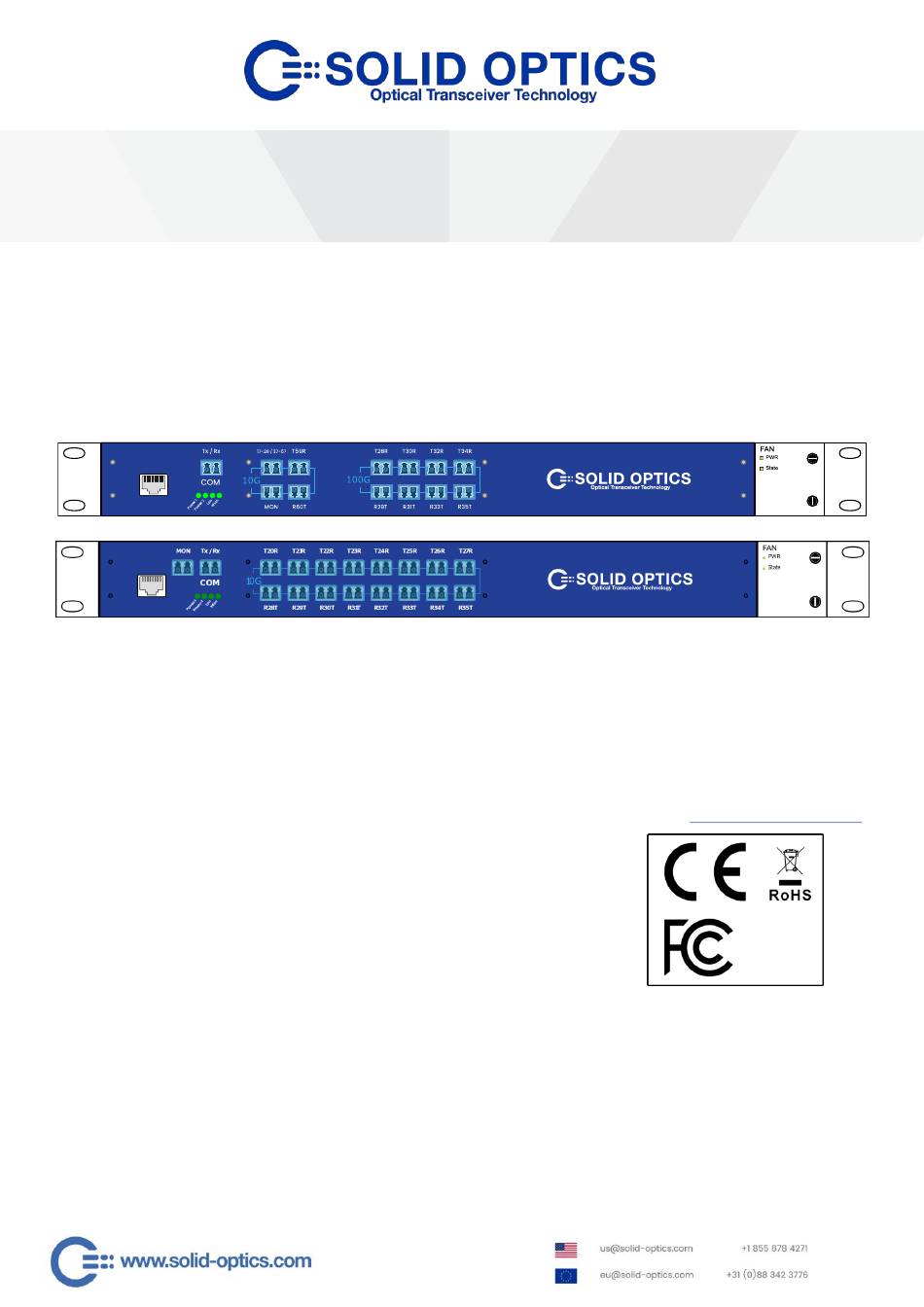

- Page 1 & & SO-DWDM-10x10G-EDFAMUX-140km • SO-DWDM-16x10G-EDFAMUX-140km • SO-DWDM-10x10G-EDFAMUX-200km SO-DWDM-8x100G-EDFAMUX-80km • SO-DWDM-16x100G-EDFAMUX-40km Version 2.1.2 (April 2020) Technical Support Contacts Solid Optics EU N.V. Veluwezoom 15E 1327 AE Almere Europe: The Netherlands Solid Optics EU Phone: +31 (0) 88 3423776 Phone: +31 883 423 776 Website: www.solid-optics.com...
- Page 2 Solid Optics EDFA-MUX product line. Solid Optics EDFA-MUX products undergo extensive internal testing procedures and must meet our strict quality control standards and are in full compliance with CE (including RoHS and REACH), WEEE and FCC- regulations.
- Page 3 The warranty included in the conditions of delivery is valid only if the product has been installed and used according to the instructions supplied by Solid Optics. We shall in no event be liable for incidental or consequential damages, including without limitation: lost profits, loss of income, loss of business opportunities, loss of use and other related exposures, however caused, arising from the faulty and incorrect use of the product.
-
Page 4: Table Of Contents
CONTENT Warnings and Symbols Page 5 Technical Description Page 6 Configuration Page 6 Initial Configuration Page 6 Network Configuration Page 8 3.2.1 WIFI Configuration Page 8 3.2.2 Ethernet Configuration Page 9 3.2.3 SNMP Configuration Page 10 Firmware Upgrade Page 11 Password Configuration Page 11 Recommended EDFA values... -
Page 5: Warnings And Symbols
#31 = Paper or Fibreboard / Plastic CE MARK This symbol indicates that Solid Optics EU N.V. tested the equipment in accordance with applicable European standards and it is safe. The CE-symbol indicates that this product also complies with the requirements of Directive 2014/30/EU. It does not generate, or is not affected by, electromagnetic disturbance. -
Page 6: Technical Description
This equipment can operate with 110v AC, 220v AC and 48v DC, depending on which power supplies are installed. 3. CONFIGURATION 3.1. INITIAL CONFIGURATION For visual step-by-step instructions on how to install the Solid Optics EDFA-MUX, please visit the Knowledge Base/Tutorials Section on our website at www.solid-optics.com. The Knowledge Base... - Page 7 3) Access the EDFA-MUX with a web browser (this is the management website) at the following address and use “admin” as password: http://{EDFAMUX_IP}/settings.html, click in “Optical”, enter your Fiber Length (1) and click “Apply changes” (4). Figure 1 4) Insert all DWDM optical transceivers into your network equipment. 5) Using a Single Mode Fiber patch cable, connect each of the DWDM optical transceivers connected to your network equipment to the corresponding channel on the EDFA-MUX.
-
Page 8: Network Configuration
11) Before connecting each DWDM optic to the corresponding channel on the EDFA-MUX, use an optical power meter or a DWDM OSA meter to verify that the TX values of the EDFA-MUX channel are lower than: a. In the case of the 100G EDFA-MUX: 8dBm (aggregate damage threshold of the optic). b. -
Page 9: Ethernet Configuration
3.2.2. ETHERNET CONFIGURATION In the Ethernet configuration submenu, the following operations can be performed: 1) Enable Static IP (By default the EDFA-MUX will use DHCP) (1). a. When enabled, IP Address (2), Gateway (3) and Subnet mask (4) must be configured. b. -
Page 10: Snmp Configuration
3.2.3. SNMP CONFIGURATION The EDFA-MUX uses SNMP version 2c - Please use the provided MIB file or enter download.solid- optics.com to obtain it. In the Ethernet configuration submenu you can configure the Syscontact (1), Syslocation (2), SNMP port (3) and the community string (4). -
Page 11: Firmware Upgrade
3.3. FIRMWARE UPGRADE The Firmware page is used to upgrade the firmware and the website of the EDFA-MUX - Proceed as follows: 1) Upload the provided firmware.bin file (1) and click on “Update” (2). 3.4. PASSWORD CONFIGURATION The Password configuration page is used to change the password used to access the SETTINGS and FIRMWARE pages (password timeout is 15 minutes) –... - Page 12 END-OF-LIFE DISPOSAL Please follow all local and national laws and regulations when disposing of the Solid Optics EDFA-MUX after deinstallation.
-
Page 13: Recommended Edfa Values
4. RECOMMENDED EDFA VALUES The following recommended values are to be considered while using the maximum Fiber length of your network. Booster values may need to be adjusted if a shorter Fiber length is used. The following values are based on a 10G SFP+ sending +1dBm of light power for the 10G 140km and 10G 200km EDFA-MUX models, and a 100G QSFP sending -6.5dB of light power for the 100G EDFA-MUX models. -
Page 14: Safety Guidelines And Warnings
Only trained and qualified personnel should be permitted to install, replace, or service the EDFA-MUX. GENERAL Use the Solid Optics EDFA-MUX only for the purpose it was designed for. • To avoid overheating the EDFA-MUX, please use the appropriate and qualified rack space and •... - Page 15 REGARDING FIBER OPTIC CABLES: The EDFA-MUX is designed to include fiber optic components/products, including optical connectors to connect optical cables. Unlike electrical wires, the insides of optical cables contain a fiber made of glass. Due to the different properties of optical fiber when compared to the copper used in electrical wires, some additional precautions must be taken as detailed below: Avoid bending fiber-optic cable beyond its minimum bend radius.
-
Page 16: Drawings, Circuit Diagrams And Photos
6. DRAWINGS, CIRCUIT DIAGRAMS & PHOTOS Outline Dimensions EDFA-MUX Interface Block Diagram PRE_AMP QSFP POST- DEMUX QSFP included for connection clarification... -
Page 17: Malfunctions
Solid Optics US at: +1 855 678 4271 WARRANTY We offer a 3-year warranty for normal usage of the Solid Optics EDFA-MUX, provided that the user has not altered the EDFA-MUX in any way or used it contrary to its intended purpose. For specific information regarding our warranty, please visit www.solid-optics.com... -
Page 18: Contact Information
Solid Optics EU Holding N.V. All other trademarks are acknowledged as registered trademarks and proprietary to their respective owners. Copyright © 2019 Solid Optics EU N.V., Dutch Chamber of Commerce no. 39099087, all rights reserved. For more information visit www.solid-optics.com...
