Summary of Contents for Spartan Equipment Articulating Brush Cutter

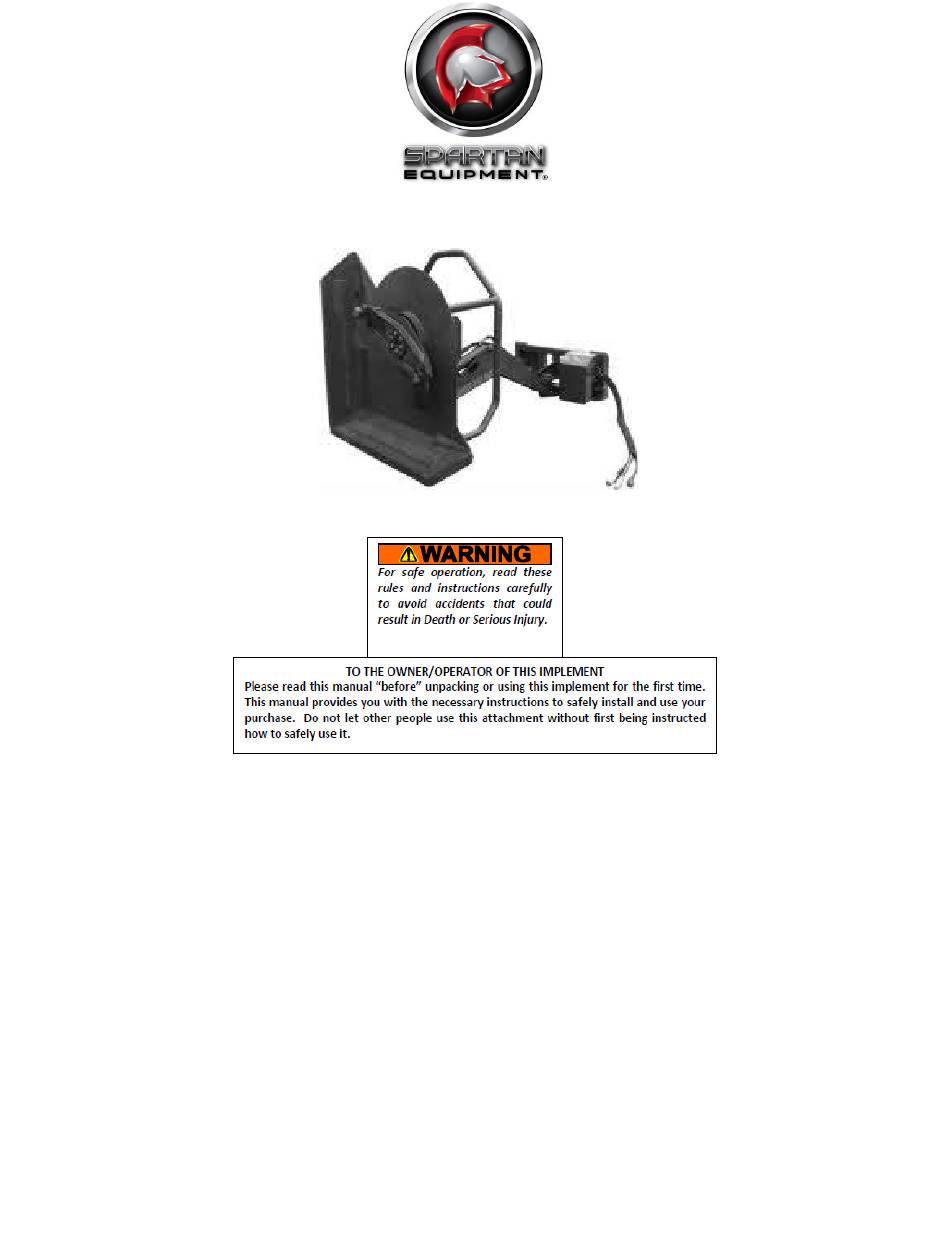

- Page 1 ARTICULATING BRUSH CUTTER Owner's/Operator's Manual Save this manual for future reference!
-
Page 2: Thank You
Thank You Our sincere appreciation to you on the purchase of a quality Articulating Brush Cutter offered by Spartan Equipment. Our record of successful and satisfied customers is evidence of the concern for quality and designed strength that we place into each and every product we build. -
Page 3: Table Of Contents
When you see these alerts in the manual, carefully read and follow all Hydraulic Plumbing Parts ....15 instructions and also protect other workers Troubleshooting ........16 from the same danger. Articulating Brush Cutter May 2014 PAGE 3 Spartan Equipment... -
Page 4: Operator Safety Training Tips
& Always use eye protection during & Use caution when performing operation. Mount this attachment on a skid service work on or near the machine's steer equipped with thermoplastic Articulating Brush Cutter May 2014 PAGE 4 Spartan Equipment... -
Page 5: Skid Steer Requirements
Skid Steer negative cable first and reinstall the negative cable last. Requirements The Articulating Brush Cutter should only DO NOT smoke be used on 70+ H P skid steers with a lift around a battery, or use anything that capacity of at least 1800 Ibs. and with a... -
Page 6: Unpacking Your Shipment
When clear, move the skid steer to proximity of attachment plate. Tilt skid steer coupler forward to align coupling point with the upper part on the Articulating Brush Cutter May 2014 PAGE 6 Spartan Equipment... -
Page 7: Cutter Boom Controls
Use your machine's "Boom Swing" use a foot throttle when using the cutter. electric switch to rotate cutter boom to the right. Stop when the cutter has rotated 90°. Articulating Brush Cutter May 2014 PAGE 7 Spartan Equipment... -
Page 8: Stopping The Cutter
Always be aware of your surroundings. When operating the cutter, set the skid When the cutter is swung 90°, the steer throttle at a speed that will operator has a much larger path to PAGE 8 Articulating Brush Cutter May 2014 Spartan Equipment... -
Page 9: Adjusting Cutter Height & Level
Maintain a safe speed while Your Articulating Brush Cutter has the capability of rotating 90° to the right of the cutting. skid steers mounting point, or stopping anywhere between 0°... -
Page 10: Before Cutting
If material constantly is balling underneath cutter deck, try tilting the leading edge of the cutter to be about 1" lower than the rear of Articulating Brush Cutter May 2014 PAGE 10 Spartan Equipment... -
Page 11: Vertical Cutting
Using V-Cut in deck for small trees & Blade Removal Replacement Vertical Cutting Your Articulating Brush Cutter has the Cutter blades capability to cut vertically to widen can be very sharp and could cause pathways, roadways, or along the edge of a crop field to allow access for tractors and Minor or Serious Injury if mishandled. -
Page 12: Before Every Use
Pump No.2 lithium or molybdenum disulfide grease into all required areas Store your implement in a shed or cover with a water-proof tarp to Articulating Brush Cutter May 2014 Spartan Equipment PAGE 12... -
Page 13: Specifications
Payment Method *A skid steer equipped with tracks will provide superior stability compared to ... then call your local dealer for factory a non-track unit. fresh parts specifically designed for your attachment. Articulating Brush Cutter May 2014 PAGE 13 Spartan Equipment... -
Page 14: Cutter Parts
Cutter Parts Articulating Brush Cutter May 2014 PAGE 14 Spartan Equipment... -
Page 15: Hydraulic Plumbing Parts
Hydraulic Plumbing Parts Articulating Brush Cutter May 2014 Spartan Equipment PAGE 15... -
Page 16: Troubleshooting
Call the Factory for further instructions. Check valve failure Remove check valve from tees, cap the tees and attempt to run cutter. If cutter spins, replace the check valve. Articulating Brush Cutter May 2014 PAGE 16 Spartan Equipment... -
Page 17: Hydraulic Flow
Hydraulic Flow Articulating Brush Cutter May 2014 Spartan Equipment PAGE 17... -
Page 18: Electrical
SA Fuse JOYSTICK CONTROLLER Mounted on -7:--'-f--- ---------R~;{u~)------~ 12 Volt & Ground from Loader ATIACHMENT HARNESS :::l"" < <" Orange Black Black (Valve Cover Removed for Cia Yellow Blue Black Black Articulating Brush Cutter May 2014 Spartan Equipment PAGE 18... -
Page 19: Limited Warranty
(12) month warranty period. All defective parts must be routed directly to Spartan Equipment with freight or delivery charges to be prepaid. This Limited Warranty shall not be interpreted to render Spartan Equipment liable for any injury or damage to persons, business or property of any kind nor expenses or losses incurred for labor, supplies, substitute machinery rental, or for any other reason.
