Locker Installation & Assembly Instructions
Cora Bike Rack - Single Bike Locker Light Duty (CBL1-LD)
Cora - Single Door Bike Locker - Light Duty

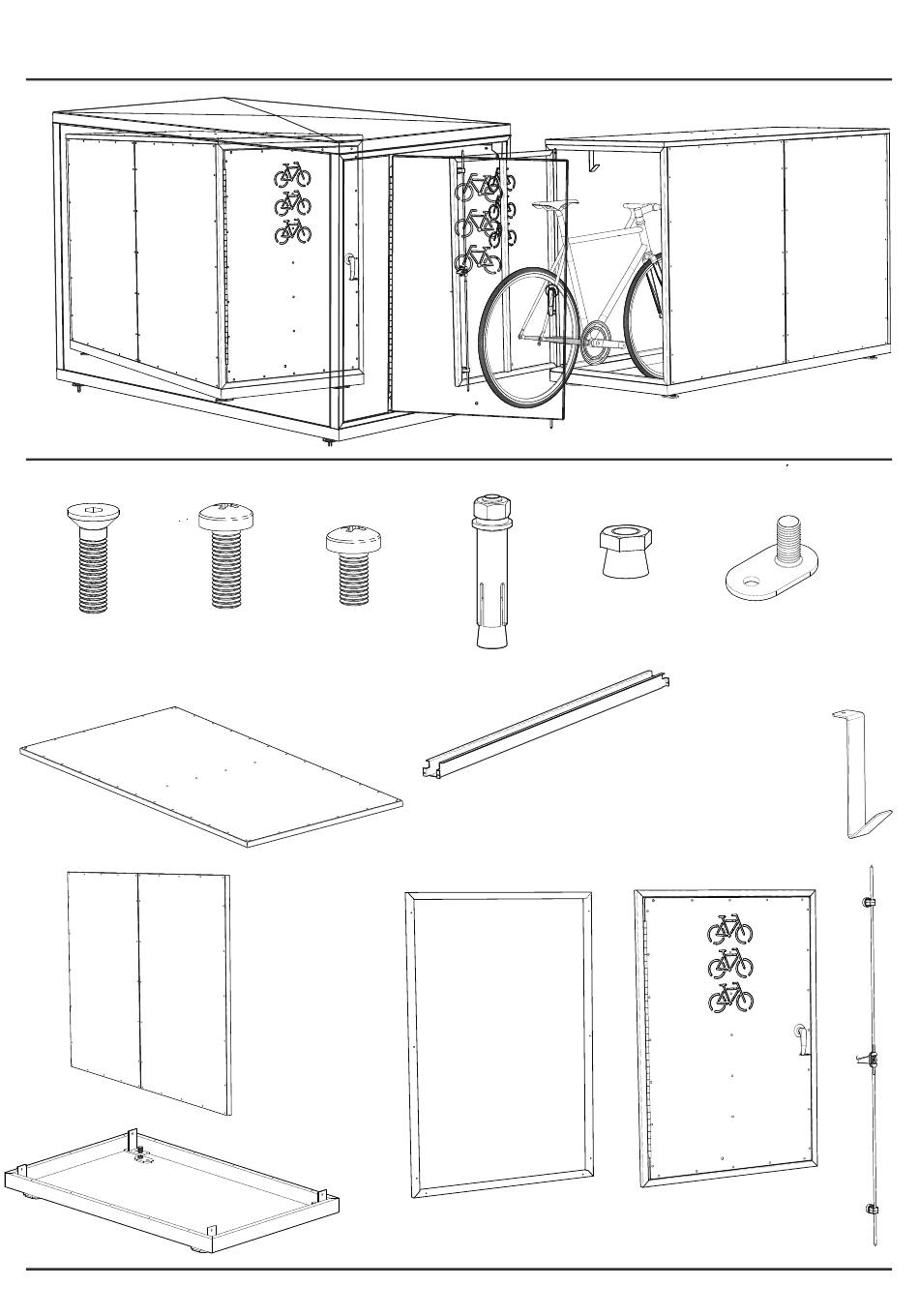

Components for Single Bike Locker used in assembly
M5x35 Pan head
M5x35 CSK
fasteners
head fasteners
(x3)
Cora Bike Rack - Australia's Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878
M5x12 pan head
fasteners
(x35)
(x4)
Locker Roof
(X1 per locker)
Locker side panels
(x2 for left side,
x2 for right side)
Locker base frame
(x1 per locker, may
or may not have
levelling feet
installed)
M10 Shear nuts
M10 Anchor Bolts
(X4)
Wheel track
(x1)
Locker rear panel
frame assembly
(x1 per locker)
(X4)
Adjustable levelling foot
(x4 per base frame, may
already be installed in
base frame)
Helmet/ bag
hook
(x1)
Locker door frame
assembly
(x1 per locker)
Three point
locking mechanism
assembly and
plastic mounts
Rev 2.00 Feb 2020 ©
Advertisement
Table of Contents
Related Manuals for Cora Bike Rack CBL1-LD
Summary of Contents for Cora Bike Rack CBL1-LD
- Page 1 Locker base frame (x1 per locker, may or may not have levelling feet installed) Three point locking mechanism assembly and plastic mounts Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 2 NOTE: Ensure all feet contact with ground firmly after levelling, frame cannot rock or lean at any corner, or when fastened with anchor bolts, frame will be warped and not level and will effect assembly of locker. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 3 • After anchor bolt nut is tightened fully, install supplied shear nuts (x4 one per anchor bolt) onto top of thread • Tighten shear nuts until head snaps off Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 4 • Screw through bottom frame of side panels to base frame and through end frame of side panels to both door and rear panel assembly frames. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 5 • Ensure rod guides are positioned to allow lock rods to travel freely without hitting inside or edges of door Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 6 Installation of the Cora Single door locker is complete PH 1800 249 878 sales@cora.com.au www.cora.com.au Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
