Overview.
Thank you for purchasing Elura
speaker products. Elura is a high
performance custom installed prod-
uct engineered for movie and music
enthusiasts. Each Elura product is
manufactured to the highest qual-
ity standard using state of the art
components and built for years of
enjoyment.
Considerations.
Before connecting, mounting or
installing any Elura product, please
read all instructions. Careful con-
siderations should be given to avoid
obstacles such as electrical wires,
plumbing or HVAC products.
If you are unsure or inexperienced
with construction methods, please
consult a professional.
Use the proper tools and pay close
attention to detail while connect-
ing the speaker wires. Make sure
all equipment is powered off while
connecting and disconnecting any
equipment.
Improper use, not following pre-
cautions or instructions may cause
damage to property, equipment, and
possible injury or electrocution.
Features.
•
Conveniently replaces front
channel speakers ( L, C, R )
•
Can be mounted on the wall,
to an articulating TV bracket, or
placed on a TV stand
•
Low profile matches most flat
screen TV depths
•
Built with high quality, perfectly
matched, speaker components
•
Engineered to work with most
audio and video receiver / ampli-
fiers of 20 to 100W / CH
Contents.
•

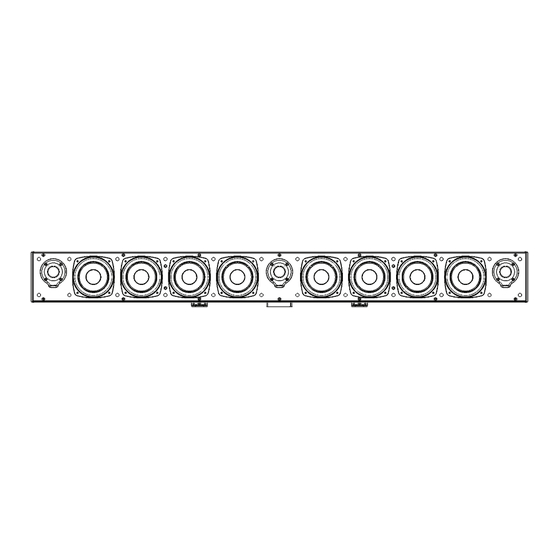

Elura Soundbar
•
Wall Mounting Hardware
•
TV Stand Hardware
•
All screws, washers needed to
attach the speaker to the hard-
ware supplied
model # SBR1
high performance soundbar
Connections.
Connect the Soundbar to an AV Re-
ceiver or Amplifier using high-quality
14 to 16 gauge stranded speaker
wire. The stripped bare ends of the
speaker wire may be connected di-
rectly to the speaker's binding
posts. Twist the speaker wire to
avoid strands from shorting from
one connection to the other and pay
careful attention to polarity (+ / - ).
Note: You will need 3 pairs of
speaker wire to the Soundbar as it
contains the left, center, and right
channels conveniently in one prod-
uct. All connections are located in a
flush mount terminal cup in the rear
of the speaker so that a wall mount-
ed speaker can sit flush on the wall.
See the picture of the connections
below:
