12891 Lantana Avenue
Saratoga, CA 95070
www.sharpshape.com
Assemble the Sharp Shape USB3D Foot Scanner
Sharp Shape, Copyright ©, All rights reserved. July 2014

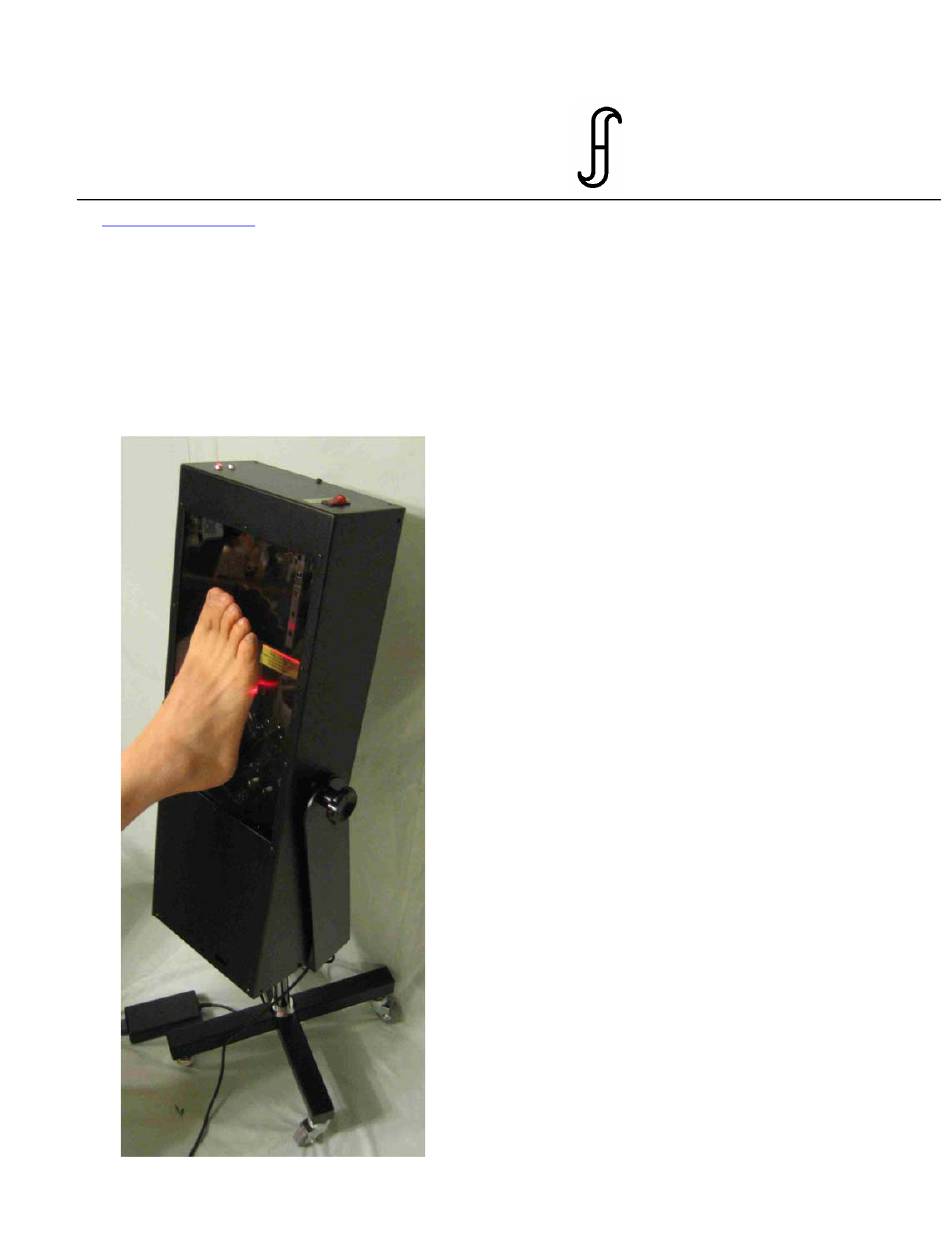

Figure 1. The Foot Scanner
Sharp Shape
not just any shape
Tel & Fax : 408-871-1798
The Sharp Shape 3D Laser Foot Scanner, model
USB3D, is an improved version of the previous
model, 2V. This manual is about assembly
instructions. The software instructions and
operational instructions are described in the PDF
document "Install and Operate USB3D Foot
Scanner".
For shipping purposes, the scanner comes in
separate body and parts boxes. The scanner
needs to be assembled before you can use it.
Figure 1 on the left illustrates the completed foot
scanner.
The scanner is composted of a body (the top
black box) and an adjustable stand (the
mechanism that supports the body). A special
horizontal stand is also used, but it is used in rare
cases. Please contact us for details if you are
interested in that.
Warning: do not power the scanner before
removing the two parking screws! The screws
are used to block the movement of the cart
during shipping. They are located at the back
of the scanner.
Contents in the packages may vary from time to
time, depending on the availability of parts at our
hands.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the USB3D and is the answer not in the manual?

Questions and answers

Summary of Contents for Sharp Shape USB3D

  • Page 1 Tel & Fax : 408-871-1798 Assemble the Sharp Shape USB3D Foot Scanner Sharp Shape, Copyright ©, All rights reserved. July 2014 The Sharp Shape 3D Laser Foot Scanner, model USB3D, is an improved version of the previous model, 2V. This manual is about assembly instructions.

  • Page 2: Scanner Unpacking

    Scanner Unpacking The scanner ships in two boxes as shown in Figure 2 on the left. The one on the top is called Scanner Box (or Long Box. or Box A) and the one on the bottom is called Stand Box (or Square Box, or Box B).
  • Page 3 After you have received the two boxes, immediately check the scanner and the parts/accessories with reference to Figure 3, Figure 4, and Figure 5 on the left. The contents in the two boxes may vary. We will enclose a note if there are variations. Contact us if you find anything missing or damaged.

  • Page 4: Scanner Assembly

    Scanner Assembly Skip this section (except Step 6 and Step 7) in the case that a customer doesn’t order the adjustable stand. Step 1. Mount the four wheels on the cross bar. Usually, you do not need a wrench if you can use your hand to drive the wheels into the cross.
  • Page 5 Figure 9. The correct way Figure 12. Figure 10. The wrong way Figure 13. Step 3. Mount the U-bar to the inner rod. The way to insert the bolts is shown in Figure 9. The wrong way is shown in Figure 10. With the wrong way, you feel you need nuts.
  • Page 6 Step 5. Put the 4 washers (part of “C” in Figure 3) on the two ear-knobs as shown in Figure 14. Notice the look of the threaded hole on the two sides of the scanner body. A hole is shown in Figure 15.
  • Page 7 Make sure the scanner is not tipped over by accident during use. Contact info: Sharp Shape 12891 Lantana Ave. Saratoga, CA 95070 Tel & Fax: 408-871-1798 Web site: www.sharpshape.com Email: sharpshape@comcast.net...
