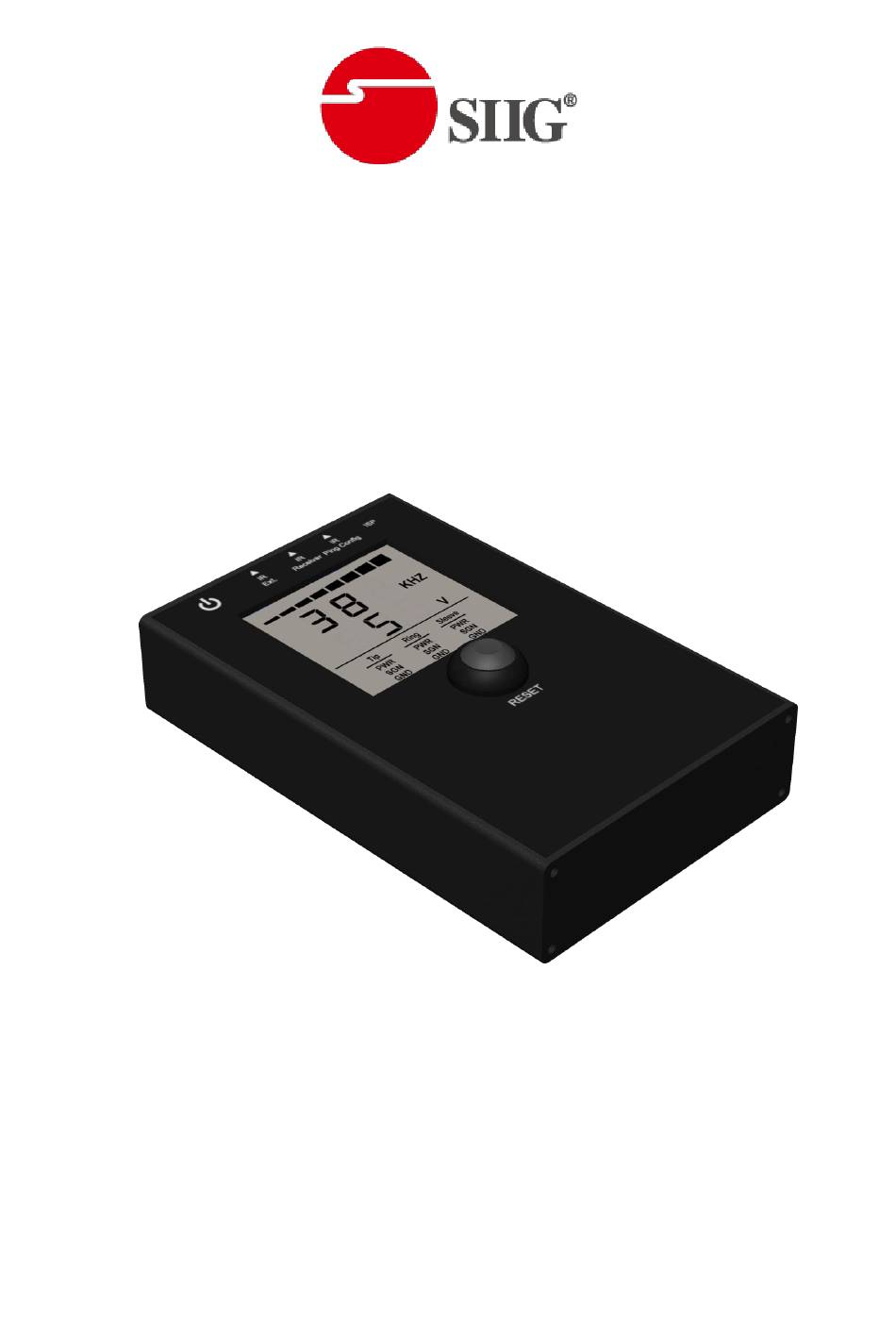

- Page 1 IR Measurement & Analyzer P/N: AV-GM0953-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0953-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
& test IR signals. User can use AV-GM0953-S1 to set up quickly and accurately and verify the frequency & strength of the IR signal. Users can use the AV-GM0953-S1 to measure the IR signal during setup and get the installation done quickly and efficiently. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0953-S1 Technical Role of usage IR Measurement & Analyzer IR Strength 8-Level shift indication IR Frequency 20KHZ - 60KHZ IR Voltage 0V - 36V Control Push Button ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] 1x 3.5mm earphone jack (IR-RX IN) ->... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front / Rear Panel 1. LCD - Indicate "IR Signal Strength" - Indicate "IR Frequency" - Indicate "IR Jack Power Voltage" - Indicate "IR Jack Pin Configuration (Power/ Signal/ Ground)" 2. Push Button: Clean the measurement 3. Battery holder: Place an alkaline 9V transistor battery here 4. -
Page 6: Connection Diagram
CONNECTION DIAGRAM 1) Measure IR Strength & IR Frequency 2) Measure IR Jack Power Voltage & Pin Configuration... -
Page 7: Warranty
Also, the technical information contained herein regarding the AV-GM0953-S1 features and specifications is subject to change without further notice.
