FirmTek SeriTek/Q6G Quick Install

Quick Install - SeriTek/Q6G or SeriTek/6G2+2 in ThunderTek/PX

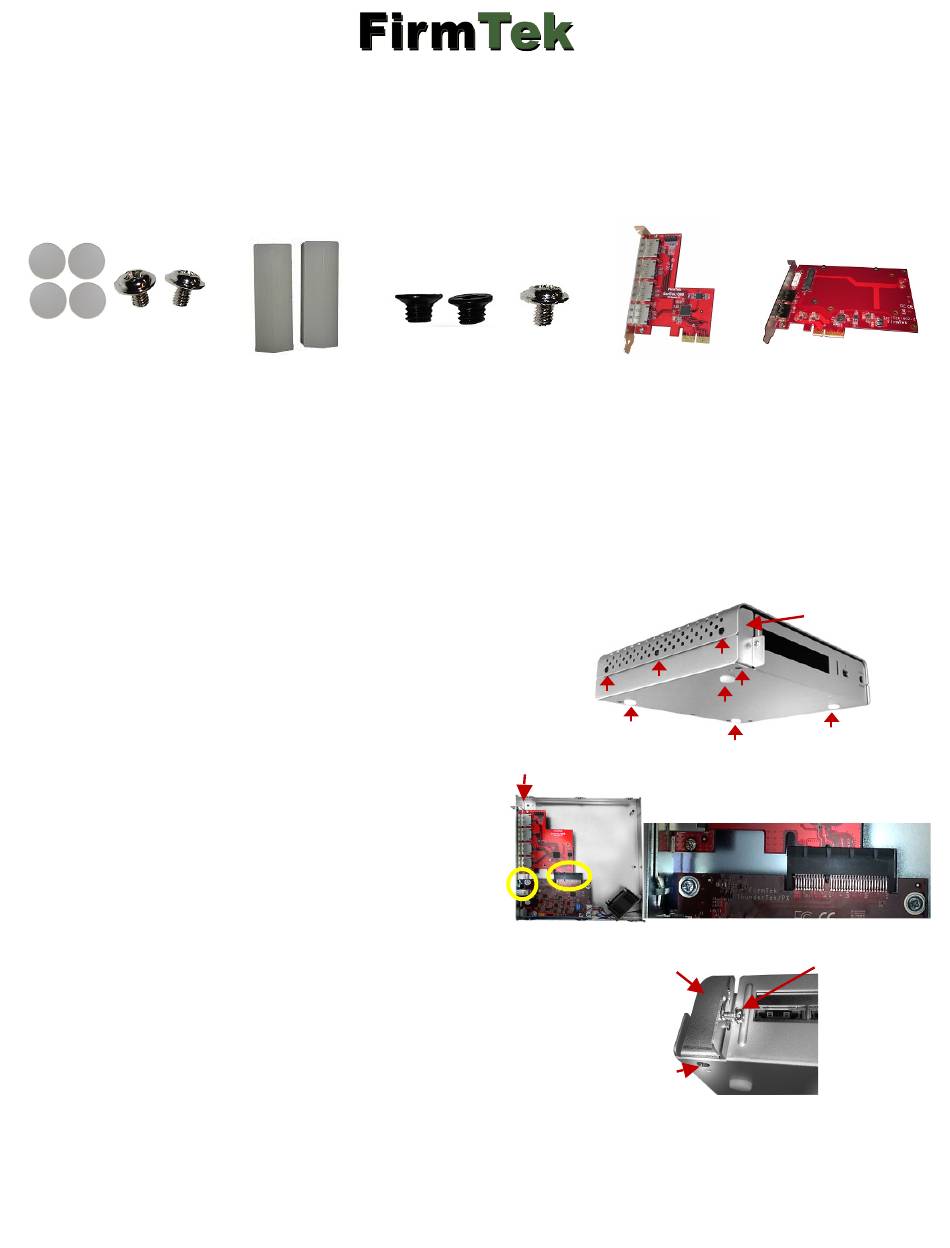

I. Package Contents

Four Two
Rubber Screws
Feet Secure
PCBA to
Posts
Install SeriTek/Q6G in ThunderTek/PX
II.
1. Mount Rubber Feet in suggested locations.
2. Remove Top Housing:
Remove three screws on each side of
ThunderTek/PX
3. Loosen screw and remove PCI Mounting Tab
4. Install SeriTek/Q6G Card:
- Insert adapter bracket into PCIe Tab Slot and
push Gold Teeth into PCIe slot
- Gently press PCIe adapter to verify card is
firmly seated in PCIe slot
Note: Hold the PCIe card by its edges only. Do NOT
touch Gold Teeth or any components on the card.
5. Reinstall PCI Mounting Tab
- Position & Place PCI Mounting Tab into
housing. Verify both holes align properly
- Tighten screw to secure the PCI Mounting Tab
to housing
- Tighten screw to secure Card to Mounting Tab
6. Reinstall Top Housing
- Attach Top Cover and secure with six screws
Store and Share your Digital Creations
ThunderTek/PX2+2
Includes Two
Posts
Two Screws
Screws Secure
Secure PCIe to
Posts to Housing
Housing
PCI Mounting
4
Tab
Tighten Screw to
Secure Tab
ThunderTek/PX- ThunderTek/PX2+2
Q6G includes
SeriTek/Q6G
PCI Mounting
Tab
2
2
3
2
1
1
1
Card Firmly Seated
5
includes
SeriTek/6G2+2
1
Tighten Screw to
Secure Adapter
