Summary of Contents for Ancor 703023

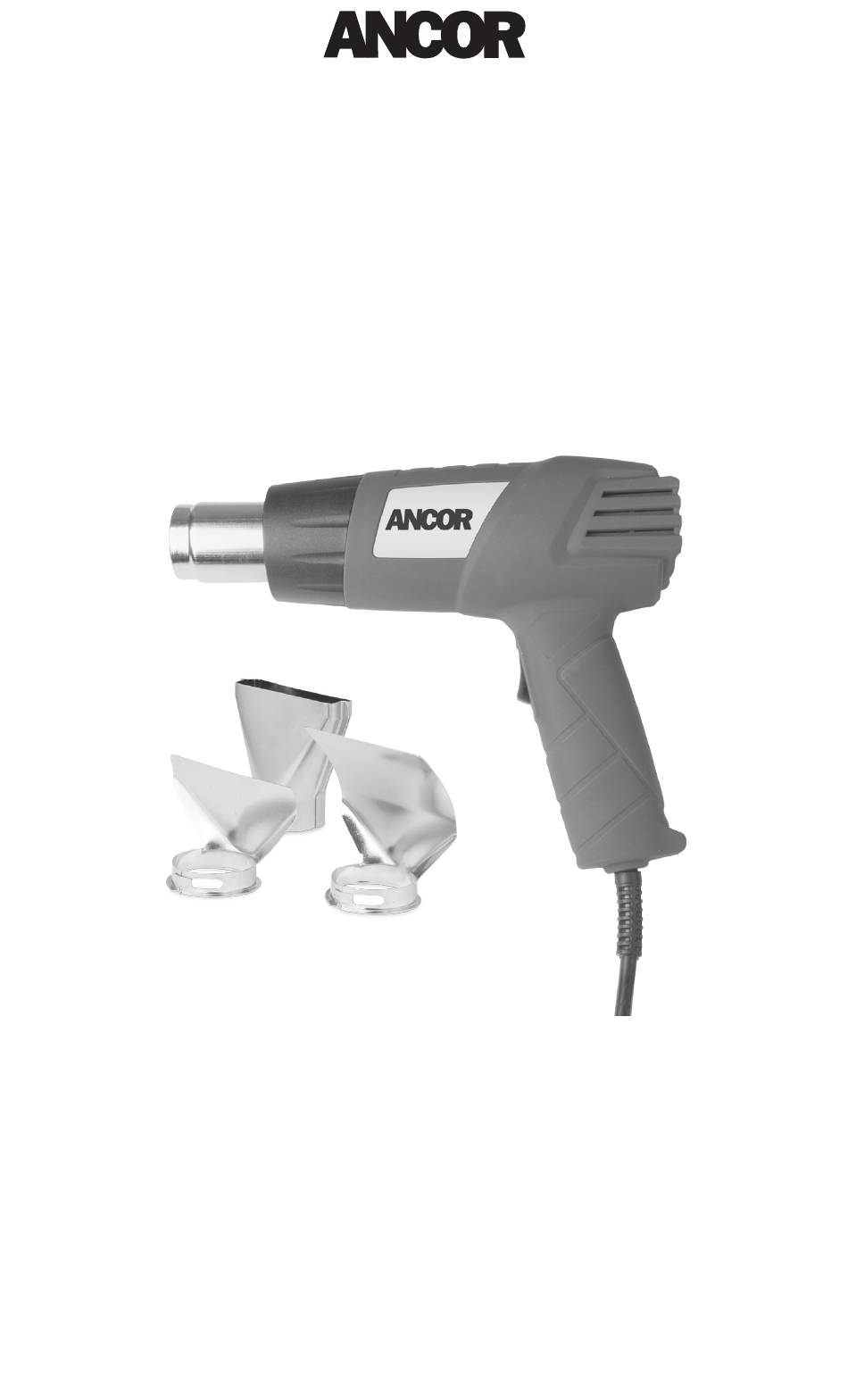

- Page 1 120V TWO SETTING HEAT GUN OPERATOR'S MANUAL (PART #: 703023) Specifications: • Rated Voltage: 120VAC, 60Hz, 12.5 Amp • Output: 750/ 1500 Watts • Air Temperature: 572°/932°F • Air Volume: 10/17 cu. ft. / min...
- Page 2 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN WARNING To reduce the risk of injury, user must read and understand this operator's manual before operating this tool. Save this Manual for future reference. WARNING The Operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.
-
Page 3: Work Area Safety
OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN WORK AREA SAFETY • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. - Page 4 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN • Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tool with your finger on the switch or plugging in power tools that have the switch on invites accidents. •...
- Page 5 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. • Feed the work piece in the correct direction and speed. Feed the work piece into a blade, cutter, or abrasive surface against the direction of the cutting tool's direction of rotation only.
- Page 6 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN • Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it. • Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
- Page 7 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN • Always hold the heat gun by its handle. Do not touch the nozzle or accessory tips, allow them to contact flammable material, or store the heat gun until the nozzle has cooled to room temperature. The metal nozzle may require 20 minutes or more to cool adequately before it can be touched.
- Page 8 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN 1) Move the work piece outdoors. If this is not possible, open windows and place an exhaust fan in a window. Be sure the fan is moving air from inside to outside. Proper ventilation reduces the risk of inhaling fumes or dust created by using the heat gun.
-
Page 9: Operation Warning
OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN HEAT GUN CONTENTS Trigger Switch Air Nozzle Reflector Nozzle Deflector Nozzle Deflector Nozzle UNPACKING AND CONTENT IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. - Page 10 OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN OPERATING INSTRUCTIONS WARNING To reduce the risk of injury, wear safety goggles or glasses with side shields. WARNING Be aware that material behind or in between exposed surfaces may ignite. WARNING To reduce the risk of burns and/or fire, keep the tool moving at all times over the material you are heating.
-
Page 11: Maintenance
OPERATOR'S MANUAL: 120V TWO SETTING HEAT GUN APPLICATIONS WARNING Reduce the risk of heat damage and personal injury, shield combustible materials and areas adjacent to the work piece. Protect yourself from hot paint scrapings and dust. SHRINKING TUBING Shrink tubing is most often used in place of electrical tape to hold joined wires in position and provide insulation. -
Page 12: Limited Warranty
For customer convenience, Ancor warranty is located at ancorproducts.com/limited- warranty. Ancor is a proven industry leader, with a Global network of sales, distribution, and service. Product concerns as related to Form, Fit and Function may be submitted online at ancorproducts.com/limited-warranty.
