Summary of Contents for cascade corporation QFM

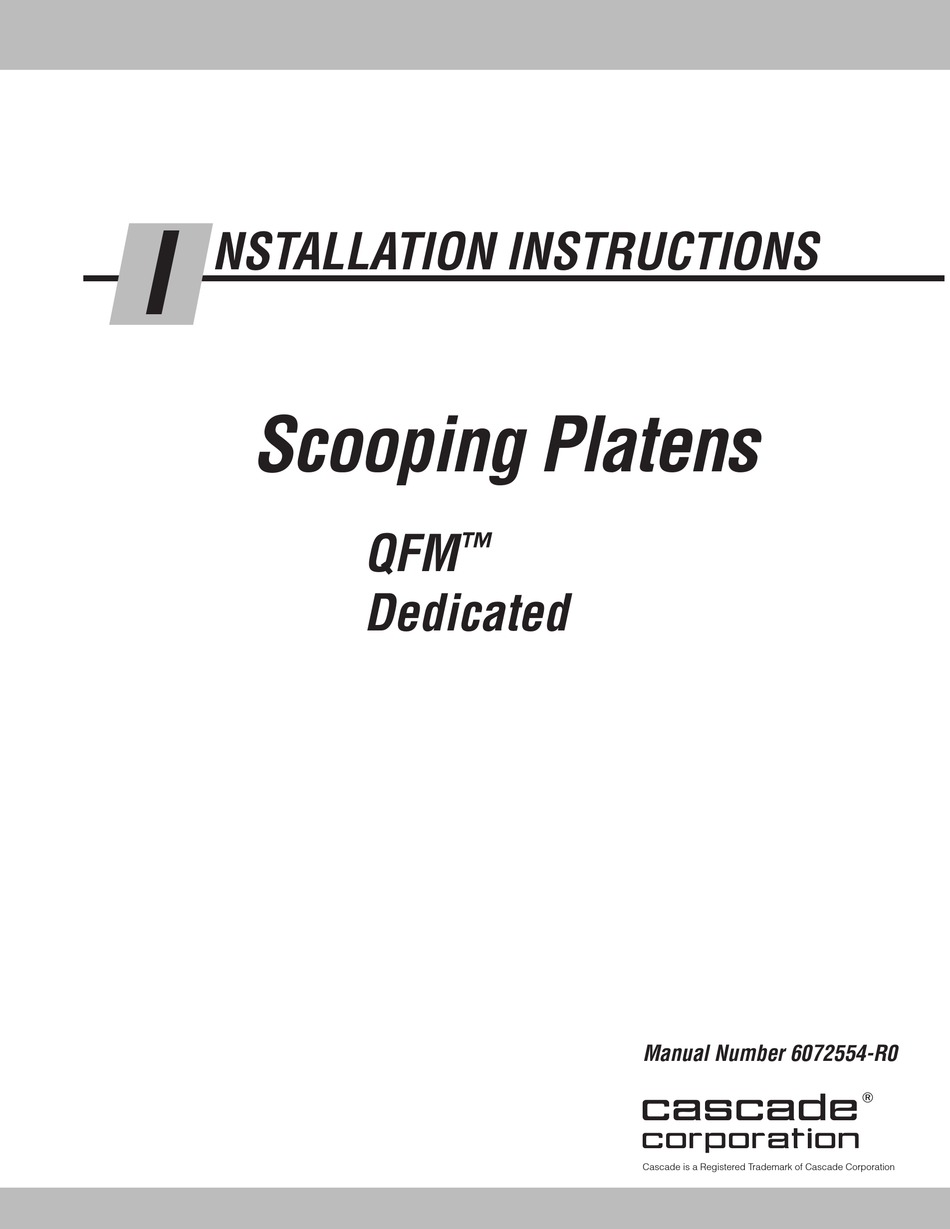

- Page 1 NSTALLATION INSTRUCTIONS Scooping Platens ™ Dedicated Manual Number 6072554-R0 c sc de corpor tion Cascade is a Registered Trademark of Cascade Corporation...
- Page 2 Clean and inspect carriage bars for damage. Repair any damaged notches. GA0374.eps WARNING: The QFM™ Scooping Platens require forks to support the attachment and load. Forks up to 1.8 in. (45 mm) thick and 40–46 in. (1015-1168 mm) long can be used.
- Page 3 NSTALLATION QFM™ Scooping Platens Remove banding, attach Follow the steps shown to install the QFM™ Scooping overhead hoist Platens on the truck. Read all WARNINGS and CAUTIONS carefully. If you don't understand a procedure, ask your supervisor, or call the nearest Cascade Service Department for assistance.
- Page 4 NSTALLATION QFM™ Scooping Platens Engage lower hooks Open safety lockpin and turn hooks up. Release safety lockpin to secure hooks up. Adjust clearance and tighten hook capscrews. 1/8 in. PP0885.eps (3.2 mm) Tighten capscrews to 60 ft.-lbs. (80 Nm) Adjust and lock upper hook setscrews Adjust clearance for upper hook setscrews.
- Page 5 RUCK REQUIREMENTS Dedicated Scooping Platens WARNING: Rated capacity of the truck/Scooping Platen combination is a responsibility of the original truck manufacturer and may be less than that shown on the attachment nameplate. Consult the truck nameplate. Carriage Mount Dimension (A) ITA (ISO) Minimum Maximum...
- Page 6 NSTALLATION Dedicated Scooping Platens Bolt-On Lower Hooks - Remove lower hooks Tighten capscrews to 166 ft.-lbs. (225 Nm) PP1412.eps Back (Driver's) View Quick-Change Lower Hooks - Unlock lower hooks Remove pin and drop hooks into unlocked position. Reinstall pin in lower hole (unlocked). NOTE: Guides can be reversed to reduce hook-to-carriage clearance.
- Page 7 NSTALLATION Dedicated Scooping Platens Mount Platens on truck carriage Center truck behind attachment. Tilt forward and raise carriage into position. Engage top mounting hook with carriage. Make sure center locator tab engages cen- ter notch on top carriage bar. Lift platens 2 in. (5 cm) off pallet. PP1413.eps ITA Class II –...
-
Page 8: Hour Maintenance
Installation Step 3 (pg. 5) or 5 (pg. 6) in this Manual. Tighten the lower hook mounting capscrews to 120 ft.- lbs. (165 Nm). QFM™ Scooping Platens • Tighten the platen mounting capscrews to 40 ft.-lbs. (60 Nm). WARNING: Platen capscrews must be tightened regularly to prevent equipment damage or personnel injury. - Page 10 Lima 43 Haicang, Xiamen City Fujian Province Singapore Jabaquara - Sao Paulo - S.P. P.R. China 361026 Tel: 65-6863-3488 Brasil CEP 04344-070 Tel: 86-592-651-2500 FAX: 65-6863-1368 Tel: 55-11-5013-2800 FAX: 86-592-651-2571 Fax: 55-11-5013-2809 Cascade Corporation 2007 1-2007 Part Number 6072554-R0...
