Sunricher SR-2201DMX Manual

DMX512 Master CDW Wall Control Panel
Important: Read All Instructions Prior to Installation

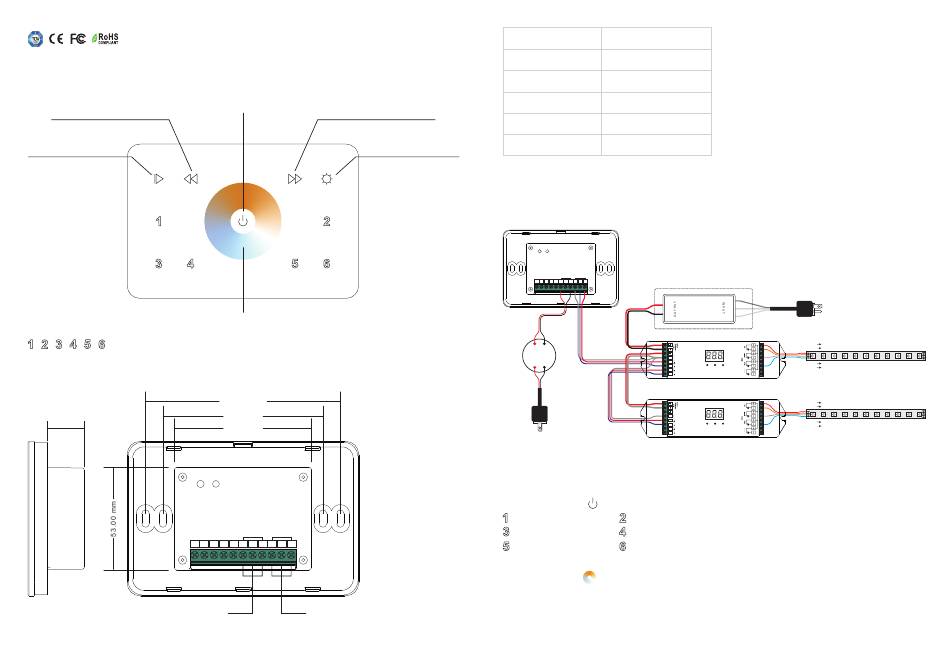

Function introduction
Click to switch on/off
Speed down, press and hold
down to decrease running speed
Kelvin running, click to
start running, click again
to pause
Color wheel, click or slide touch
to choose a color temperature
Save 6 colors, press and hold down to save the color/effect, click to recall the saved
19.50 mm
DMX512 Wall Panel Controller
DC Power input
Speed up, press and hold down
to increase running speed
Brightness up/down, press
and hold down to increase/
decrease light intensity
Front side
101.00 mm
83.00 mm
71.00 mm
DC INPUT DMX INPUT
V+ V+ V- D- D+
GND
DMX512 signal output
Back side
Product Data
09.2201I.04043
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DMX512 Wall Panel Controller
DC INPUT DMX INPUT
V+ V+ V- GND D- D+
12-24VDC
PSU
AC 100-240V
Operation
1. Set DMX Address
Set all DMX Decoder as DMX Address 001
2. Default setting colors
Press and hold down
100% Warm white
100% Natural white
100% Cool white
3. Save color
1)Touch color wheel
2)Press and hold down a target number over 3 seconds until LED light connected with the DMX decoder
flashes, the color is saved successfully, which will cover the default setting colors.
4. Recall the saved colors
Turn on the DMX master controller and click any of numbers of 1, 2, 3, 4, 5 and 6 to recall the saved colors.
• Touch sensitive
DMX512 signal
• Glass interface(white & black)
12-24VDC
• Standard DMX512 Signal output
• Control CDW color(all white color)
< 20 mA
• Waterproof grade: IP20
0-40°C
8% to 80%
120x80x29.2mm
L
V+
12V/24V/36V
N
CV PSU
V-
G
DMX512 Decoder
0-5 0-9 0-9
DMX512 Decoder
0-5 0-9 0-9
key to restore to default setting colors as follows:
50% warm white +50% cool white
50%Natural white +50% cool white
50% Cool white +50% warm white
to choose the color
AC 100-240V
V+ V+
WW- WW- Connect with CDW LED Strip
NW- NW-
CW- CW-
V+ V+
WW- WW- Connect with CDW LED Strip
NW- NW-
CW- CW-
