Summary of Contents for Swyx SwyxDECT 500

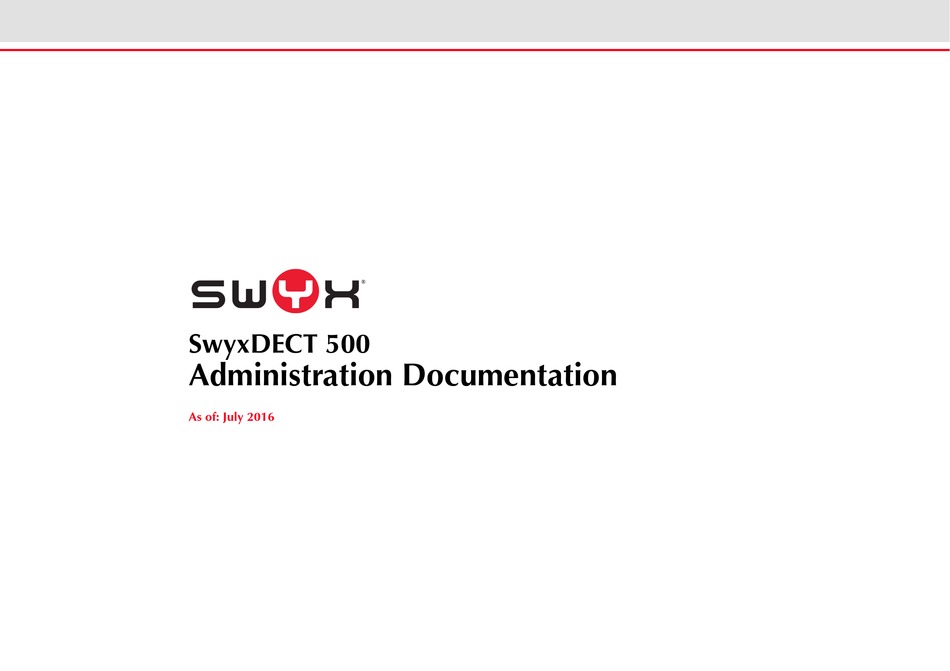

- Page 1 SwyxDECT 500 Administration Documentation As of: July 2016...
- Page 2 AG and/or its respective owners. This documentation is proprietary intellectual property of Swyx Solu- tions AG. Reproduction, adaptation, or translation of this documentation without the express written consent of Swyx Solutions AG is prohibited and will be prosecuted as a violation of intellectual property rights.
-
Page 3: Table Of Contents
1.5.2 Configuration of a multi-cell system ..........5 1.5.3 Settings at the webinterface ............6 1.5.3.1User ..................... 7 1.5.3.2Network..................11 1.5.3.3Management ................12 1.5.3.4Security..................14 1.5.3.5Global Phonebook ..............15 1.5.3.6Multicell..................15 1.5.3.7Log out..................16 ..16 Log on SwyxPhone D510/SwyxPhone D565 to SwyxDECT 500... -
Page 4: Swyxdect 500 System
Scope of supply SwyxDECT 500 System Installation The SwyxDECT 500 can be operated as a stand-mounted or wall-moun- Operation of a SwyxDECT 500 with SwyxWare ted system. Before mounting the station to a wall, the stand has to be This attachment describes the SwyxDECT 500 base station. -
Page 5: General Information On Swyxdect 500
LED lights up permanently. Starting the SwyxDECT 500 base station The SwyxDECT 500 is preset for the use of a DHCP server. When first switched on, it automatically obtains an IP address of a DHCP server. Status LED SwyxDECT 500 in a network with DHCP ... -
Page 6: Configuration Of A Swyxdect 500 Base Station
Configuration of a SwyxDECT 500 base station A SwyxDECT 500 must be configured so that it can be reached by Swyx- Server. Then, you can connect the DECT handsets with the SwyxDECT 500 base station and make calls via SwyxServer. -
Page 7: Configuration Of A Multi-Cell System
"admin" and "admin". In order to support Codec G.729, an optional module for the base station The home page of the web interface to configure the SwyxDECT 500 is required (one module per base station). The codec G.729 should be pla- base station opens. -
Page 8: Settings At The Webinterface
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station 1.5.3 Settings at the webinterface Add a new user.Weitere Informationen entnehmen Sie bitte dem Abschnitt How to add a new user, Seite 8. Select the "Multi-cell" option. Function Description Select "Activated" in the field "Multi-cell system". ... -
Page 9: 1User
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station Function Description Function Description Management Option to configure the base station for special Multicell Option to enter the parameters for configuring a functions, such as web interface language, log multi-cell system.Weitere Informationen entneh- management, etc.)Weitere Informationen entneh-... - Page 10 SwyxDECT 500 System Configuration of a SwyxDECT 500 base station How to add a new user Parameter Description Select the "Extensions" option in the menu bar. IPEI (International Portable Equipment Identifier) Serial Click on "Add extensions." number of the DECT handset.
- Page 11 SwyxDECT 500 System Configuration of a SwyxDECT 500 base station Servers Function Description Server Alias You can enter a name for the server which consists of 10 characters max. NAT Adaption When this option is activated, all SIP messages are forwarded directly to the NAT gateway on the SIP aware router.
-
Page 12: 2Network
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station Connect the repeater to a power socket. Function Description Press the button located on the repeater. RTP Packet Size The setting schoud be changed only after After a few seconds, the repeater's light will be light up in green. -
Page 13: 3Management
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station 1.5.3.3 Management Function Description The management settings are subdivided into the following areas: "Set- IP-adress Base station IP address tings", "Configuration" and "Syslog/SIP Log". Subnet mask Base station subnet mask. - Page 14 SwyxDECT 500 System Configuration of a SwyxDECT 500 base station Function Description HTTP management The server folder or the path where the upload script: configuration file is located. HTTP management Username for accessing the configuration username server HTTP management Password for accessing the configuration password server.
-
Page 15: 4Security
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station Configuration In the "configuration" area, you'll find a view of the configuration made During the update, all handsets must be placed in the charging station! in text form. Here, settings can be saved in a file (*.cfg) for later use. -
Page 16: 5Global Phonebook
SwyxDECT 500 System Configuration of a SwyxDECT 500 base station 1.5.3.5 Global Phonebook Enter password, as applicable. Click on "Save." Here, you can set the storage location for telephone book files being imported. Clicking on "load" imports telephone book files. -
Page 17: Log On Swyxphone D510/Swyxphone D565 To Swyxdect 500
SwyxDECT 500 System Log on SwyxPhone D510/SwyxPhone D565 to SwyxDECT 500 Select "Connections" with the navigation key and confirm with Function Description "Selection". Data Synch. DECT base stations are synchronized among Select "registration" and confirm with "selection." each other over the network. There are two Enter the 4-digits number (AC) and confirm with "OK". - Page 18 Index Index Add server 10 Mounting the base station 2 Add user 8 Optical state signaling 3 Central telephone book 15 Configuration 4 Single-cell 4 Power Supply 3 Configure Repeaters 10 configuring Repeaters 10 Configuration via *.cfg file 14 Reset to factory settings 3 Country 14 Multicell settings 15 Multi-cell system 5...
