Table of Contents:
Important Information . . . . . . . . . . . . . . . . . . . 2
Product Contents . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
KoiAir™ KA40
INSTALLATION INSTRUCTIONS
Changing the Air Filter. . . . . . . . . . . . . . . . . . . . .7
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . .8

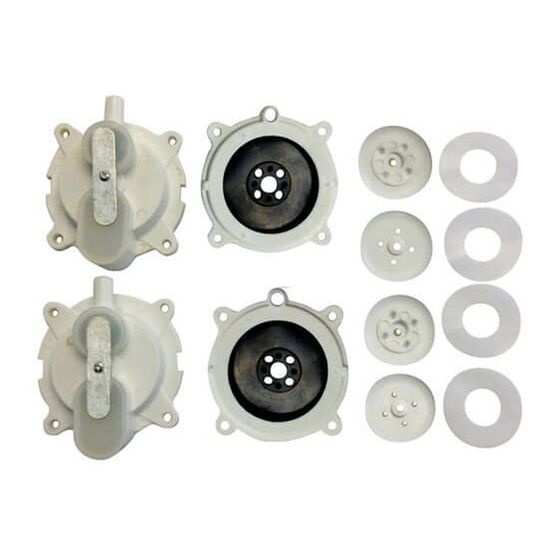

Diaphragm Compressor
Maintenance Kit
Item #510146
Advertisement
Table of Contents
Related Manuals for Airmax KoiAir KA40
Summary of Contents for Airmax KoiAir KA40

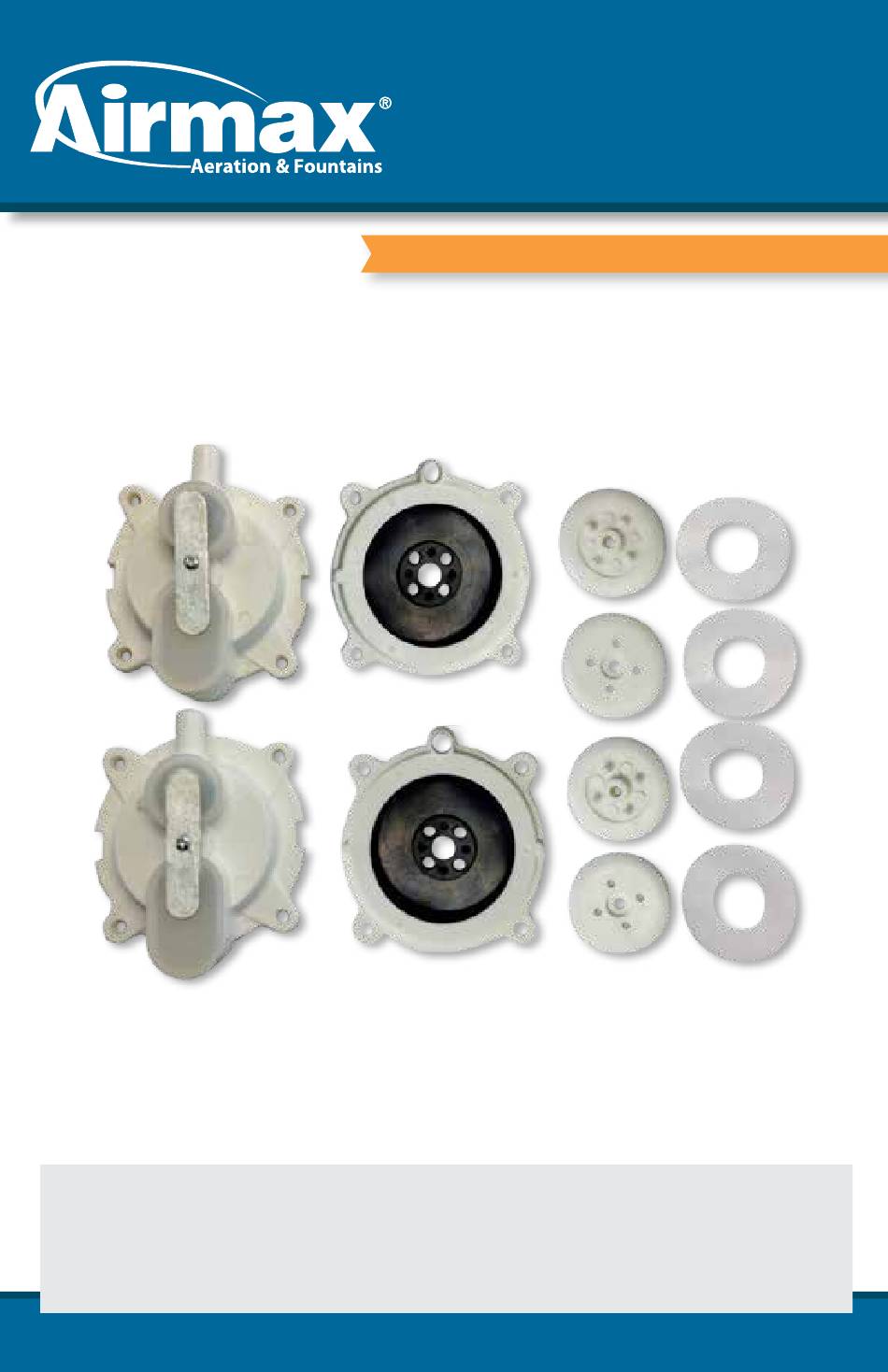

- Page 1 KoiAir™ KA40 Diaphragm Compressor Maintenance Kit INSTALLATION INSTRUCTIONS Item #510146 Table of Contents: Important Information ....2 Changing the Air Filter.....7 Product Contents .
- Page 2 • ALWAYS unplug the KoiAir™ compressor from the power source before installing, removing or servicing the KoiAir™ components. IMPORTANT: Airmax® is not responsible for equipment damage or failure, losses, injury or death resulting from failure to follow safety precautions, misuse or abuse of equipment.
- Page 3 INSTALLATION INSTRUCTIONS: See Video Instructions of the KoiAir™ (KA40) Diaphragm installation online at airmaxeco.com/InstallKA40 Tools Required: • Phillips Screwdriver • 7mm Nut Driver • Small Pick Tool Remove the Casing FLIP the compressor over and remove 4 screws securing the outer casing using a #2 phillips screwdriver, then separate the upper and lower casing.
- Page 4 INSTALLATION INSTRUCTIONS: Continued... Separate Diaphragms Use a small pick tool to separate the outer diaphragm from the inner diaphragm. Remove Center Ring REMOVE and save the center retaining nut and two washers using your 7mm nut driver. Remove Inner Diaphragm REMOVE the inner diaphragm including the diaphragm front boards and back boards.
- Page 5 Push Front Board into Place A Push the front board firmly into place and make sure the pegs come through evenly on the reverse side of the inner diaphragm. Place Metal Rings PLACE the two metal rings onto the inner diaphragm assembly.
- Page 6 INSTALLATION INSTRUCTIONS: Continued... Re-Install Outer Diaphragm RE-INSTALL the outer diaphragm assembly by matching up the notch on the assembly with the notch on the compressor motor and secure with the 4 assembly screws. Reconnect the Rubber Boot RECONNECT the rubber boot to the outer diaphragm assembly.
- Page 7 CHANGING THE AIR FILTER: Remove the Filter Cap REMOVE the air filter cap by pulling from the bottom edge first. Remove Filter REMOVE the worn air filter by pinching and pulling straight out. Replace the air filter with a new one by pressing new filter into place.
- Page 8 REPLACEMENT PARTS: DESCRIPTION PART # Airmax® KoiAir™ (KA40) Air Filters 510149 THANK YOU FOR CHOOSING: Airmax , Inc. ® Safe, Simple Solutions ™ P.O. Box 38 Romeo, MI 48065 866-424-7629 www.airmaxeco.com airmaxeco.com | 866-424-7629 | P.O.Box 38 | Romeo, MI 48065...
