K9 Partner
K9 Partner
Power Door Opener
Power Door Opener
Please read entire instruction manual prior to starting the
K9 Partner Power Door Opener System Installation.
Special Features and Applications
Easy to Open
Unlatch and open door - at the touch of a button.
Optional Transmitters
Large transmitters with large buttons can be ordered.
Extra Channels
Two extra channels are available at no extra cost to unlock other doors.
Range
Typical antenna range is 60-feet. Range can be increased using an optional external antenna.
Included
Proximity switch installed to disable ground to door unlatch motor.

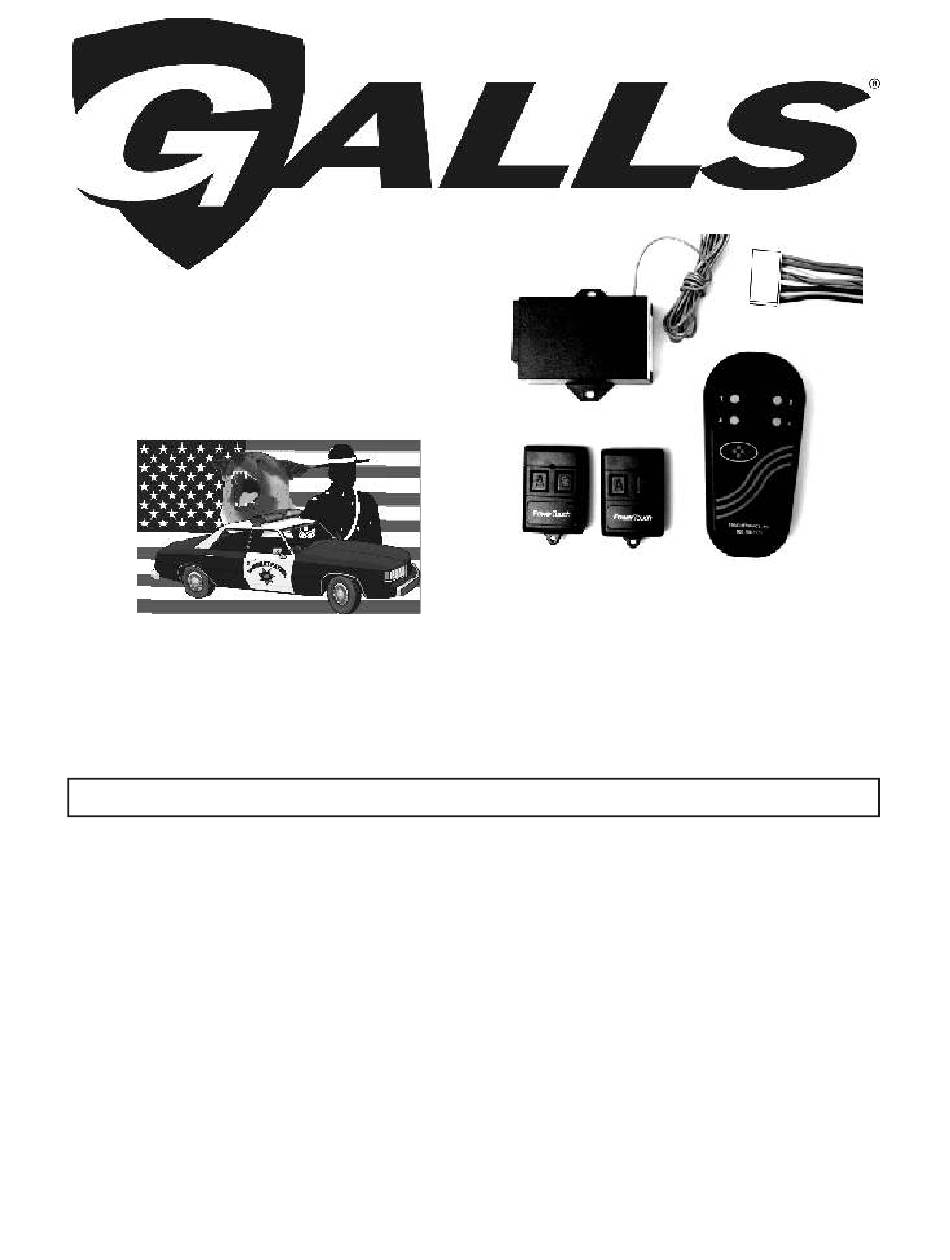

K9 Partner Power Door Opener Kit with PowerTouch Remote Control
814 PowerTouch Remote Control Receiver
With Two Key Chain Transmitters and
Shown With Optional Oval Transmitter
Drawing D840.N2 Rev 0 May 13, 2002
Page -1-
Manual C840.N2
Advertisement
Related Manuals for Galls K9 Partner
Summary of Contents for Galls K9 Partner
- Page 1 Typical antenna range is 60-feet. Range can be increased using an optional external antenna. Included Proximity switch installed to disable ground to door unlatch motor. Page -1- K9 Partner Power Door Opener Kit with PowerTouch Remote Control Manual C840.N2 Drawing D840.N2 Rev 0 May 13, 2002...
- Page 2 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Contents, Installation Tools, Technical Support Contents Special Features and Applications Page 1 Contents, Installation Tools, Technical Support Page 2 Specifications Page 3 Component Parts List Page 4, 5...
- Page 3 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Specifications 814 Receiver: FCC Approved RF System 6561 Digital Codes Voltage 12 Volt DC (available in 24 Volt DC) Output 300mA Frequency 303 MHz Range 60 Feet (typical - using standard 36” grey, wire style, antenna)
- Page 4 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Component Parts List 1 kit 8144M/2 814 PowerTouch Remote Control System 814R RF Receiver, 4 Channel w/36” antenna wire 1 set 814H Harness - 8 wire, 9” 2 pcs...
- Page 5 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Component Parts List 1 kit ACT.50N.RH 50 newton, right hand actuator 50 Newton Actuator BLT.840ACT #10 Bolt 2pcs SCW.840ACT #8 Screw CLP.840ACT Retaining Clip KPR.840ACT Rod Keeper ROD.840ACT Linkage rod BKT.840ACT...
- Page 6 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Operation: K9 Partner Remote Control Unlocking Rear Door Press button “A” to unlock rear door. When the radio frequency (RF) signal is received by the receiver, the relay (supplied) energizes the factory electric door lock mechanism and then unlocks the door.
- Page 7 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Planning, Continued On/Off Toggle Switch Select a place on the dash or console that is easily accessible and easily visible so that the status indicator light on the switch may be seen.
- Page 8 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Actuator and Linkage Rod 1) Locate the Door Latch Linkage Rod 2) Select mounting location for actuator. *Note: Actuator Rod MUST move in a linear (straight) direction, or parallel to the linkage rod.
- Page 9 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Gas Strut Diagram 9a Cross Section Top View Diagram 9b Side View Door Closed Door & Floor Brackets Vehicle floor ‘B’ Pilar Door Hinge Piston Floor Bracket 4”...
- Page 10 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Electrical - Receiver Power & Ground WARNING: Disconnect the main battery power of the vehicle before starting installation of this system. 1) Install Power Connect the Red wire to a constant +12v battery power source. Note: For best performance, run a clean +12v directly from the battery or a fuse that is NOT supplying any power to motors, lights or other high current devices, with the noted exception of the actuator supplied in this kit.
- Page 11 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Electrical - Door Open Circuit 3) Install Door Open Circuit - Maximum output is 300mA NOTE: Both button ‘A’ and ‘B’ can be wired so that either one will open the door.
- Page 12 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Safety Disable Switch WARNING! If using any type of motor, such as a window motor or a door lock motor - add a Disable switch to prevent the door or window circuit from operating when vehicle is in motion.
- Page 13 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Electrical - Door Unlock / Lock Circuit Diagram 13a Diagram 13b Positive Pulse System Negative Pulse System Button ‘A’ Button ‘A’ Door Unlatch Door Unlatch Lock Lock...
- Page 14 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Installation: Final Test 1) Turn power toggle switch to Off 2) Replace battery power to vehicle 3) Power toggle switch should be Off - no red light 4) Test remote control buttons a) Press remote control button ‘A’...
- Page 15 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Trouble Shooting Guide - K9 Partner Door Opener If a component such as the receiver, transmitter, actuator, or gas strut should fail; DO NOT remove the entire kit. Remove ONLY the failed component for repair or replacement.
- Page 16 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Trouble Shooting Guide - K9 Partner Door Opener Use a digital or analog voltmeter to check power and voltage! Do NOT use a test light Symptom Possible Cause Corrective Action 3.0 No power to remote...
- Page 17 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Trouble Shooting Guide - K9 Partner door Opener Symptom Possible Cause Corrective Action 5.0 Poor range 0’ to 25’ 5.2 Receiver installed in 5.2a Disconnect door and / or ramp motor and (pulsating 0’...
- Page 18 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Trouble Shooting Guide - K9 Partner door Opener Symptom Possible Cause Corrective Action 6.0 Actuator not working 6.1 No power or ground 6.1a Remove harness from actuator. Check at actuator voltage on green wire when button ‘b’...
- Page 19 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control Trouble Shooting Guide - K9 Partner door Opener Symptom Possible Cause Corrective Action 8.0 Actuator will not 8.1 Actuator does not 8.1a Install spring in parallel with actuator pull to...
- Page 20 Manual C840.N2 K9 Partner Power Door Opener System with PowerTouch Remote Control TouchTronics, Inc. Warranty Policies and Procedures The following revised warranty procedures will be implemented and effective March 1, 2002. 1) All products will now be shipped with an individual bar code attached.
