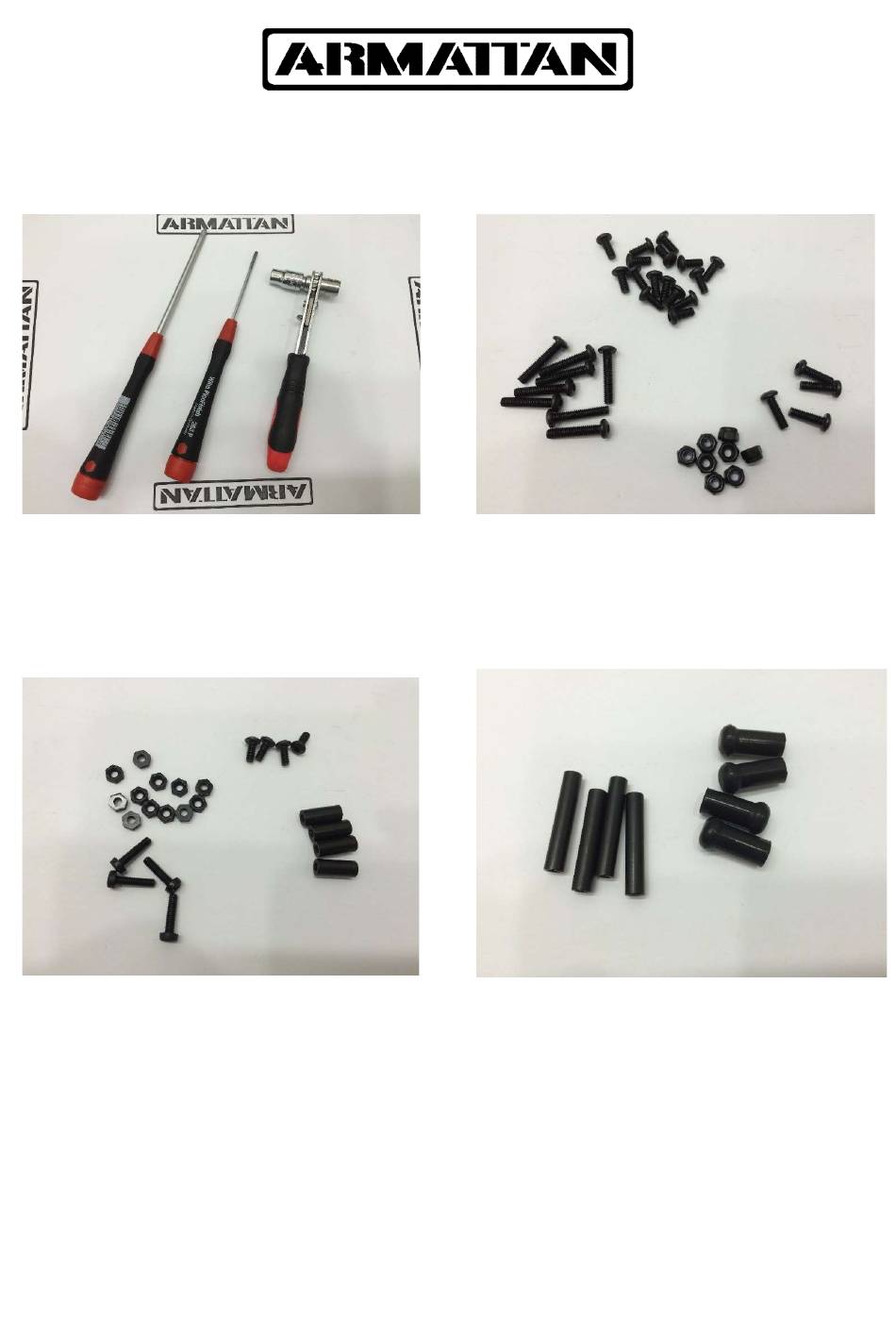

Tools Required
3mm Hex Driver
4mm Screw Driver
5.5mm Wrench or Socket & Ratchet
Controller Mounting Hardware
(4) M3 x 11mm Screws
(4) M3 x 4mm Screws
(12) M3 x 10mm Nuts
(4) 10mm Mount
CNC 355 Frame Assembly Guide
Parts List - Hardware
Frame Plate Assembly Screws & Nuts
(8) M3 x 13mm Hex Screws
(4) M3 x 7.5mm Hex Screws
(16) M3 x 4mm Hex Screws
(8) M3 Lock Nuts
Leg Mount & Rubber Boots
(4) 27mm Leg Mounts
(4) Rubber Boots
Advertisement
Related Manuals for Armattan CNC 355
Summary of Contents for Armattan CNC 355
- Page 1 CNC 355 Frame Assembly Guide Tools Required Parts List - Hardware 3mm Hex Driver Frame Plate Assembly Screws & Nuts 4mm Screw Driver (8) M3 x 13mm Hex Screws 5.5mm Wrench or Socket & Ratchet (4) M3 x 7.5mm Hex Screws...
- Page 2 CNC 355 Frame Assembly Guide – Page 2 Parts List – Carbon Fiber & Steel Components Cover Plate Base Plate (Top & Bottom) Steel Arms...
- Page 3 CNC 355 Frame Assembly Guide – Page 3 Assembly Instructions 1) Base Plate와 Steel Arm을 그림과 같이 조립한다. ※참고: Arm방향과 색상은 선택적으로 조립가능 (4) 27mm Leg Mounts + Rubber Boots (4) M3 x 4mm Screws (4) M3 x 11mm Screws...
- Page 4 CNC 355 Frame Assembly Guide – Page 4 Assembly Instructions 4) FC와 Distribution Board 조립 ※ 참고: FC와 Distribution Board는 Frame Kit에 포함되어 있지 않습니다. (4) M3 x 11mm Screws (4) M3 x 10mm Nuts Distribution Board FC + Distribution Board...
- Page 5 CNC 355 Frame Assembly Guide – Page 5 Assembly Instructions (FC + Distribution Board) + Base Frame (4) M3 Lock Nuts 7) Tilt Camera Mount와 본체 조립 8) 완성: 마지막으로 Cover Plate를 조립한다. (4) M3 x 4mm Screws...
