Summary of Contents for Trac-Rite 944
- Page 1 ROLLING CURTAIN DOOR MANUAL INSTALLATION • MAINTENANCE • PARTS Model 944 PHONE 800 448 8979 800 236 8722 WEBSITE www.tracrite.com EMAIL tr@tracrite.com ADDRESS 314 Wilburn Road Sun Prairie, WI 53590 This manual MUST be left with the owner...
- Page 2 Thank you for purchasing Trac-Rite’s model 944 door. The following is an instructional guide to take you through the steps of installing your new door. Be sure to read and understand this entire installation manual including the warnings, cautions, and notes before starting the installation of your new Trac-Rite door.
-
Page 3: Front View
Information contained in this document is copyrighted • Is the framed opening width and height the same by Trac-Rite and may not be duplicated in full or part size as the door ordered? (A x B) by any person without prior written approval of Trac- •... - Page 4 GENERAL ASSEMBLY LAYOUT 3. BRACKET AND GUIDE ASSEMBLY OUTSIDE 3.1 Position the guides and brackets inside the WALL WALL building on the floor near their mounting location. DOOR OPENING INSIDE DOOR NEST 3.2 Place the guides on the ground with the mounting holes facing the ground and the bent curtain lead-in up and toward the door opening (See Figure 2 for example of right hand guide).
- Page 5 CAUTION Use proper lifting equipment and correct lifting ALTERNATIVE FASTENERS procedures to avoid injury. 2) WOOD FASTENERS PER BRACKET 5/16” X 1 5/8” LAG BOLT (P/N 502860) 2) MASONRY ANCHORS PER BRACKET NOTE! 5/16” X 1 1/2” ANCHOR (P/N 508330) DO NOT LIFT BY THE GUIDES! They will bend and become unusable.
- Page 6 NOTE! HEIGHT up to: 7' 0" 10' 4" When installing multiple doors of the same size, confirm the first door is operates correctly and is 3' 0" properly tensioned and apply the same tensioning 3' 11" method to all doors. 4' 6"...
- Page 7 WARNING Immediately install keepers and door stops. These devices will prevent the door from rolling up out of the guides and possibly causing injury. DOOR AXLE ASSEMBLY NOT SHOWN FOR CLARITY 6. KEEPER AND TOP STOP ASSEMBLY BENT CURTAIN LEAD IN 6.1 Remove whiz nut from each side of door bottom bar (See Figure 7).
-
Page 8: Final Assembly
8. FINAL ASSEMBLY 8.1 Pull rope handle: Tie a knot in one end of the rope. Slide the plastic handle onto the rope and pull the knot up into the handle. Pass the other end of the rope through the hole in the center of the bottom edge of the door and tie another knot in the end to keep the rope from pulling through (See Figure 9). - Page 9 9. OPERATORS: 9.1 Direct-drive operator -- Direct drive chain hoists 9.2.3 Attach wall “L” bracket to main hoist body using can be installed on either side of the door, prior to or either supplied self tapping screw or bolt and nut after the door is hung (although there may be clearance supplied using an existing hole in the case.
-
Page 10: Adjusting Door Spring Tension
WARNING Components under extreme spring tension can cause SERIOUS INJURY or DEATH. Adjustments and repairs must be made by a qualified door mechanic using proper tools and instructions. Do NOT attempt to adjust door tension unless the door is in the “UP” position. Winding bar should be solid steel 1/2” diameter rod or 3/8” x 1/2” flat. 10. -
Page 11: Maintenance Inspection
12. OPTIONAL INTERIOR LOCK INSTALLATION 12.1 Position door at waist level. DOOR CURTAIN ASSEMBLY 12.2 Assemble components as shown in Figure 16, noting that two (2) high collar lock washers are placed over each 1/4” one-way screw to allow the lock bar to LOCK WASHER slide freely. - Page 12 Proprietary Notice Information contained in this document is copyrighted by Trac-Rite and may not be duplicated in full or part by any person without prior written approval of Trac-Rite. Its purpose is to provide the user with adequate detailed documentation to efficiently install a model 944 rolling curtain door.
Need help?
Do you have a question about the 944 and is the answer not in the manual?
Questions and answers

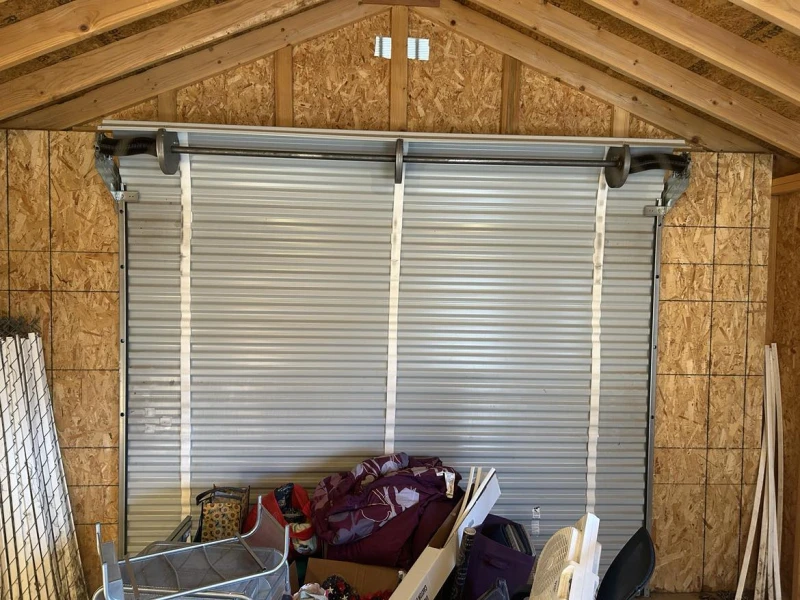

How to put an opener on Trac Rite 944
To install an opener (reduced-drive operator – 4:1 chain hoist) on the Trac-Rite 944 door:
1. Align the hole in the shaft extension with the axle hole.
2. Fasten the shaft extension using a 1/4" shoulder screw and a nylon insert stop nut.
3. Feed the hand chain through and around the pocket wheel.
4. Shorten the chain so it hangs 1 to 3 feet off the floor. Make sure there are no twists in the chain and close the loop.
5. Install the roller chain around the sprockets using the connecting link provided.
6. Attach the chain keeper clip to the wall 4 to 5 feet above the floor.
Ensure all adjustments are made with the door in the “UP” and “LOCKED” position. Only qualified personnel should perform adjustments.
This answer is automatically generated
