Table of Contents
Summary of Contents for Trekkrunner TR001

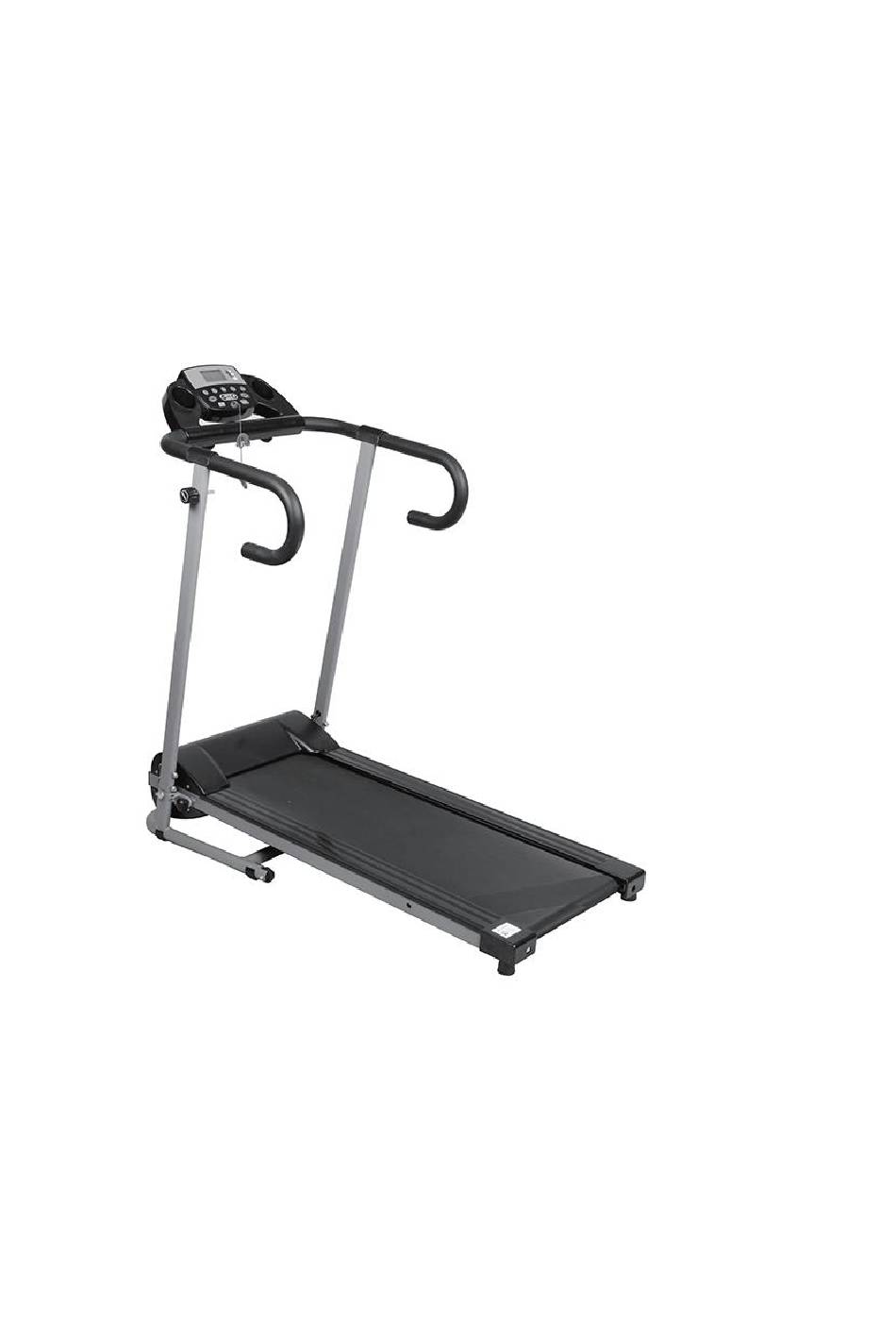

- Page 1 Motorized Treadmill...
- Page 2 INSTRUCTION CHART OF PRODUCT Control Panel...
-
Page 3: Motor Cover
Emergency Stop Switch Handrail Motor Cover Running Belt... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Please keep this manual in a safe place for easy reference. 1. It is important to read this entire instruction before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled,maintained and used properly. - Page 5 4. Keep children and pets away from the equipment. The equipment is designed for adult use only. 5. Use the equipment on a solid ,flat level surface with a protective cover for your floor,or carpet. To ensure safety,the equipment should have at least 0.5 meters of free space all around it.
-
Page 6: Assembling Instructions
your back. Always use proper lifting techniques and/or seek assistance if necessary. Assembling Instructions STEP 1 Open the carton, please confirm the product accessories is complete Accessories details: 1. Handrail decorative covers 2pcs 2. Lock screw M6X40 2pcs 3. Multi-purpose wrench 1pc 4. - Page 7 STEP 3 Screw into the spring pin STEP 4 Use M12X50 lock screw fix the handle frame on the base. STEP 5 Adjust Control panel location, screw-in M6X40 lock screw STEP 6 Put the handrails on the 2 columns, with four M8X50 screw fixed respectively, and put on a handrail decorative cover on the top of screws...
-
Page 8: Folding For Storage
STEP 7 Put the security magnetic safety switch into panel yellow area. STEP 8 Finish the assembly. FOLDING FOR STORAGE Please following the PIC 1,screws out the big Screw which fixed the base and handrail,and follow The PIC2,pull the “Spring Screws” which was fixed on PIC 1 PIC 2 The handrail pole gently,and then release “Spring Screws”. -
Page 9: Maintenance
Maintenance The belt may be cleaned by a mild soap and water. Be sure to remove any excess water after cleaning. Clean the running board under the belt periodically with a household furniture polish. After cleaning,a small amount of silicone spray(available from motor shops) should placed on the surface of the running board to allow the belt to slide more easily. - Page 10 TO LUBRICATE THE DECK ATTENTION! To reduce the risk of electrical shock, always remove the cable from the socket immediately after use and before cleaning. 1 - Raise the belt from the edge of one of the sides and clean the deck and belt by wiping a dry cloth over the deck and in internal surface of the belt.
-
Page 11: Control Panel
CONTROL PANEL Led Display Speed Selection Area... - Page 12 Mode Program Stop Start Speed Speed The Emergency Stop Switch Function Instruction 1. Insert the plug, put the safety key into the control panel, open the power switch, full screen display 1 second after the beep sound to enter standby. 2.
-
Page 13: Exercise Computer
0.50-1.00-1.50---99.5，each additional distance is 0.5km, DIST is count down until 0. 4. In the standby mode, click the program key, its P1-P12 auto program for choice, the time will show by count down, original time is 30：00, you can adjust the time from 5:00---99:00 by speed +/- key. 5. - Page 14 Speed Accumulates current speed. Distance Accumulates current working distance up to 99.99KM Calorie Accumulates calories consumption during exercise,Max value is 9999 Cal. (This data is a rough guide for comparison of different exercise sessions which cannot be used in Medical treatment) Note:1.Without any of signal for 4 minutes ,the LCD display will shut off automatically.
