Summary of Contents for Brahler SDI-MS16

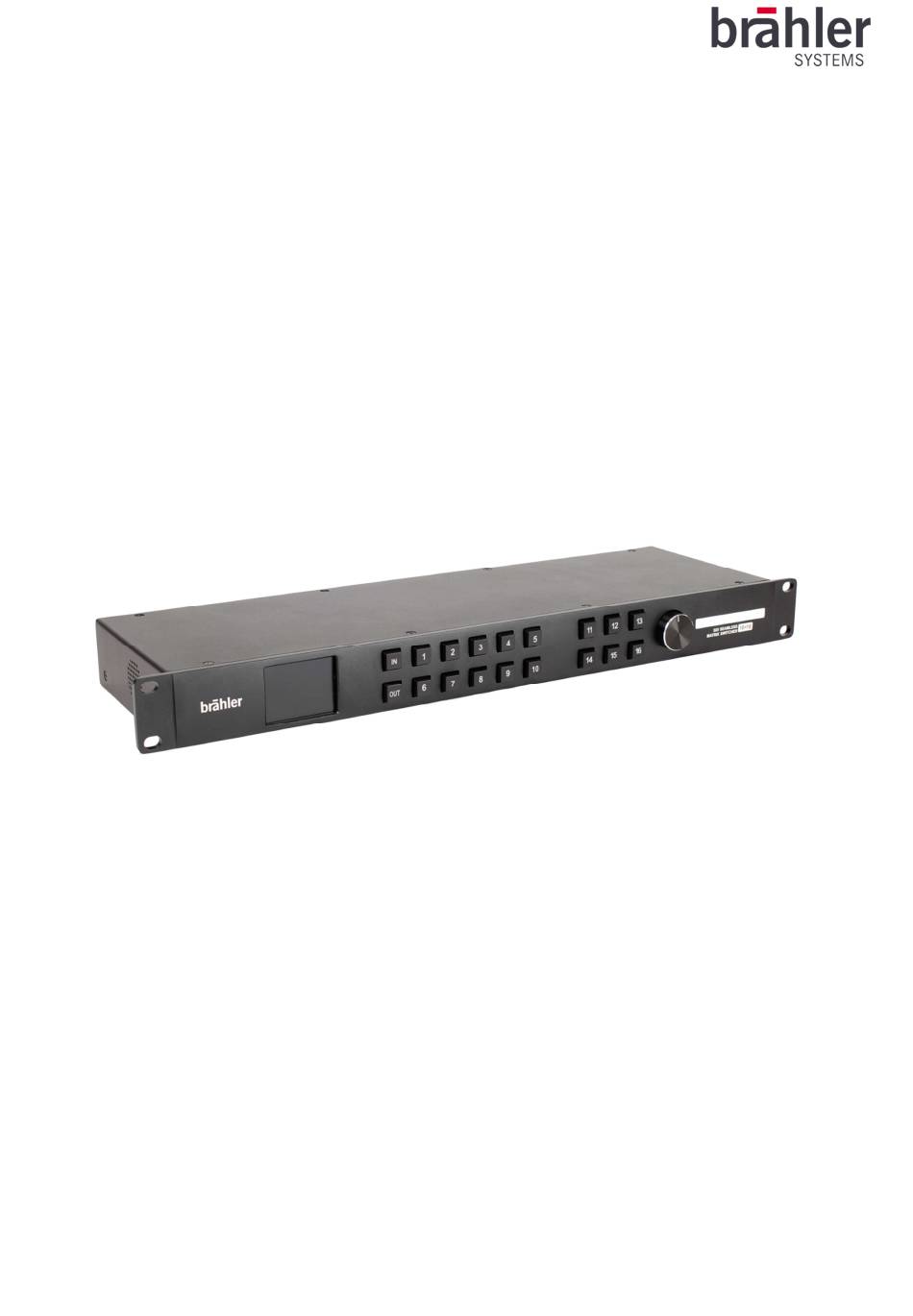

- Page 1 Operating manual SDI-MS16 Compact 1 RU 16x16 3G-SDI Seamless Matrix Switcher Article-No.: 07.3786...

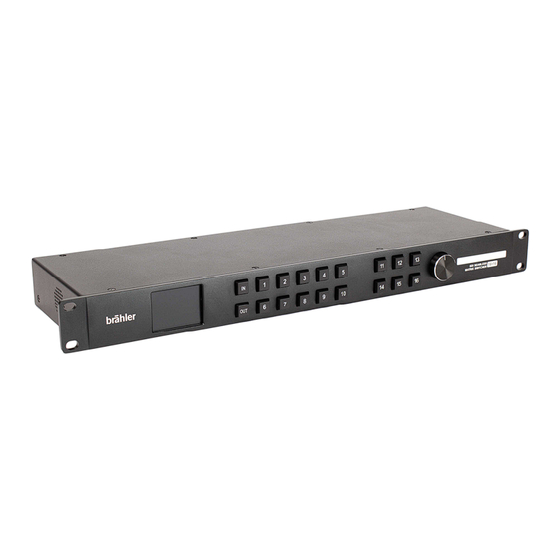

- Page 2 SDI-MS16 Video Switcher Operating manual Introduction and connections Introduction and connections Introduction and connections Introduction and connections This device is the perfect solution for seamlessly switching multiple PTZ cameras to get the best picture of the current speaker. The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections with a 2.2 inch LCD for routing label display.
- Page 3 SDI-MS16 Video Switcher Operating manual Sample connection diagram Connections Connections Connections Connections Make sure you have a suitable power supply. Connect the video switcher to a power source. Connect the desired number of cameras to the video switcher (IN) using the 75 Ohm SDI cable - camera 1 to input 1, camera 2 to input 2, and so on.
- Page 4 SDI-MS16 Video Switcher Operating manual By default the video switcher receives an IP address from the DHCP server within your network. Both brählerOS and CamControl2 will then be able to detect the video switcher automatically and identifies its IP address. If you have trouble in identifying the video switcher in the software, please make sure, that the IP address and subnet mask of the switcher is properly configured and matches with the control PC settings.
- Page 5 SDI-MS16 Video Switcher Operating manual Menu Control Menu Control Menu Control Menu Control Main Menu Main Menu Main Menu Main Menu Sub Menu Sub Menu Sub Menu Sub Menu Options Options Options Options Description Description Description Description Change the Language between Chinese and...
- Page 6 SDI-MS16 Video Switcher Operating manual Technical Data Technical Data Technical Data Technical Data Connections Connections Connections Connections SDI Video Input SDI Video Input SDI Video Input SDI Video Input Control Control Control Control Updates and Configuration Updates and Configuration Updates and Configuration Updates and Configuration 16×SD/HD/3G-SDI(75Ω...
- Page 7 SDI-MS16 Video Switcher Operating manual Warnings Warnings Warnings Warnings The connections of the video switch are exclusively designed and suitable for the intended cables and devices. Do not connect any other devices! In case of malfunctions, contact a technician, do not attempt to repair, unscrew or similar the video switcher yourself.
- Page 8 SDI-MS16 Video Switcher Operating manual Further information about our products can be found on the Internet under: www.braehler-systems.com © 2019 Copyright by BRÄHLER Systems GmbH, Königswinter All rights reserved, in particular (also in extracts) those of translation, reprinting, reproduction by copying or similar procedures.
