Winegard RK-2000 Quick Manual

Roof Mount Kit
Model RK-2000
For a complete list of compatible antennas,
visit www.winegard.com/mounts
For help, email help@winegard.com
or call 1-800-788-4417

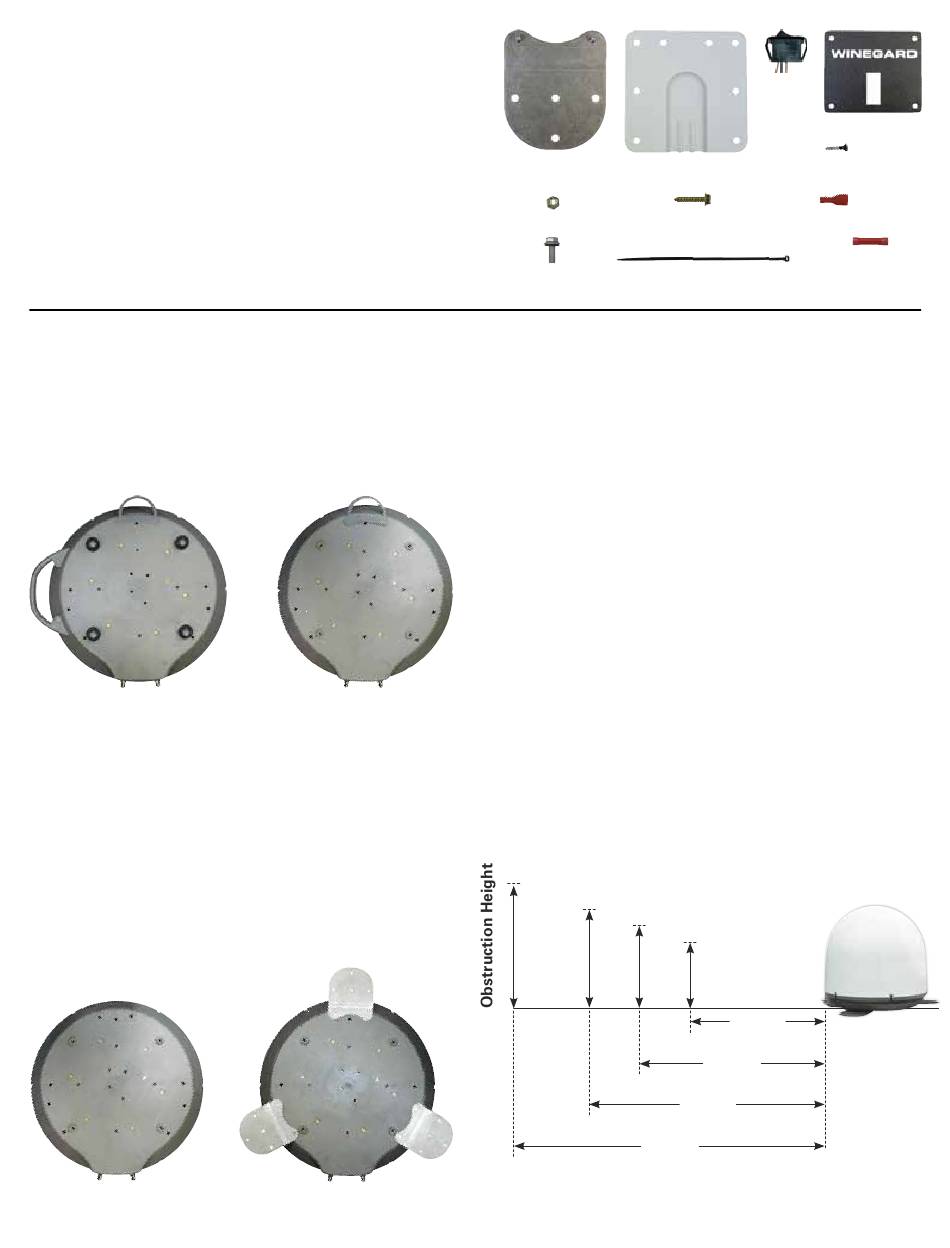

Installing the Mounting Feet

1. If the handle has been installed on the antenna, remove the
screws holding the handle to the antenna with a Phillips
screwdriver, and remove the handle.
2. Using a Phillips screwdriver, loosen and remove the feet from
the bottom of the antenna.
Bottom of antenna (before)
3. Remove the dome screws with a Phillips screwdriver, and
remove the dome.
4. Remove the two nuts holding the eyelet to the base with a 3/8
socket wrench, and remove the eyelet.
5. Insert the two threaded posts on a mounting foot through the
two holes from which the eyelet was removed, and thread a
hex nut onto each post.
6. Locate the other holes for the remaining two mounting feet;
once installed, the mounting feet should be equally spaced
around the base. Insert the two threaded posts on the other
two mounting feet through the corresponding holes in the
base, and thread a hex nut onto each post.
Bottom of antenna,
eyelet removed
Bottom of antenna (after),
handle and feet removed
Bottom of antenna,
mounting feet installed
Mounting foot (3)
Cable entry plate
Hex nut (6)
Dome screw (6)
7. Using a 3/8" socket wrench, tighten all hex nuts holding the
mounting feet to the base.
8. Place the dome back onto the base.
9. Align the holes in the dome with the holes in the base,
making sure that the antenna decal is centered above the
holes where the handle was previously installed.
10. Using the provided dome screws, insert a dome screw
through each aligned hole. Tighten.

Installing the Antenna

1. Do not attempt to install the antenna in the rain or under any
wet conditions. Install in dry conditions only.
2. For best performance and to reduce signal acquisition time,
park the vehicle on a level surface that is free of obstructions
such as trees or large buildings. Make sure you have a clear
view of the southern sky.
3. Select a level spot on your roof for installation. Level the base
front-to-back and side-to-side. If the base is not level, the
antenna may require more time to locate the correct satellite
or may not locate the correct satellite.
4. Ensure proper distance to other rooftop equipment is
maintained. Be sure no roof-mounted equipment is blocking
the satellite "line of sight"; see clearance requirements below.
15 in.
12 in.
10 in.
38.2 in.
Min. Distance to be Maintained from Antenna
Power
switch
Wall plate screw (4)
Mounting Terminal insulator (2)
screw (20)
Barrel crimp
Cable tie (2)
8 in.
16.7 in.
22.9 in.
29.0 in.
Wall plate
splice
2452315
Rev4 6-17
