BRI-TEK BRI0116 Installation

Product No: BRI0116

Installation

MAINTAINED
Dedicated AC Supply
N 1
N
L
2 L
+
+
3 L
Switched Switched
LED Driver
- 4 N
DC Out
-
+
+ 5
LED
- 6
Light
-
+
+ 7
LED
- 8
Indicator
-
Dedicate AC mains
Note: Some LED Luminaires come with a female connector to the light and a male connector to the driver. If this
is the case disconnect the male lead from 5 & 6 and the female lead from 3 & 4 on the terminal block, and
connect the male lead to 3 & 4 and the female lead to 5 & 6 on the terminal block.
Ensure the mains supply is isolated before attempting installation!

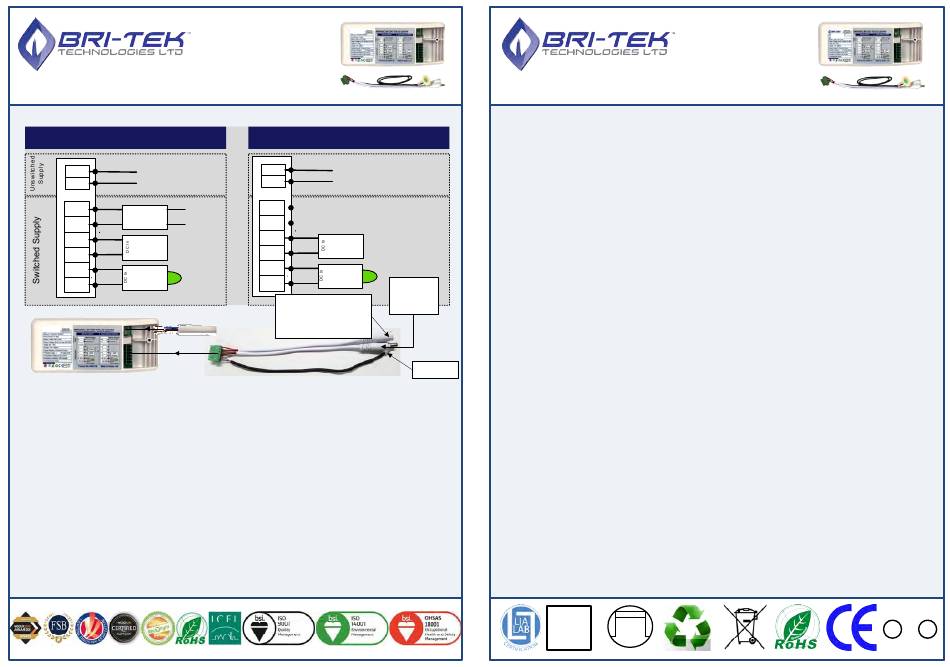

Please refer to the diagram above for mains supply, driver and lamp connections.
1 Remove the lid
2 Connect the AC supply to the battery (Connection points 1 and 2) on an externally fused supply
3 Connect the LED Indicator to the green (Connection points 7 and 8) 6 pin terminal block
4 Connect the DC side of the driver (for maintained) to the top adaptor lead (if supplied)
N.B. If no connector leads are supplied connect the driver directly to the Connection points 3 & 4
5 Connect the LED Luminaire to the middle lead (if supplied)
N.B. If no connector leads are supplied connect the LED and driver directly to the Connection points 5 & 6
6 Once wiring is complete, ensure the lid is fixed in place using the screw on the base. If external
plug and socket connectors are used without means to prevent accidental disconnection, the
remote box should be sited so that it is protected from unauthorised disconnection.
A recessed mount can be found inside the packaging carton to assist installation of the indicator LED. Once
installed, the indicator LED will be illuminated and the supply should be left undisturbed for a minimum of 24
hours to charge the batteries before attempting a commissioning test. After a successful test, the date should
be noted on the space provided on the battery. Commissioning should be recorded on the commissioning page.
EMERGENCY
BATTERY FOR
LED LIGHTING
For use with LED lighting only
NON MAINTAINED
Dedicated AC Supply
N
1 N
L 2 L
+
+
-
AC In
-
+
+ 5
LED
- 6
Light
-
+
+
7
LED
8
-
Indicator
-
Optional.
DC Connection to LED Driver.
For maintained supply where the
LED Light can be operated by a
light switch or sensor
Product No: BRI0116

Operation

Non-Maintained
The lamp is normally off and battery on automatic charge {green LED on) when the A.C. supply is healthy. Solid
state circuitry automatically switches the lamp on when the A.C. supply is interrupted.
Maintained
The lamp is normally on when the supply to the switched live is on. The battery is on automatic charge {green
LED on). Lamp will switch on or remain on if A.C. supply is interrupted.
Monitoring
The green LED indicator lamp will be on continuously. It will go out if A.C. supply or charger fails

Fault Finding and Corrective Action

1 Green LED indicator not illuminated: A.C. supply is not connected or battery not connected or the
Required
DC Connection
charger has failed.
to the LED
Light Fitting 2 Unit is not meeting the required emergency duration: The fitting may need cycling. Discharge then
recharge for full 30 hours. Retest. The battery may need replacing it emergency duration is still not
achieved.
Battery Replacement: (N.B. Replace with BRITEK BRI0116CELL only)
LED Indicator
1 Switch off the electricity at the mains
2 Allow batteries to fully discharge then reconnect to supply and allow charging for 30 hours
3 Test again for 3 hours, if light does not remain lit change the battery pack as follows:
a
b
c
d
e
f
g
h
I

Guarantee

This product is guaranteed for a period of 3 year from the date of purchase. (N.B. The battery Cell BRI0116CELL is guaranteed for 4 years from assembly date which is denoted by the batch code.)
The guarantee is invalid In the case of Improper use, tampering, removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the
I.E.E. Wiring Regulations BS7671). Should this product fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. We do not accept
responsibility for any installation costs associated with the replacement of this product Your statutory rights are not affected. We reserve the right to alter specifications without prior notice
EL
EMERGENCY
BATTERY FOR
LED LIGHTING
For use with LED lighting only
Remove the shell from the body by easing each of the 4 lugs off the body using a
5mm flat screwdriver
Unplug the battery lead from the circuit board
Remove the battery lead from the housing
Write current date on the new battery pack
Fit new battery pack into the housing
Plug battery back into circuit board
Refit the shell and press each of the 4 lugs to ensure they are fully located
Restore power and allow charging for 30 hours
Perform full operation check and update test record.
