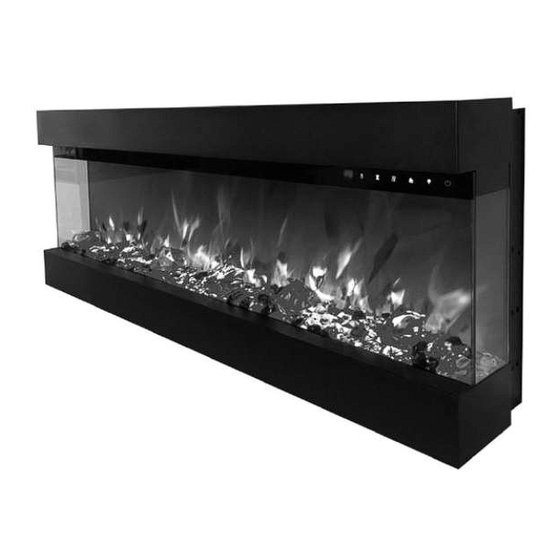

THREE SIDES VIEWING ELECTRIC FIREPLACE
LW3536
LW3543
LW3550
LW3560
LW3572
OWNERS MANUAL
36"/43"/50"/60"/72"Wall Mounted & Built-in
Electric Fireplace
AC 110-120V 60Hz 1400-1600 W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Advertisement
Table of Contents
Related Manuals for Regal Flame LW3536
Summary of Contents for Regal Flame LW3536
- Page 1 THREE SIDES VIEWING ELECTRIC FIREPLACE LW3536 LW3543 LW3550 LW3560 LW3572 OWNERS MANUAL 36"/43"/50"/60"/72"Wall Mounted & Built-in Electric Fireplace AC 110-120V 60Hz 1400-1600 W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this heater! This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear. - Page 3 ALWAYS turn this heater off before unplugging it from the outlet. ALWAYS disconnect this unit from the power supply before performing any assembly or cleaning, or before relocating the electric fireplace. NEVER leave this heater unattended. ALWAYS unplug this heater when not in use. ...
-
Page 4: Parts And Hardware
Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging or recessing use. -
Page 5: Installation And Assembly
PRODUCT DIMENSIONS Model Number 36.6" 19.1" 7.9" 35.5" 18.3" 10.1" 36.4" LW3536 93cm 48.4cm 20cm 90.2cm 46.56cm 25.61cm 92.57cm 43.3" 19.1" 7.9" 42.2" 18.3" 10.1" 43.1" LW3543 110.2cm 48.4cm 20cm 107.22cm 46.56cm 25.61cm 109.6cm 50" 19.1" 7.9" 48.9" 18.3" 10.1"... - Page 6 ( A ) STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) Framing Hole Size Model Number LW3536 35.9” (91.2CM) 18.84” (47.86CM) LW3543 42.71” (108.3CM) 18.84” (47.86CM) LW3550 49.29”...
- Page 7 ( B ) ( D ) ( E ) STEP D. Fix the metal brackets (F) to the BOTTOM and to the TOP of the fireplace box. Figure (D,E) NOTE: Metal brackets can be use as movable, please adjust to the best location as need...
- Page 8 STEP E. Have two adult people to lift of the fireplace box and put it inside of the wall opening hole. Using the screw driver to fix all wood screws and drywall anchors to through the metal brackets to the wall and fixing tightly. NOTE: Making sure that all screws and drywall anchors are well screwed.
-
Page 9: Wall Mounted Installation
E. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance. F. Check the appliance for stability ensuring that the bracket will not pull free from the wall. LW3536-50 Wall Bracket Illustrated 8... - Page 10 LW3560-72 Wall Bracket Illustrated G. Your Electric fireplace will be looks as below after installation...
- Page 11 Log-set / Crystal Ember Installation (NOTE:Please make the installation according to the embers which you bought orselected.) Glass front must be removed and the appliance must be mounted in its final location before the log-set / crystal /embers are installed. If your fireplace come with log-set, take the log-set out of the package and put it to the fireplace media slot .
-
Page 12: Methods Of Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a AC 110-120Volt outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). -
Page 13: Remote Control Operation
Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again. Flame effect turns off. Unit POWER remote control. - Page 14 Flame speed button:Controls the speed 1. Press once. Flame speed gets changing. of the flame.There are 3 flame speed 2. Press again until desired setting is settings: 01 (slowest), 02 (Medium), 03 reached. Display shows the setting. (fastest). SPEED The Default setting is 02 (medium speed) Touch-on Control Panel Operation BUTTON FUNCTION...
-
Page 15: Temperature Limiting Control
When the heater is first turned on, a slight odor may be present. This is normal and NOTICE should not occur again unless the heater is not used for a long period of time. To improve operation, aim the remote control at the front of the fireplace. DO NOT NOTICE press the buttons too quickly. -
Page 16: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. -
Page 17: Troubleshooting
Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Reset switch by turning main 1. Fireplace turns off 1. Fireplace has overheated and will not turn on. - Page 18 7. Heater does not 1. Thermal switch has been 1. Turn unit off and unplug unit provide heat when tripped. for 10 minutes. Plug back in and turned on. turn unit on. If plug cannot be reached, follow directions for tripped circuit breaker.
