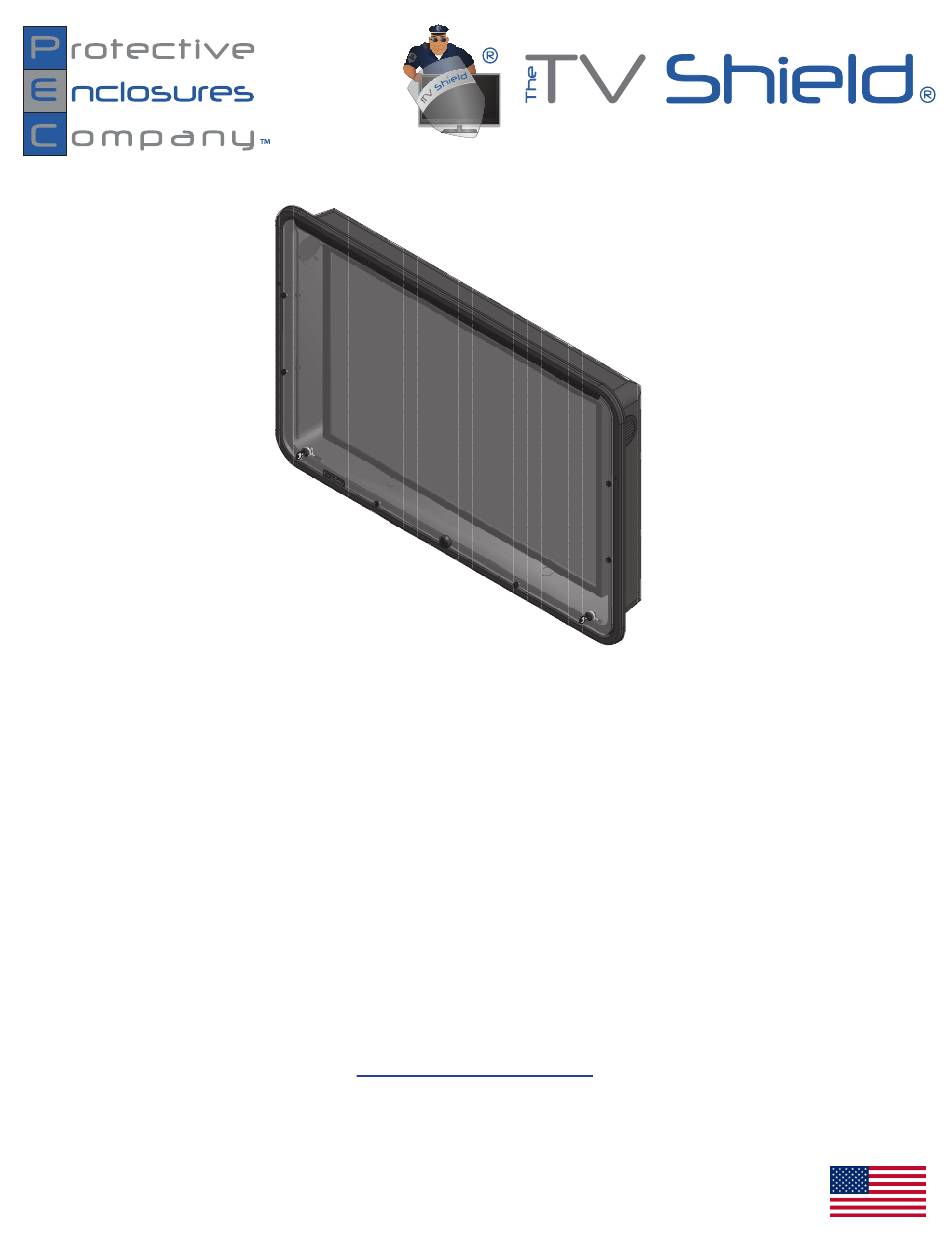

The TV Shield: Sizes 19-29" and 30-32"
Owner's Manual
Frequently Asked Questions
Assembly Instructions
Warranty Information
Manufacturer: Protective Enclosures Company
385 CenterPointe Circle, Suite 1319,
Altamonte Springs, Florida. 32701
1-800-331-2628
info@protectiveenclosures.com
www.thetvshield.com
Save this assembly manual for future reference in the event that you need to order replacement parts.
Made in the USA
INS-A-TVSHIELD-ENG 04/01/19
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The TV Shield and is the answer not in the manual?

Questions and answers

Related Manuals for Protective Enclosures Company The TV Shield

Summary of Contents for Protective Enclosures Company The TV Shield

  • Page 1 The TV Shield: Sizes 19-29” and 30-32” Owner’s Manual Frequently Asked Questions Assembly Instructions Warranty Information Manufacturer: Protective Enclosures Company 385 CenterPointe Circle, Suite 1319, Altamonte Springs, Florida. 32701 1-800-331-2628 info@protectiveenclosures.com www.thetvshield.com Save this assembly manual for future reference in the event that you need to order replacement parts.

  • Page 2: Frequently Asked Questions

    “alignment” system is integral to the structural rigidity and water-tight sealing of The TV Shield®. If the back of The TV Shield® is drilled incorrectly, it is essential that the incorrect hole(s) be repaired. As a courtesy to our customers, Protective Enclosures Company will provide rubber plugs to seal the holes. Please call our customer service department at 1-800-331-2628.
  • Page 3 Thank you for purchasing The TV Shield®. Please read the following before starting the installation process. The TV Shield® is designed to be used in conjunction with a TV wall mount, ceiling mount or any other mount using a VESA standardized mounting pattern (sold separately).

  • Page 4: Tools Required For Installation

    TOOLS REQUIRED FOR INSTALLATION These are the tools that are generally required for assembly of our products. These tools are not included with the product purchase, nor included in the box. You will need to use the hardware from a separately sold TV wall or ceiling mount.

  • Page 5: Parts Identification

    PARTS IDENTIFICATION Included in Box (1) The TV Shield (4) Foam Blocks for Mounting (2) Prop Arms ® (1) Small black drawstring bag (Keep for caps when removed) with: (1) Mounting Hole Template (4) Extra Knurled Caps, (4) Keys, (1) 1 ”...
  • Page 6 STEP 1 **Read all of the assembly tips for each step thoroughly. The written tips may include important information that is not shown in the illustrations. 1. Remove the knurled caps as shown in the image below. CAP - KNURLED - BLK .25X.50 STEP 2 1.
  • Page 7 STEP 3 1. Arrange the foam blocks on the ground and then place the TV face down on them, as shown in the diagram. 2. Pick the correct size screw that your TV uses by either checking the owner’s manual or by taking the provided threaded screws from your separately sold mount and screwing them into the mounting holes located on the back of your television.
  • Page 8 **ACCURACY OF THE MEASUREMENTS IS HIGHLY IMPORTANT FOR PROPER ASSEMBLY OF THE UNIT. 2. Drill holes in the back of The TV Shield® at the location marked on the template using the drilling schedule below which is based on the threaded stud size you...

  • Page 9: Plain Washer

    3. Place The TV Shield® directly over the TV (and foam blocks) and align the previously drilled holes with the mounting holes in your TV by looking through the drilled hole and lining them up. Using a flashlight in this step may be helpful.
  • Page 10 STEP 8 1. For storage, snap the prop arms into the clips on both side-walls of the unit. 1) The bent end of the prop arm See installation points in diagram for prop arms when in use. goes into the furthest hole 2) Insert the straight end of the prop arm into the prop arm support...
  • Page 11 CAP - KNURLED - BLK .25X.50 (6 pieces) Fan Install: Vent Cap Exterior of enclosure STEP 12 1. Mount the TV, enclosed within The TV Shield® as one unit, according to the TV mount instructions provided with your mount (sold separately).

  • Page 12: Cleaning Instructions

    Compatible Cleaners for Polycarbonate Plastic: The following cleaning agents have been found to be compatible with polycarbonate (the manufacturer’s instructions should be followed): • The TV Shield recommended cleaners (found on our website at www.thetvshield.com) ® • Formula 409™ (Clorox Co.) Top Job™ (Proctor and Gamble) •...
  • Page 13 • Purchasing an enclosure with anti-glare or installing our anti-glare front panel will reduce the glare to an extent, but does not eliminate it. • Mount The TV Shield in an area that does not get direct sun if possible.
  • Page 14 The purchaser is required to send the product back to Protective Enclosures Company or to a designated repair center and the purchaser is responsible for all charges for shipping and handling.
  • Page 15 OR PARTNER BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY EXPRESS OR IMPLIED WHATSOEVER. No person or representative is authorized to assume for Protective Enclosures Company, LLC any liability other than expressed herein in connection with the sale of this product. Some jurisdictions do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you.

  • Page 16: Limited Warranty

    (minus all fees). After 30 days, and up to 90 days from the date of the purchase, if you are not happy with The TV Shield® enclosure, and have opened it, you can return it for a refund, less actual shipping charges to and from Protective Enclosures Company.
  • Page 17 Protective Enclosures Company CenterPointe Circle, Suite 1319, Altamonte Springs, Florida. 32701 1-800-331-2628 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.thetvshield.com...

  • Page 18: Climate Control

    This quick install cover is ideal for those times when you TV solutions. This means that light reflecting off of a TV or are not going to use your TV or The TV Shield. display can easily hinder viewing clarity. PEC has developed an innovative anti-glare coating process for shatter-resistant 1.
  • Page 19 Two 10ft high speaker ables Call 1-800-331-2628 or Visit www.thetvshield.com to Order Copyright © 2009-2019 Protective Enclosures Company, LLC | Made in the USA The TV Shield®, The Display Shield® and The TV Shield Pro® and their logos are trademarks of Protective Enclosures Company...
